Eaton CL220 Thermal Magnetic Circuit Breaker - UL489
Part Number: CL220
Quick Summary
The Eaton CL220 thermal magnetic circuit breaker protects CH-loadcenter circuits in residential and light commercial panels. Replacing legacy breakers without compatible form factors or trip characteristics can lead to outages and safety concerns. UL 489 certification underpins safety, the unit offers a 10 kAIC interrupt rating, and it is a 1-inch classified replacement designed to fit two spaces in CH load centers. Designed for reliability and ease of procurement, it pairs with Eaton CL load centers and CH panels, delivering consistent protection with streamlined maintenance.
Product Information
Extended Description
CL220 Eaton: Eaton Classified 1" thermal magnetic circuit breaker, Type CL 1-Inch classified replacement breaker, 20 A, 10 kAIC, two-pole, 120/240V, CL, common breaker trip, #14-4 AWG Cu/Al, CL, Type CH loadcenters
Product Name

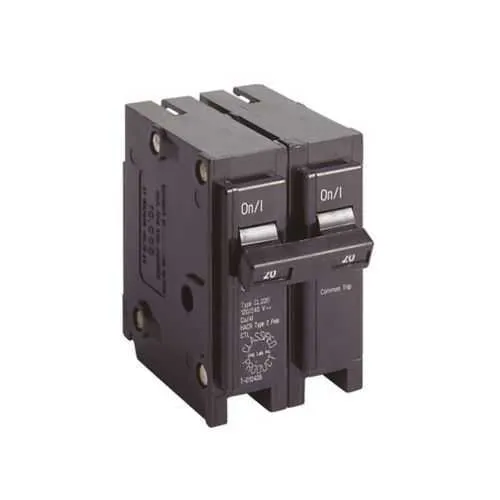

Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CL220
UPC
786676011631
Product Length/Depth
1.8 in
Product Height
2.5 in
Product Width
2 in
Product Weight
0.5 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker
Amperage Rating
20 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL220
The 1-Inch classified CL220 occupies two spaces in CH load centers, delivering a compact solution that simplifies panel layout and reduces mounting complexity. This translates to faster installations, lower labor costs, and improved overall panel organization for electrical contractors working on retrofit projects. The two-pole, common-trip design coordinates protection across paired circuits, reducing the risk of nuisance trips and improving fault isolation in dense residential and light commercial distributions. With a 20 A rating and 120/240 V operation, the CL220 protects standard branch circuits while remaining compatible with typical wiring such as #14-4 AWG Cu/Al, enabling straightforward field terminations and reliable performance. Its 10 kAIC interrupt rating provides robust fault current handling in moderate commercial environments, supporting safer retrofits and compliant panel operation. The CL220 is positioned as a versatile replacement for multiple legacy devices, simplifying stocking and procurement for service teams. Compatibility with Type CH load centers helps ensure quick, vibration-free installations and consistent protection in Eaton’s CL family. Industry professionals value the CL220 for predictable trip characteristics, reduced inventory, and reliable performance in everyday electrical distribution tasks.
