Eaton CL220CS Circuit Breaker - 10 kAIC UL 489
Part Number: CL220CS
Quick Summary
The Eaton CL220CS circuit breaker delivers reliable thermal-magnetic protection for CH load centers used in commercial and light-industrial panels. When you replace aging gear, exact form factor, rotation, and cross-brand compatibility are critical to avoid panel rework. UL 489 certification and classification as a CH load-center replacement help ensure safe, code-compliant operation. With 20 A at 120/240 V and a two-pole, common-trip configuration, it fits a broad range of circuits. This clamshell-pack solution simplifies stocking and installation, reducing downtime and enabling faster repair cycles. It is a replacement for multiple OEM breakers, including cross-reference to Square D Homeline and GE THQ, saving inventory variety. Designed for CH load centers requiring two 1-inch spaces, it supports straightforward installation with standard grounding and wiring practices.
Product Information
Extended Description
CL220CS Eaton: Eaton Classified 1" thermal magnetic circuit breaker, Type CL 1-Inch classified replacement breaker clamshell pack, 20 A, 10 kAIC, two-pole, 120/240V, CL, Common breaker trip, #14-4 AWG Cu/Al, Q30, CL, Type CH loadcenters
Product Name

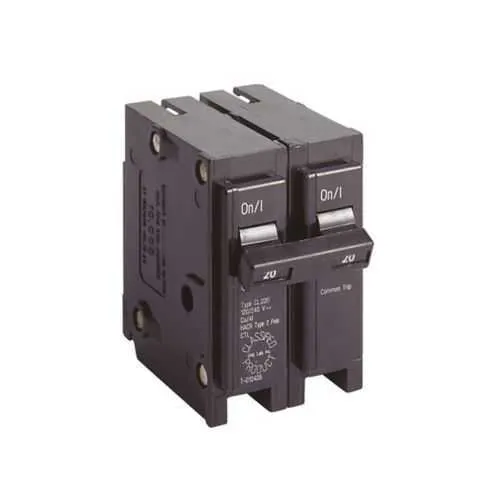

Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CL220CS
UPC
782114753064
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.48 in
Product Weight
2.18 lb
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
20 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL220CS
Feature: Classified 1-Inch replacement breaker in a clamshell pack. Business Impact: Simplifies inventory management and enables faster, error-free replacements in the field. Application: CH load centers and retrofit projects where space is constrained and cross-brand compatibility is valuable. Feature: Two-pole, 20 A, 120/240 V operation with common-trip. Business Impact: Coordinated protection across linked circuits reduces nuisance trips and simplifies wiring schemes. Application: Commercial panels serving lighting and receptacle circuits where simultaneous disconnection is required. Feature: 10 kAIC interrupt rating. Business Impact: Higher fault-current capability minimizes equipment damage risk in demanding environments. Application: Industrial control panels and service entrances with elevated fault currents. Feature: Cross-brand compatibility notes (replacement for brands like Square D Homeline, GE THQ, Crouse-Hinds MP, etc.). Business Impact: Reduces spare-part variety, lowers maintenance costs, and streamlines procurement. Application: Mixed-portfolio facilities needing flexible replacement options. Feature: Wire size compatibility (#14-4 AWG Cu/Al). Business Impact: Directly supports common feeder wiring without additional adapters. Application: Control panels and branch-circuit wiring in CH load centers. Feature: Space-efficient design requiring two 1-inch panel spaces. Business Impact: Improves panel planning and enables use in tighter installations. Application: Retrofit jobs and new builds with strict enclosure dimensions.
