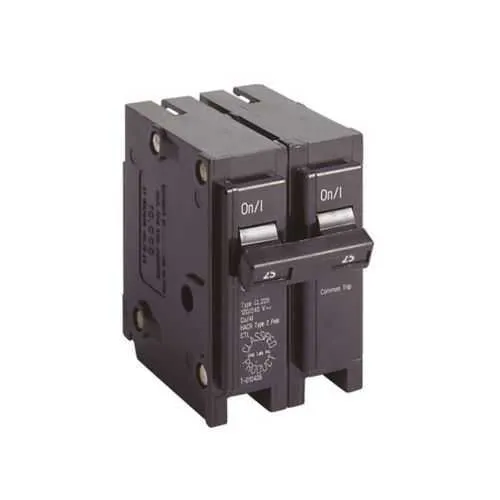

Eaton CL225 Classified 1" Circuit Breaker - UL 489
Part Number: CL225
Quick Summary
Eaton CL225 Classified 1" thermal magnetic circuit breaker protects CH load centers and residential electrical panels. When retrofitting or replacing aging equipment, finding a compatible, safely rated unit can reduce downtime and risk. It carries UL 489 certification, delivering recognized electrical safety, and its CL classification enables interchangeability with common panel families in the field. This CH-loadcenter compatible design helps you standardize protection across sites, while a robust 25 A rating and 10 kAIC interrupt rating support reliable, code-compliant performance in commercial and light-industrial environments. By selecting this replacement breaker, you simplify procurement and improve maintenance workflows for ongoing project value in electrical protection and circuit control.
Product Information
Extended Description
CL225 Eaton: Eaton Classified 1" thermal magnetic circuit breaker, Type CL 1-Inch classified replacement breaker, 25 A, 10 kAIC, two-pole, 120/240V, CL, common breaker trip, #14-4 AWG Cu/Al, CL, Type CH loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CL225
UPC
786676011648
Product Length/Depth
1.9 in
Product Height
2.5 in
Product Width
2 in
Product Weight
0.5 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker
Amperage Rating
25 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL225
Feature: Classified 1-inch form factor with a common-trip design. Business Impact: Enables true interchangeability with legacy panel fleets, reduces spare-part inventory, and speeds on-site replacement. Application: Ideal for CH load centers and other two-space enclosures where a compact, coordinated trip breaker is required to minimize downtime during maintenance windows. Feature: 25 A amperage rating and 120/240 V operation, paired with a 10 kAIC interrupt rating. Business Impact: Provides reliable overcurrent protection for typical residential feeders and small commercial circuits while delivering rapid fault clearing to protect valuable equipment. Application: Fits standard CH protection schemes and supports code-compliant protection in mixed-use facilities. Feature: Replacement for common legacy breakers (Square D Homeline, GE THQ, Crouse-Hinds Type MP, Thomas and Betts TB, Murray Type MP, ITE/Siemens Type QP). Business Impact: Streamlines procurement, reduces stocking complexity, and speeds retrofit projects. Application: Enables quick, compatible substitutions in fleets migrating to a unified Eaton CL series approach. Feature: UL 489 certification for electrical safety and compliance. Business Impact: Reduces risk during inspections and simplifies pre-approval for critical circuits. Application: Suitable for commercial and industrial environments where UL-listed protection is required. Feature: Wiring and mounting specs: #14-4 AWG Cu/Al, two-pole configuration, two spaces required in the panel, Type CH load centers. Business Impact: Ensures proper termination, safe clearance, and reliable operation. Application: Works with CH load centers in varied installations while maintaining code-compliant installation practices.
Get a Quick Quote for a Eaton CL225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CL225?
Enquire Now
FAQs
The CL225 is designed as a classified replacement for Type CH load centers and is listed as compatible with common panel families in field notes. It supports two-pole CH configurations, with #14-4 AWG Cu/Al wiring, enabling straightforward retrofits across residential and light commercial installations.
The CL225 provides a 25 A amperage rating and a 120/240 V voltage rating. This combination supports typical residential branch circuits and small commercial feeders, while preserving a common-trip design for coordinated protection in multi-wire branch circuits.
Yes. The product catalog notes identify CL225 as a replacement for Square D Homeline, GE THQ, and other brands, provided the installation matches CH load centers and two-space panel configurations. Always confirm the compatible enclosure type and space requirements before replacement.
Install in CH load centers using two 1-inch spaces. Supports #14-4 AWG Cu/Al conductors and requires a common trip for multi-pole protection. Confirm the panel's labeling and ensure the breaker is aligned with the bus stabs for reliable operation.
The CL225 carries UL 489 certification for safety and electrical protection conformity. As a classified replacement, it is intended for interchangeability within CH load centers, offering code-compliant performance for residential, commercial, and light-industrial applications.
