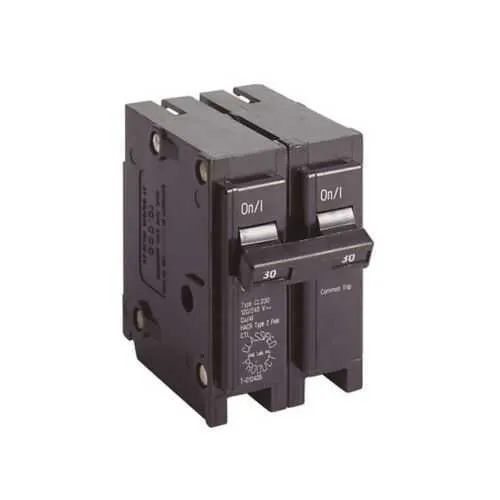

Eaton CL230CS Thermal Magnetic Circuit Breaker - UL 489
Part Number: CL230CS
Quick Summary
Eaton CL230CS Thermal Magnetic Circuit Breaker protects CH load centers in electrical panels. This 1-Inch classified replacement device is designed to fit existing spaces and wiring of established panel lineups without triggering compatibility issues. UL 489 certification confirms safety and performance for critical industrial and commercial installations. With a two-pole 30 A rating at 120/240 V and a robust CL cross-reference, it supports reliable, code-compliant protection in new builds and field upgrades. The clamshell packaging and cross-brand compatibility streamline stocking, reduce downtime, and simplify procurement for maintenance teams working across Eaton, Square D Homeline, GE THQ, and similar systems. It supports reliable, long-term service life.
Product Information
Extended Description
CL230CS Eaton: Eaton Classified 1" thermal magnetic circuit breaker, Type CL 1-Inch classified replacement breaker clamshell pack, 30 A, 10 kAIC, two-pole, 120/240V, CL, Common breaker trip, #14-4 AWG Cu/Al, Q30, CL, Type CH loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CL230CS
UPC
782114753071
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.48 in
Product Weight
2.18 lb
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL230CS
Feature: Clamshell pack packaging. Business Impact: Safer handling, reduced shipping damage, and clearer kit assembly in the field. Application: Type CL 1-Inch classified replacement breaker for CH load centers, enabling faster field upgrades and easier inventory control. Feature: Two-pole, 30 A configuration. Business Impact: Provides robust overload protection for general circuits while maintaining compact panel space. Application: Common in lighting and branch circuits in CH load centers, reducing nuisance trips and improving uptime. Feature: 120/240 V operation with 10 kAIC interrupt rating. Business Impact: Higher fault-current tolerance supports critical loads and enhances safety margins in both commercial and light industrial settings. Application: Suitable for feeders and mixed-load panels where surge tolerance matters. Feature: Compatibility with multiple brands (Square D Homeline, GE THQ, etc.). Business Impact: Simplifies cross-referencing, lowers spare-part inventories, and accelerates procurement. Application: Service teams that support mixed-brand installations. Feature: Catalog Notes indicating cross-compatibility and two-space requirement. Business Impact: Clear field guidance reduces misfits and installation errors. Application: Quick integration into existing CL CH load center configurations and legacy panel upgrades.
