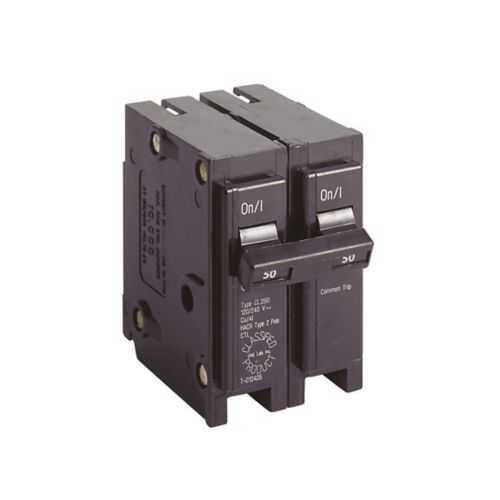

Eaton CL250 Circuit Breaker - UL 489 Classified
Part Number: CL250
Quick Summary
Eaton CL250 circuit breaker delivers reliable 2-pole thermal-magnetic protection for CH loadcenters in commercial and residential panels. Replacing legacy hardware can be time-consuming and risky without a precise, compatible replacement. UL 489 certified, rated for 120/240 V and 50 A with a 10 kAIC interrupt rating, this classified breaker is designed as a direct replacement for common SKUs across brands. It supports Type CH Loadcenters and copper or aluminum conductors, including #14-4 AWG, and requires two 1-inch spaces. In practice, the CL250 streamlines upgrades, reduces downtime, and ensures code-compliant protection in mixed electrical environments. Engineered by Eaton, it supports consistent maintenance, simplified stocking, and clear procurement paths for OEMs and electrical contractors.
Product Information
Extended Description
CL250 Eaton: Eaton Classified 3/4" thermal magnetic circuit breaker,Type CL 1-Inch classified replacement breaker,50 A,10 kAIC,Two-pole,120/240V,CL,Common breaker trip,#14-4 AWG Cu/Al,CL,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CL250
UPC
786676011693
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.5 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker
Amperage Rating
50 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL250
Feature: Two-pole, 50 A, 120/240 V with common trip. Business Impact: Ensures coordinated fault interruption across both poles, reducing arc flash risk and boosting panel reliability. Application: Ideal for CH Loadcenters in residential and light commercial installations. Feature: Classified replacement for Type CL 1-Inch, requires two 1-inch spaces. Business Impact: Enables retrofit in legacy panels without significant enclosure modification, reducing retrofit costs and downtime. Application: Use in two-space installations where classified replacement breakers are specified. Feature: 10 kAIC interrupt rating and UL 489 certification. Business Impact: Delivers robust fault-current protection and regulatory compliance for demanding services. Application: Suitable for circuits with higher fault currents in modernized electrical rooms. Feature: Wire size compatibility #14-4 AWG Cu/Al. Business Impact: Supports copper and aluminum wiring without separate adapters, simplifying procurement and stocking. Application: Residential feeders and light commercial branch circuits. Feature: Brand-compatible replacement for multiple SKUs and CH Loadcenters. Business Impact: Streamlines procurement, reduces part proliferation, and improves maintenance planning. Application: Retrofit projects across brands like Square D Homeline, GE THQ, and similar classified systems. Feature: Warranty and installation notes. Business Impact: Provides confidence in long-term serviceability and predictable support timelines. Application: Field upgrades and new installations requiring a reliable, standards-aligned component.
Get a Quick Quote for a Eaton CL250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CL250?
Enquire Now
FAQs
The CL250 is designed as a classified replacement for Type CH Loadcenters and supports Cu or Al conductors up to #14-4 AWG. It is compatible with legacy SKUs including replacements for Square D Homeline and GE THQ, and it requires two 1-inch spaces in the enclosure. Ideal for residential and light commercial panels seeking a single, standards-aligned retrofit.
Begin by confirming the enclosure requires a classified two-space CL replacement. Remove the existing breaker, verify conductor sizes (#14-4 AWG Cu/Al), and install the CL250 so that both poles switch together (common trip). Ensure UL 489 compatibility and secure the wiring per NEC guidelines. This approach minimizes downtime and maintains coordinated protection.
The CL250 is a 50 A, 120/240 V two-pole circuit breaker with a common trip and a 10 kAIC interrupt rating. It carries UL 489 certification, ensuring conformity to low-voltage protection standards and reliable performance in typical residential and light commercial service entrances.
Yes, the CL250 carries UL 489 certification for safety and performance. It comes with Eaton’s warranty terms: limited lifetime for residential use and a 1-year warranty for commercial applications, supporting long-term reliability and serviceability.
The CL250 measures 3 in x 3 in x 2 in (L x H x W) with a weight of 0.5 lb, designed to fit two spaces in CH Loadcenters. It accepts Cu/Al wiring up to #14-4 AWG, and is configured as a two-pole, common-trip device for coordinated protection in standard residential and light commercial panels.
