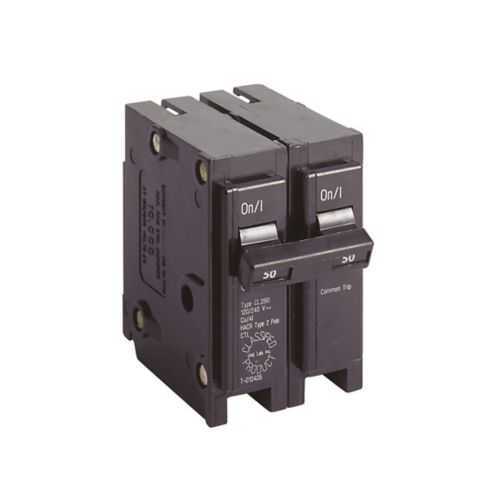

Eaton CL250CS Circuit Breaker - 10 kAIC Common Trip
Part Number: CL250CS
Quick Summary
Eaton CL250CS is a 3/4-inch thermal-magnetic circuit breaker for Type CH loadcenters. Replacing legacy breakers often creates compatibility headaches and downtime. The CL250CS provides a classified replacement option that fits CH panels and offers common-trip protection, minimizing mismatch risk and field errors. With UL 489 listing, it is designed to replace popular models from Square D Homeline, GE THQ, Crouse-Hinds MP, Thomas and Betts TB, Murray MP, and ITE/Siemens QP, streamlining procurement and inventory. This solution supports 120/240 V circuits in a two-pole configuration rated at 50 A, helping maintenance teams meet safety and reliability targets in industrial environments. By combining robust protection with practical installation benefits, it delivers measurable business value in routine panel upgrades and repairs.
Product Information
Extended Description
CL250CS Eaton: Eaton Classified 3/4" thermal magnetic circuit breaker,Type CL 1-Inch classified replacement breaker clamshell pack,Clamshell pack,50 A,10 kAIC,Two-pole,120/240V,CL,Common breaker trip,#14-4 AWG Cu/Al,Q30,CL,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CL250CS
UPC
782114753095
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.48 in
Product Weight
2.18 lb
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
50 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL250CS
Feature: Classified replacement for CH Loadcenters. Business Impact: Eliminates misfit parts and field validation errors, accelerating field swaps and reducing service interruption costs. Application: Designed for Type CH Loadcenters and is compatible with legacy brands per Eaton catalog notes, with a clamshell pack for easy handling and secure storage. Feature: Electrical ratings and form. Business Impact: Delivers predictable protection with 50 A, 120/240 V, and a 10 kAIC interrupt rating, supporting robust fault protection and coordination with upstream devices. Application: Suitable for branch circuits in industrial control panels, enabling quick integration into CH Loadcenters with common-trip protection. Feature: Two-pole, common trip. Business Impact: Promotes coordinated protection across both poles, reducing the risk of partial trips and equipment damage. Application: Ideal for two-pole configurations in 120/240 V circuits in industrial and commercial panels where accurate trip coordination matters. Feature: Packaging and compatibility. Business Impact: Clamshell pack packaging improves shipping safety and field handling, while the product notes specify two 1-inch spaces requirement, enabling straightforward installation in existing panel footprints. Feature: UL 489 certification and cross-brand compatibility. Business Impact: Ensures compliance with electrical standards and simplifies procurement by supporting replacement across multiple vendor lines; reduces compliance risk and maintenance costs.
Get a Quick Quote for a Eaton CL250CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CL250CS?
Enquire Now
FAQs
The CL250CS is a CL Type classified replacement designed for CH Loadcenters. It is intended to replace legacy breakers from brands such as Square D Homeline and GE THQ, among others listed in Eaton's catalog notes. It is a two-pole unit occupying two spaces in CH panels, optimized for 120/240 V operation.
Key specs include a 50 A amperage rating, 120/240 V nominal voltage, 10 kAIC interrupt rating, two-pole configuration, UL 489 certification, and CL classification. The device fits CH Loadcenters and weighs about 2.18 lb, with overall dimensions of 7.25 in length, 6.5 in height, and 4.48 in width.
Yes. The CL250CS uses a common breaker trip design, ensuring both poles trip together for coordinated protection. This is essential for 120/240 V circuits in CH Loadcenters and helps prevent partial trips that could damage connected equipment or compromise safety.
The CL250CS carries UL 489 certification, indicating compliance with recognized safety and performance standards for low-voltage circuit breakers. This certification supports reliable operation, simplifies regulatory compliance for industrial installations, and enhances cross-brand replacement confidence in mixed-brand panel configurations.
Using the CL250CS in maintenance reduces downtime through guaranteed compatibility with CH Loadcenters and legacy panel replacements. Its classified compatibility lowers spare-part inventory complexity, improves installation speed, and minimizes risk of nonconforming parts, delivering tangible cost savings over traditional cross-brand replacements in industrial facilities.
