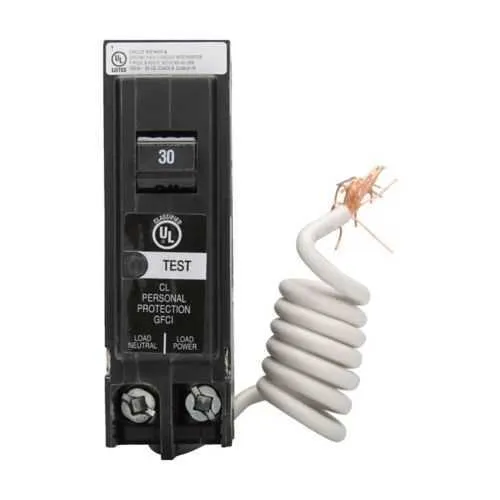

Eaton CLGF130 GFCI breaker - Trip-to-center 10 kAIC
Part Number: CLGF130
Quick Summary
The Eaton CLGF130 GFCI breaker provides reliable ground-fault protection for 1-in circuits in electrical panels. Nuisance trips, misbehavior during fault events, and difficult fault diagnostics are common pain points that this device helps prevent once properly installed. Certification status varies by region; work with Eaton to confirm UL or CSA listings, CE marks, and any relevant IP or environmental ratings for your facility. With plug-on mounting, 30 A capacity, a 120/240 V rating, and a 10 kAIC interrupt capability, it supports reliable, code-compliant protection while enabling straightforward maintenance and panel modernization. In practice, engineers gain faster fault isolation and reduced downtime, translating to measurable savings on project timelines and ongoing operating costs.
Product Information
Extended Description
CLGF130 Eaton: Eaton Classified 1" GFCI circuit breaker,Ground fault circuit breaker,30 A,10 kAIC,Single-pole,120/240 V,CLGF,Trip-to-center,Plug-on,#14-8 AWG,Ground fault circuit interrupter,GFI
Product Name
Eaton Classified 1" GFCI circuit breaker
Catalog Number
CLGF130
UPC
786689031558
Product Length/Depth
4 in
Product Height
1 in
Product Width
3.5 in
Product Weight
0.45 lb
Certifications
Contact Manufacturer
Type
Ground fault circuit breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Trip-to-center
Circuit protection
Ground fault circuit interrupter
Indicators
GFI
Mounting Method
Plug-on
Interrupt rating
10 kAIC
Main circuit breaker
CLGF
Connection
Plug-on
Wire size
#14-8 AWG
Number of poles
Single-pole
Trip rating
15 A
Feature: 30 A amperage rating paired with 120/240 V operation provides robust protection for standard control circuits and small motor loads. Business Impact: minimizes safety risks and improves uptime by ensuring leakage currents are detected and interrupted quickly. Application: suitable for commercial and light industrial control panels where space economy and quick response are critical. Feature: Trip-to-center mechanism enhances coordination with main disconnects, reducing nuisance trips during transient faults. Business Impact: improves system reliability and reduces unplanned outages, supporting tighter maintenance windows. Application: panelboard configurations in factories and process lines where precise fault location matters. Feature: 10 kAIC interrupt rating offers higher fault-tault tolerance for environments with higher surge energy. Business Impact: lowers the risk of cascading failures and extends panel life, delivering lower total cost of ownership. Application: industrial equipment housings and machine control panels with demanding startup transients. Feature: Plug-on mounting and plug-on connection simplify installation and field upgrades. Business Impact: reduces installation labor, minimizes wiring mistakes, and speeds panel modernization projects. Application: retrofits and new builds in automation cabinets where fast commissioning is needed. Feature: Wire size compatibility #14-8 AWG broadens wiring options for control circuits and sensing lines. Business Impact: supports common control wiring practices, enabling flexible, cost-effective layouts. Application: instrument panels, control relays, and distributed I/O enclosures. Feature: Compact 4 in length, 3.5 in width, and 1 in height keeps valuable panel space available for other components. Business Impact: enables higher circuit density and easier access for maintenance. Application: space-constrained control panels and OEM enclosures. Feature: GFCI indicators (GFI) provide clear status signaling for quick fault verification. Business Impact: accelerates troubleshooting and enhances operator safety. Application: panels with routine fault checks and safety audits.
Get a Quick Quote for a Eaton CLGF130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CLGF130?
Enquire Now
FAQs
The CLGF130 uses plug-on mounting and accepts wire sizes from #14 to #8 AWG, making it straightforward to drop into standard 1-inch panel spaces. It is a single-pole device rated for 30 A at 120/240 V with a 10 kAIC interrupt capability, and the physical dimensions (4 in L, 3.5 in W, 1 in H) help determine fit in crowded panels.
Key specs include a 30 A amperage rating, 120/240 V voltage rating, single-pole configuration, trip-to-center operation, 10 kAIC interrupt rating, plug-on mounting, and #14-8 AWG wire size compatibility. It also features GFCI protection with GFI indicators to simplify fault identification.
Yes. Its plug-on installation, 1-in footprint, 30 A rating, and 10 kAIC interrupt capacity make it well-suited for commercial control panels and light industrial environments where reliable ground fault interruption and space-efficient design are important.
Certification status for the CLGF130 varies by region. Verify with Eaton for UL, CSA, CE markings and any IP or environmental ratings applicable to your installation. Always confirm specific approvals with the manufacturer to ensure alignment with local electrical codes and project requirements.
The CLGF130 improves safety and reduces nuisance trips, which translates to less downtime and faster fault isolation. Its robust 10 kAIC rating and compact footprint enable higher panel density and extended equipment life, delivering measurable savings on maintenance and energy efficiency over the equipment lifecycle.
