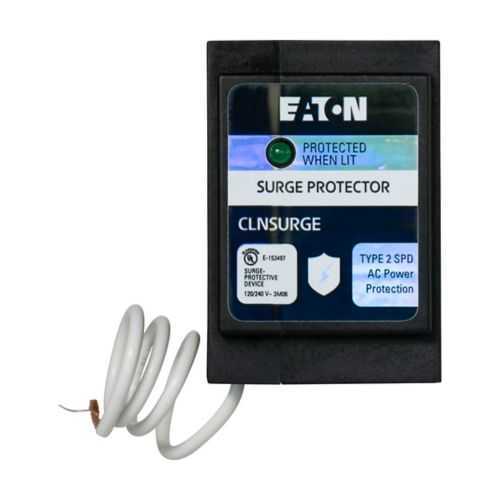

Eaton CLNSURGECS Type BR plug-on module SPD - UL 1449
Part Number: CLNSURGECS
Quick Summary
Eaton CLNSURGECS Type BR plug-on module surge protection device provides rapid transient suppression for electrical panels. Too often, plants suffer nuisance surges that damage controls, cause downtime, and complicate maintenance budgets. UL 1449 and cUL Certified ensure robust compliance across common regulatory environments. This compact, plug-on protection supports 50/60 Hz systems and simplifies procurement while delivering proven reliability for industrial automation and motor control panels, helping operators protect critical assets and extend equipment life.
Product Information
Extended Description
CLNSURGECS Eaton: Eaton Type BR circuit breaker surge protective device, Clamshell - Plug On Surge Protective Device UL Classified
Product Name
Eaton Type BR plug on module surge protection device
Catalog Number
CLNSURGECS
UPC
786689353735
Product Length/Depth
3 in
Product Height
2.981 in
Product Width
1.98 in
Product Weight
0.35 lb
Certifications
cUL Certified UL 1449
Type
Type BR
Frequency rating
50/60 Hz
Nominal Discharge Current
3 kA
Protection
L-N, L-L
Measured limiting voltage
600 V
Maximum continuous operating voltage
150 V L-N, 300 V L-L
Surge current
18 kA
Short-circuit rating
10 kA
Feature: Type BR plug-on module surge protection device integrates directly with Eaton Type BR breakers, limiting insertion complexity and reducing panel modification. Business Impact: simplifies retrofits and streamlines stocking, delivering faster protection deployment and lower installation costs. Application: Ideal for industrial control panels and switchgear where space is at a premium and downtime must be minimized. Feature: L-N and L-L protection with a 600 V measured limiting voltage. Business Impact: provides predictable clamping for sensitive electronics, reducing nuisance outages and extending component life. Application: 50/60 Hz control circuits in manufacturing and processing lines. Feature: Ratings of 3 kA nominal discharge, 18 kA surge current, and 10 kA short-circuit rating. Business Impact: delivers robust defense against transient events and fault currents, lowering repair costs and unplanned downtime. Application: protection for panel boards, motor starters, and drives in industrial environments. Feature: Compact dimensions—3 in length, 2.981 in height, 1.98 in width, and 0.35 lb weight. Business Impact: space-efficient footprint enables denser panel layouts and easier serviceability. Application: retrofit into crowded automation panels and compact switchgear. Feature: Certifications UL 1449, cUL Certified; Catalog CLNSURGECS; UPC 786689353735. Business Impact: improves procurement traceability and regulatory documentation, simplifying audits and compliance. Application: industrial facilities requiring formal certification and traceability.
Get a Quick Quote for a Eaton CLNSURGECS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CLNSURGECS?
Enquire Now
FAQs
The CLNSURGECS is designed as a plug-on module surge protection device for Eaton Type BR breakers, enabling seamless integration into existing Type BR panels and switchgear without extensive panel modification.
Key specs include 3 kA nominal discharge current, 18 kA surge current, 600 V measured limiting voltage, maximum 150 V L-N and 300 V L-L operating voltages, protective for L-N and L-L, with 50/60 Hz operation and 10 kA short-circuit rating.
Yes. Its Type BR plug-on format, 50/60 Hz compatibility, and robust surge ratings make it ideal for electrical panels, motor control centers, and drives in industrial automation environments.
The device is UL 1449 certified and cUL certified, offering regulatory compliance and traceability for critical electrical installations.
Its compact footprint and plug-on installation reduce retrofitting time, while reliable surge protection lowers downtime and equipment wear, delivering faster return on investment and easier asset management.
