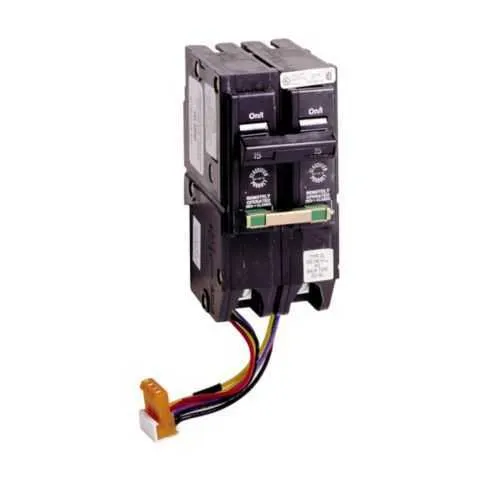

Eaton CLRP125 Circuit Breaker - 1-Inch Classified UL489
Part Number: CLRP125
Quick Summary
Eaton CLRP125 circuit breaker is a classified 1-inch thermal-magnetic protection device for CH loadcenters. This compact, remote-operated breaker helps engineers upgrade panels without sacrificing space or control. It addresses pain points like limited panel space and the need for remote operation in constrained installations, while ensuring compatibility with legacy hardware during modernization. UL 489 certification supports code compliance, and the CL 1-Inch classified design enables easy substitution in crowded mains. The CLRP125 also aligns with residential and light commercial usage, offering CH Loadcenter compatibility, a 25 A rating, and a 120/240 V supply. This combination delivers faster installations, reduced downtime, and scalable integration with smart panel architectures.
Product Information
Extended Description
CLRP125 Eaton: Eaton Classified 3/4" thermal magnetic circuit breaker,Type CL 1-Inch classified latching remote operated smart breaker,Remote operated,25 A,10 kAIC,Single-pole,120/240V,CL,#14-4 AWG Cu/Al,CL,Type CH Loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CLRP125
UPC
782116062478
Product Length/Depth
6.25 in
Product Height
3.75 in
Product Width
1.25 in
Product Weight
0.56 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified latching remote operated smart breaker
Special features
Remote operated
Amperage Rating
25 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CLRP125
Feature: Classified 1-inch form factor and CH loadcenter compatibility → Business Impact: Maximizes panel density and simplifies Retrofit projects by fitting into limited spaces while maintaining standard CH distribution protection → Application: Ideal for upgrades in compact residential panels and light commercial installations. Feature: Remote-operated, latching design → Business Impact: Reduces field service time and enables controlled tripping/retention sequencing for automated systems → Application: Suitable for remote operations in distributed or hard-to-reach panel locations. Feature: 25 A, 120/240 V, single-pole, 10 kAIC interrupt rating → Business Impact: Provides targeted protection with fast fault clearing for typical lighting and receptacle circuits, supporting code-compliant safety margins → Application: Used in general purpose branch circuits in CH loadcenters. Feature: Replacement compatibility with multiple legacy formats (Square D Homeline, GE THQ, etc.) and 1-inch spacing requirement → Business Impact: Accelerates substitutions and reduces upgrade risk by offering familiar mounting and spacing familiar to installers → Application: Retrofit projects across mixed-brand installations. Feature: Wire size #14-4 AWG Cu/Al and UL 489 certification → Business Impact: Facilitates flexible wiring options and confident code compliance in new builds or renovations → Application: Common in residential feeders and light commercial circuits. Feature: Dimensions and weight (6.25 in L, 3.75 in H, 1.25 in W, 0.56 lb) → Business Impact: Predictable handling and straightforward packaging in standard distribution blocks → Application: Fits standard cabinet spaces and eases inventory planning. Feature: Remote support and smart breaker capabilities → Business Impact: Enables future integration with panel management systems and remote diagnostics, reducing maintenance downtime → Application: Supports evolving building automation and energy management goals.
Get a Quick Quote for a Eaton CLRP125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CLRP125?
Enquire Now
FAQs
The CLRP125 is designed for Type CH Loadcenters and serves as a replacement option aligned with 1-inch spaces. It also functions as a substitute in mixed-brand installations such as Square D Homeline and GE THQ due to its classified 1-inch form factor. This compatibility helps streamline retrofit projects while preserving protective coordination and space planning.
CLRP125 is a 25 A, 120/240 V, single-pole, thermal-magnetic circuit breaker with a 10 kAIC interrupt rating. It is a Type CH device inside CH Loadcenters and uses #14-4 AWG Cu/Al conductors. It is UL 489 listed and requires 1-inch mounting space in the panel.
Yes. The CLRP125 is intended for residential and light commercial panels that utilize CH Loadcenters. Its 25 A rating and 120/240 V operation cover common branch circuits, and its classified remote-operated feature supports modern panel management while maintaining compatibility with standard residential wiring practices.
The CLRP125 carries UL 489 certification, ensuring compliance with electrical protection standards for circuit breakers. This certification provides confidence in safety, performance, and code compliance for panel installations. The classification as a 1-inch remote-operated breaker further reinforces suitability for modernized, space-conscious electrical systems.
Remote operation enables controlled tripping and latching functions without direct handle engagement, reducing on-site visits and downtime during maintenance or panel upgrades. In retrofits or automated builds, this capability supports integration with building management systems and enhances fault coordination across CH loadcenters, delivering tangible efficiency gains and faster ROI.
