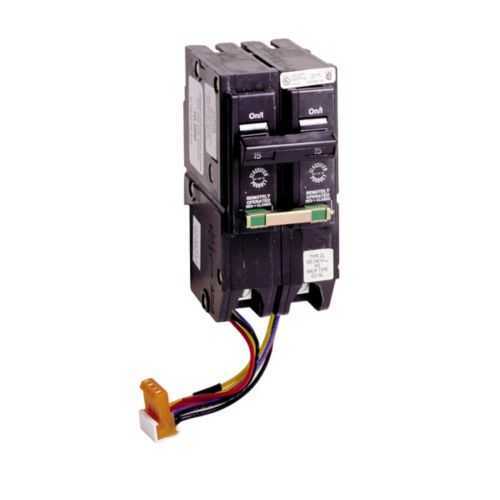

Eaton CLRP130 1-Inch Classified Breaker - UL 489
Part Number: CLRP130
Quick Summary
Eaton CLRP130 is a classified 1-inch thermal magnetic circuit breaker designed for CH load centers and remote operation in modern electrical panels. It addresses space constraints in compact panel environments by delivering protection in a compact footprint. This device carries UL 489 certification and is compatible with a range of legacy enclosures, enabling straightforward retrofit. Its remote-operated, latching features reduce on-site intervention while enhancing safety and control from a central panel or remote location. With a 30 A rating, 120/240 V operation, and 10 kAIC interrupt capability, it wires easily to #14-4 AWG Cu/Al and fits single-pole CH configurations. This combination delivers dependable protection with installation flexibility and proven Eaton performance.
Product Information
Extended Description
CLRP130 Eaton: Eaton Classified 3/4" thermal magnetic circuit breaker,Type CL 1-Inch classified latching remote operated smart breaker,Remote operated,30 A,10 kAIC,Single-pole,120/240V,CL,#14-4 AWG Cu/Al,CL,Type CH Loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CLRP130
UPC
782116062485
Product Length/Depth
6.25 in
Product Height
3.75 in
Product Width
1.25 in
Product Weight
0.57 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified latching remote operated smart breaker
Special features
Remote operated
Amperage Rating
30 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CLRP130
Feature: Remote-operated, latching design. Business Impact: Enables safer, centralized control and reduced on-site maintenance, improving uptime in distributed electrical systems. Application: Ideal for CH load centers requiring remote operability in panel upgrades or retrofits. Feature: 1-Inch footprint. Business Impact: Maximizes panel density and frees space for additional circuits, lowering enclosure size and cost. Application: Retrofit projects where space is at a premium. Feature: 30 A, 120/240 V, 10 kAIC rating. Business Impact: Provides reliable branch protection with high fault current withstand, enhancing safety margins and safeguarding equipment. Application: Commercial and light-industrial distribution panels. Feature: Type CH Loadcenter compatibility. Business Impact: Simplifies installation and reduces wiring complexity, accelerating project timelines. Application: Type CH load centers and Eaton-compatible systems. Feature: Replacement compatibility notes. Business Impact: Facilitates cross-brand replacements (with minimal footprint changes), lowering total cost of ownership. Application: Retrofit of Square D Homeline, GE THQ, and other legacy breakers. Feature: Wire sizing and termination. Business Impact: Supports common building wire (#14-4 AWG Cu/Al), enabling straightforward field terminations. Application: General branch-circuit protection in mixed wiring environments.
Get a Quick Quote for a Eaton CLRP130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CLRP130?
Enquire Now
FAQs
CLRP130 is designed for Type CH Loadcenters and uses a 1-Inch width with a 6.25 in length, 3.75 in height, and 1.25 in depth. It requires 1-inch spaces in the panel and supports #14-4 AWG Cu/Al conductors. When migrating from other brands, follow the catalog notes for cross-compatibility to minimize panel modifications.
The CLRP130 is a 30 A, single-pole breaker rated for 120/240 V with an interrupt rating of 10 kAIC. It is best applied in CH load centers for branch-circuit protection in commercial and light-industrial distributions, where space constraints and remote operation are important considerations.
Yes, the CLRP130 features remote-operated, latching functionality. This enables control from a central location or remote panel, reducing on-site visits, improving safety during equipment testing or maintenance, and enabling quicker isolation of faults without direct access to the breaker.
The CLRP130 supports cross-brand replacements per Eaton catalog notes, including replacements for several legacy breakers. Its 1-Inch CL classification and CH Loadcenter compatibility streamline retrofits, while the #14-4 AWG termination remains standard. Verify enclosure space and bus bar compatibility before swapping to ensure a seamless upgrade.
The CLRP130 carries UL 489 certification, confirming compliance with recognized safety standards for circuit breakers. It also carries Eaton’s warranty terms, including limited lifetime residential and 1-year commercial coverage, providing assurance for both installation and ongoing operation.
