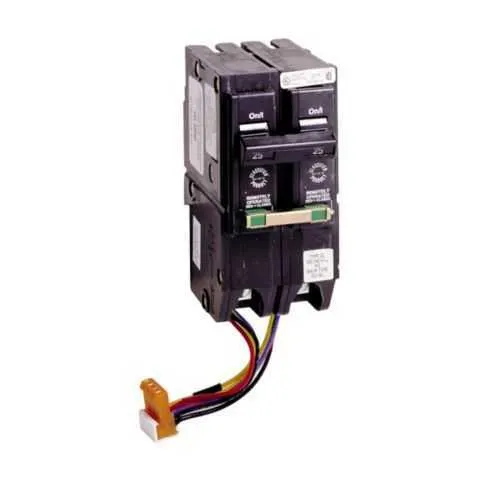

Eaton CLRP225 Circuit Breaker - 1" Classified UL 489
Part Number: CLRP225
Quick Summary
CLRP225 is an Eaton classified 1-inch thermal-magnetic circuit breaker used in CH loadcenters for reliable protection. It reduces downtime and integration headaches by offering remote operation and a common trip design that suits modern control schemes. UL 489 listed, this unit also supports 1-inch space classification and is designed for seamless compatibility with Eaton CH Loadcenter panels. Coupled with a compact footprint and straightforward installation, it supports efficient panel design and proactive maintenance in commercial or light industrial environments. Manufacturers seeking compliance and reliability will appreciate its 10 kAIC interrupt rating and compatibility with #14-4 AWG Cu/Al wiring.
Product Information
Extended Description
CLRP225 Eaton: Eaton Classified 3/4" thermal magnetic circuit breaker,Type CL 1-Inch classified latching remote operated smart breaker,Remote operated,25 A,10 kAIC,Two-pole,120/240V,CL,Common breaker trip,#14-4 AWG Cu/Al,CL,Type CH Loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CLRP225
UPC
782116062515
Product Length/Depth
6.25 in
Product Height
3.75 in
Product Width
2.25 in
Product Weight
1.04 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires 1-inch (25.4 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified latching remote operated smart breaker
Special features
Remote operated
Amperage Rating
25 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CLRP225
Feature: Remote operated, classified 1-inch footprint enables easier retrofits and panel space optimization → Business Impact: Reduces installation time and minimizes panel rearrangements, lowering labor costs and downtime → Application: Ideal for CH Loadcenters in residential and light commercial projects. Feature: 25 A, 120/240 V, 10 kAIC interrupt rating provides robust protection against short circuits → Business Impact: Enhanced safety margin for feeders and branch circuits, reducing risk of equipment damage → Application: Suitable for branch circuits in commercial panels with moderate fault current. Feature: Two-pole design with common trip for coordinated shutdown → Business Impact: Simplifies wiring topology and improves protection coordination across multi-wire branches → Application: Fits 1-Inch space requirements in standard load centers. Feature: Replacement compatibility and catalog notes supporting replacement for multiple brands → Business Impact: Accelerates retrofit programs and extends service life of existing installations → Application: Useful for upgrades in mixed-brand fleets. Feature: UL 489 certification and remote-operated capability → Business Impact: Ensures safety compliance while enabling remote monitoring/control strategies → Application: Aligns with modern control architectures and service reliability goals.
Get a Quick Quote for a Eaton CLRP225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CLRP225?
Enquire Now
FAQs
To retrofit CLRP225 into a CH Loadcenter, verify clearance for a 1-inch space, mount the unit in a two-pole slot, and connect #14-4 AWG Cu/Al conductors per panel instructions. The breaker is 25 A, 120/240 V with a 10 kAIC interrupt rating and supports a common trip design. Utilize the remote-operated capability per Eaton installation notes.
Key specs include 25 A amperage rating, 120/240 V operating voltage, 10 kAIC interrupt rating, two-pole configuration, and a common trip. It is designed for CH Loadcenters and uses a 1-Inch classified footprint, with #14-4 AWG Cu/Al wiring capacity. These attributes guide protection coordination and conductor sizing in panel design.
Yes. CLRP225 is a remote-operated, classified 1-inch breaker designed for CH Loadcenters. Its remote capability supports integration with distributed control schemes while maintaining standard protection. This makes it well-suited for retrofit programs and new builds where centralized control and quick isolation are priorities.
CLRP225 is UL 489 listed, which validates its compliance with recognized safety requirements for low-voltage circuit breakers. The device is also designed for 1-inch space classification and remote operation within Eaton’s catalog guidance. These standards help ensure safe operation, proper coordination, and easier regulatory acceptance in many markets.
Upgrading to CLRP225 can reduce downtime through faster fault isolation and safer maintenance routines, thanks to its remote operation and common-trip design. The retrofit-friendly 1-inch footprint lowers panel-space costs, while UL 489 compliance supports safer, more reliable operation across residential and light commercial panels, contributing to lower maintenance and replacement costs over time.
