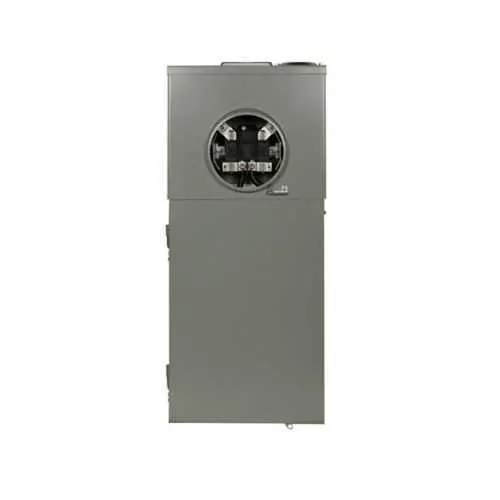

Eaton CMB2436B200BTS Residential Meter Breaker - UL Listed
Part Number: CMB2436B200BTS
Quick Summary
Eaton residential meter breaker is a compact all-in-one protection solution for meter-main installations in residential and light commercial panels. Many engineers and procurement teams struggle with space constraints, wiring complexity, and coordinating protective devices in meter-based configurations. Key certifications and approvals include UL Listed; NEMA 3R enclosure suitability; and MEG utility approvals across Florida, Indiana, Kentucky, North Carolina, Ohio, and South Carolina. This combination supports faster installation, lower lifecycle costs, and scalable protection for evolving electrical service needs. Designed for compatibility with Type CH breakers and copper bus, it streamlines procurement and maintenance across the project lifecycle.
Product Information
Extended Description
CMB2436B200BTS Eaton: Eaton residential meter breaker, All-in-ones, 200 A, C, Copper, NEMA 3R, Bottom and top, #4-300 kcm22 kAIC, #4-300 kcmCSR2200, Surface mounting, 36, Four-jaw, 1, 24, Single-phase, Ringless, Type CH breakers, 120/240 Vac
Product Name
Eaton residential meter breaker
Catalog Number
CMB2436B200BTS
UPC
782116654048
Product Length/Depth
5.38 in
Product Height
32.38 in
Product Width
14.44 in
Product Weight
45 lb
Warranty
Limited lifetime
Certifications
UL Listed
Type
All-in-ones
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric)
Interrupt rating
10 kAIC 22 kAIC
Box size
C
Enclosure
NEMA 3R
Ground
#4-300 kcmil
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Used with
Type CH breakers
Number of circuits
36
Bus material
Copper
Feed type
Top/bottom
Main circuit breaker
CSR2200
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CMB2436B200BTS
Feature: All-in-one meter breaker with 200 A rating and 36 circuits. Business Impact: Reduces panel footprint and simplifies wiring, lowering installation time and on-site labor costs. Application: Ideal for residential meter-main combos and light commercial panels where space is at a premium. Feature: NEMA 3R enclosure with surface mounting and top/bottom feed. Business Impact: Enables reliable outdoor or semi-exposed installations without additional enclosure upgrades, improving serviceability. Application: Outdoor meter mains or mounting near building exteriors. Feature: Copper bus with four-jaw grounding and robust grounding for large feeders (#4-300 kcmil). Business Impact: Improves connection reliability and minimizes voltage drop in high-load scenarios. Application: High-amp service feeders and main distribution paths. Feature: 10 kAIC/22 kAIC interrupt rating. Business Impact: Enhances fault tolerance and protection coordination under surge conditions, reducing risk of collateral damage. Application: Service equipment in residential and light commercial settings. Feature: Type CH breakers compatibility and CSR2200 main breaker with surface mounting. Business Impact: Streamlines replacement and expansion while maintaining familiar protection schemes. Application: Retrofit projects and new installations needing standardized breaker types. Feature: Limited lifetime warranty and UL Listed certification. Business Impact: Lowers long-term ownership costs and assures compliance with recognized safety standards. Application: Procurement optimization for facilities teams and electrical contractors.
Get a Quick Quote for a Eaton CMB2436B200BTS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CMB2436B200BTS?
Enquire Now
FAQs
The CMB2436B200BTS is rated for outdoor use within a NEMA 3R enclosure and supports top/bottom feed with copper bus connections. For outdoor installations, ensure proper weatherproofing and access to the enclosure, while maintaining clearances per NEC guidelines. The unit’s four-jaw grounding and compatible Type CH breakers simplify mounting and expansion without sacrificing safety or performance.
A 200 A main with 36 circuits provides ample headroom for high-demand residences or small commercial spaces, enabling centralized protection and metering in a single enclosure. This arrangement reduces panel sprawl, lowers wiring complexity, and speeds commissioning. It also supports scalable protection coordination as loads grow or configurations change.
Yes, the unit is designed to be used with Type CH breakers and includes a CSR2200 main breaker option. It supports surface mounting with top and bottom feed, enabling flexible installation in existing or new panels. Four-jaw grounding and copper bus enhance reliability for large feeders, while maintaining straightforward retrofits for CH-based protection schemes.
The CMB2436B200BTS carries UL Listed certification for safety and performance. It also aligns with utility-approved configurations (MEG) across multiple states, including Florida, Indiana, Kentucky, North Carolina, Ohio, and South Carolina, ensuring compatibility with common utility metering and service equipment requirements.
Total cost of ownership combines initial procurement, installation labor, and ongoing maintenance. The all-in-one design reduces wiring and labor time, while the limited lifetime warranty lowers replacement risk. Regular inspection of copper bus connections and enclosure seals, plus periodic verification of MEG approvals in your locality, helps sustain reliability and compliance over the service life.
