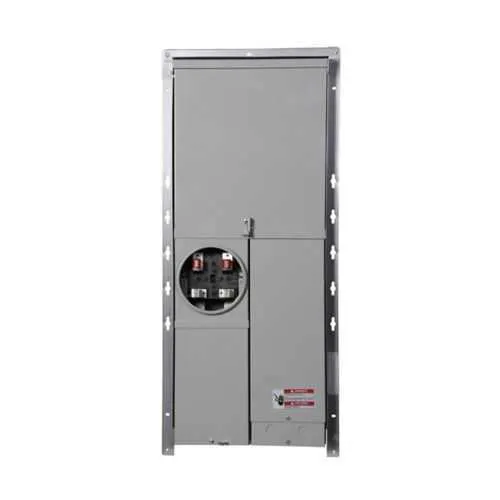

Eaton CMBE22P125BTFR Meter Breaker - UL Listed
Part Number: CMBE22P125BTFR
Quick Summary
The Eaton CMBE22P125BTFR is a residential meter breaker that integrates metering and protection for single-phase service entrances. When upgrading legacy panels, installers often face compatibility gaps, extended downtime, and complex field wiring. This unit leverages UL Listed and EUSERC Approved credentials along with a NEMA 3R enclosure to deliver safe, outdoor-ready service. As a retrofit solutions option, it supports 120/240 V service with aluminum bus and a four-jaw design, enabling streamlined installations while preserving reliable electrical protection for homeowners and small businesses alike.
Product Information
Extended Description
CMBE22P125BTFR Eaton: Eaton Retrofit Meter Breaker,125A, Aluminum Bus,Overhead/underground,Flush mounting,Four-jaws,Single-phase,Ring Type,120/240V
Product Name
Eaton residential meter breaker
Catalog Number
CMBE22P125BTFR
UPC
786685242293
Product Length/Depth
5.5 in
Product Height
36.13 in
Product Width
14.44 in
Product Weight
52 lb
Warranty
Limited lifetime
Compliances
EUSERC Approved
Certifications
UL Listed
Type
Retrofit solutions
Utility approvals
AZ : Arizona Public Service Company ID : Idaho Power OR : Idaho Power WA : Seattle City Light AK : Anchorage Municipal Light & Power NV : NV Energy AZ : Salt River Project (SRP) MT : NorthWestern Energy NE : NorthWestern Energy SD : NorthWestern Energy WY : NorthWestern Energy WA : Puget Sound Energy WA : Tacoma Public Utilities
Interrupt rating
10 kAIC
Enclosure
NEMA 3R
Voltage rating
120/240 V
Number of sockets
1
Phase
Single-phase
Used with
Type CH breakers
Number of circuits
22
Bus material
Aluminum
Feed type
Top/bottom
Main circuit breaker
Provisions
Number of jaws
Four-jaw
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CMBE22P125BTFR
Feature → The integrated retrofit metering design reduces complexity by combining meter and breaker functions in a single enclosure, enabling faster field upgrades and fewer parts to source. Business Impact → Shorter project timelines, reduced labor costs, and lower inventory burden for contractors. Application → Ideal for residential service upgrades and light commercial metering retrofits where quick turnarounds are critical. Feature → Aluminum bus and four-jaw ring-type construction provide robust, high‑conductivity connections with corrosion resistance. Business Impact → Improved electrical performance and long-term reliability, reducing maintenance calls. Application → Suitable for overhead and underground feeds in 120/240 V systems. Feature → Top/bottom feed and flush mounting support flexible installation and mounting versatility. Business Impact → Enables seamless retrofits in limited spaces and retrofit panels. Application → Residential meter risers and retrofit service panels with constrained footprints. Feature → NEMA 3R enclosure delivers outdoor protection against weather and dust. Business Impact → Compliance with outdoor installation codes and reduced enclosure damage. Application → Outdoor meter locations and exposed service entrances. Feature → 10 kAIC interrupt rating with UL Listed and EUSERC approvals minimize project risk and regulatory hurdles. Business Impact → Greater protection coordination and smoother utility interconnection. Application → Utility-compliant service disconnects for residential and light commercial sites. Feature → Compatibility with Type CH breakers ensures easy part replacement and spare-parts availability. Business Impact → Lower total cost of ownership and faster maintenance cycles. Application → Retrofit projects requiring reliable breaker compatibility and minimal rewiring.
Get a Quick Quote for a Eaton CMBE22P125BTFR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CMBE22P125BTFR?
Enquire Now
FAQs
The CMBE22P125BTFR is designed to be used with Type CH breakers, ensuring straightforward compatibility for retrofits. This compatibility reduces the need for replacement parts and minimizes field rewiring, helping crews maintain project schedules and keep spare CH units on hand for quick swaps in residential metering upgrades.
This unit supports flush mounting with top and bottom feed options, which provides installation flexibility in limited spaces and retrofit panels. The four-jaw design enhances secure conductor connections, while the aluminum bus improves conductivity and durability during outdoor service upgrades.
Yes. The meter breaker is specified for overhead/underground service, featuring a NEMA 3R enclosure for outdoor use and a robust 125A capacity. This makes it a versatile retrofit solution for both new construction and existing feeders that require reliable protection in varying installation environments.
The CMBE22P125BTFR carries UL Listed certification and EUSERC approval, indicating compliance with underwriter safety standards and utility-acceptance criteria. These certifications help reduce regulatory risk and facilitate utility interconnection during retrofit projects.
A retrofit metering solution like the CMBE22P125BTFR reduces installation time, minimizes downtime for service upgrades, and lowers total cost of ownership through durable aluminum bus, robust protection (10 kAIC), and proven compatibility with CH breakers. It supports faster project completion and improved reliability for residential and light commercial applications.
