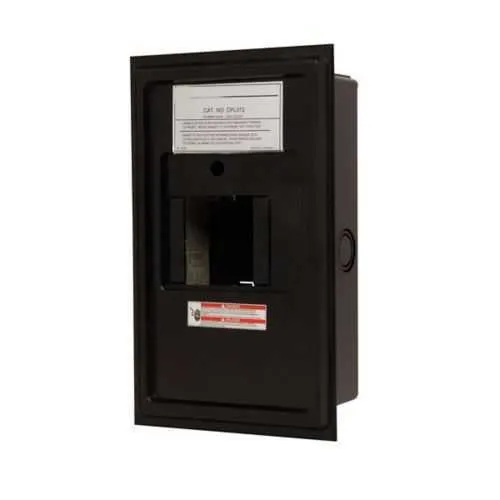

Eaton CPL072FGP Main Lug Loadcenter - 70A, NEMA 1
Part Number: CPL072FGP
Quick Summary
Eaton CPL072FGP main lug loadcenter is a compact, single‑phase distribution panel designed for Canadian BR enclosures and dry indoor installations. When panel space is at a premium, wire routing and mounting efficiency become critical, so a flush, metallic enclosure helps installers maximize usable area. This unit carries CSA C22.2 certification, a 25 kAIC interrupt rating, and a 250 V rating, delivering reliable short‑circuit protection for demanding environments. For engineers and procurement teams, the combination of a 70 A main lug, two circuits, and copper bus provides predictable performance with minimal impedance. It also aligns with BR family components, enabling scalable solutions and faster turnkey deployments in light industrial and commercial applications.
Product Information
Extended Description
CPL072FGP Eaton: Eaton BR main lug loadcenters canadian,Non-combination, main lug only,70A,NEMA 1,Metallic,Flush,6,Single-phase,250 V,#14-2 AWG
Product Name
Eaton BR main lug loadcenter
Catalog Number
CPL072FGP
UPC
786685108094
Product Length/Depth
4.5 in
Product Height
9.44 in
Product Width
3 in
Product Weight
9.44 lb
Certifications
CSA C22.2.
Type
Non-combination, main lug only
Amperage Rating
70 A
Bus material
Copper
Mounting
Flush
Number of circuits
2
Number Of Poles
Four-pole
Number of spaces
2
Phase
Single-phase
Voltage rating
250 V
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Feature: 70 A amperage rating with main lug only. Business impact: Supports reliable feeder protection for small to mid-size loads without the need for a full breaker set, reducing enclosure footprint and upfront costs. Application: Ideal for compact BR panel installations in offices, retail spaces, and light industrial facilities. Feature: Two spaces and two circuits with a four-pole design. Business impact: Enables simplified wiring of essential circuits while maintaining a tidy, code-compliant panel, reducing install time and potential miswiring. Application: Suitable for two‑circuit distributions in low-to-mid load scenarios in commercial environments. Feature: NEMA 1 metallic enclosure with flush mounting. Business impact: Durable indoor protection against dust and incidental impacts while preserving a clean wall line, speeding installation and serviceability. Application: Dry indoor electrical rooms and visibility-conscious spaces in manufacturing or retail. Feature: Copper bus material. Business impact: Improves conductivity and minimizes voltage drop, enhancing overall circuit performance and reliability. Application: Critical feeders and sensitive equipment in controlled environments benefit from lower impedance paths. Feature: 25 kAIC interrupt rating with CSA C22.2 compliance. Business impact: Higher fault-current tolerance translates to safer, more compliant installations and reduced risk of nuisance tripping. Application: Industrial or commercial spaces with potential for higher short-circuit currents benefit from robust protection. Feature: 250 V phase voltage and single-phase configuration. Business impact: Aligns with common lighting and small motor loads while simplifying feeder design and interconnect wiring. Application: Light commercial panels and small manufacturing lines requiring straightforward distribution.
Get a Quick Quote for a Eaton CPL072FGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CPL072FGP?
Enquire Now
FAQs
The CPL072FGP uses a flush-mountable metallic NEMA 1 enclosure, designed for indoor dry installations. This yields a low-profile front when mounted on a wall, simplifying wiring access and reducing overall enclosure footprint. The design supports quick, clean installations in standard electrical rooms and aligns with BR accessory families for a seamless retrofit or new-build approach.
CPL072FGP is a 70 A, 250 V main lug loadcenter with two spaces for two circuits and four poles. It features a copper bus for reliable conductivity and a 25 kAIC interrupt rating. It is compatible with Eaton BR main lug configurations and supports BR accessories, enabling scalable distribution for light-commercial or small industrial panels.
Yes. The CPL072FGP carries CSA C22.2 certification and is specified for Canadian BR panel applications. Its 250 V rating and metallic NEMA 1 enclosure are aligned with typical Canadian electrical codes for dry indoor service panels, providing a compliant, dependable distribution solution.
Expect standard wall mounting clearances and wiring routes; ensure adequate space behind the panel for cable entry and a clean bus connection. Use the flush-mount design to minimize protrusion and verify the enclosure is mounted plumb. Pre-wire and label circuits to reduce on-site rework, and confirm compatibility with BR accessories to simplify future expansion.
The CPL072FGP offers space-efficient, two-circuit distribution with a robust 70 A rating and 25 kAIC fault tolerance, reducing the risk of unplanned downtime. Copper bus improves reliability and efficiency, while CSA compliance minimizes regulatory risk. The compact footprint supports quicker installs and lower labor costs during maintenance or upgrades in light manufacturing environments.
