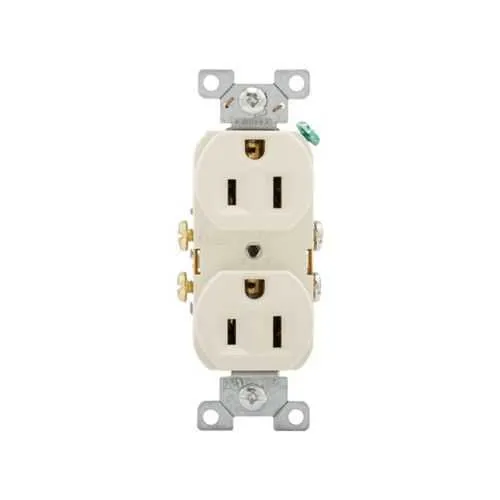

Eaton CR15LA Duplex Receptacle - RoHS Compliant
Part Number: CR15LA
Quick Summary
The Eaton CR15LA duplex receptacle is a commercial-grade outlet designed for 125V systems in busy commercial environments. Installers face safety, reliability, and code-compliance challenges in fast-paced facilities. This model is RoHS compliant and cULus listed, with NOM Federal Specification Classification 6233 01, ensuring regulatory readiness. Designed for flush mounting and compatibility with standard wall boxes, it accepts #14–10 AWG wiring and provides reliable, auto-grounding performance for commercial applications.
Product Information
Extended Description
CR15LA Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Light almond, Brass, High-impact nylon, PVC, 5-15R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
CR15LA
UPC
032664583155
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.001 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
High-impact nylon PVC
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - CR15LA
Eaton Specification Sheet - CR15LA
Feature 15A, 125V duplex receptacle aligns with common office and retail loads → Business Impact supports reliable power delivery for everyday equipment while minimizing nuisance trips → Application ideal for commercial spaces requiring dependable straight-blade outlets. Benefit Side-wire wiring plus screw connections support easier installation with #14-10 AWG, reducing field labor and wire fill → Application suitable for quick swaps in busy facilities, lowering downtime and commissioning risk. Feature Flush mounting preserves work area aesthetics and space efficiency → Benefit Clean, professional finishes in office, retail, and institutional environments. Feature NEMA configuration 5-15R with brass contact material and high-impact nylon/PVC body → Benefit Durable, corrosion-resistant contacts and rugged housing translate to longer service life in demanding conditions. Feature 14 lbf-in torque rating ensures secure terminations → Benefit Consistent performance under vibration or heavy-use conditions, reducing maintenance calls. Feature RoHS compliant and cULus listed with NOM 6233 01 → Benefit Regulatory assurance across jurisdictions, simplifying procurement and compliance workflow. Feature Core pack packaging supports efficient stocking → Benefit Streamlined logistics for distributors and larger projects, enabling faster project ramp-ups.
Get a Quick Quote for a Eaton CR15LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CR15LA?
Enquire Now
FAQs
The CR15LA is a side-wire, 15A 125V duplex receptacle designed for flush mounting in standard single-gang boxes. Use #14–10 AWG conductors and tighten terminals to the manufacturer’s torque specification of 14 lbf-in. The unit is compatible with NEMA 5-15R configurations and requires a compatible mounting strap and faceplate for a secure, code-compliant installation.
CR15LA carries RoHS compliance, is cULus Listed, and aligns with NOM Federal Specification Classification 6233 01. These certifications ensure reduced hazardous substances, safety compliance for North American markets, and regulatory readiness across jurisdictions, which is critical for facilities with stringent procurement and safety requirements.
Yes. The CR15LA is a commercial-grade, straight blade duplex receptacle with a NEMA 5-15R configuration, rated at 15A and 125V, designed for flush mounting in office, retail, and institutional environments. Its light almond color and durable materials help it blend with interiors while delivering dependable power for everyday equipment.
It mitigates wiring complexity with side-wire terminals for #14–10 AWG, uses a robust brass contact system, and employs a high-impact nylon/PVC body for durability. The 14 lbf-in torque rating ensures secure terminations, and auto-grounding reduces grounding steps, resulting in faster installations with fewer post-installation maintenance calls.
The combination of durable materials, reliable auto-grounding, and standard NEMA configuration reduces replacement frequency and service interruptions. RoHS and cULus compliance simplify regulatory reviews, while flush-mount, corrosion-resistant components minimize upkeep, delivering lower total cost of ownership over the equipment lifecycle.
