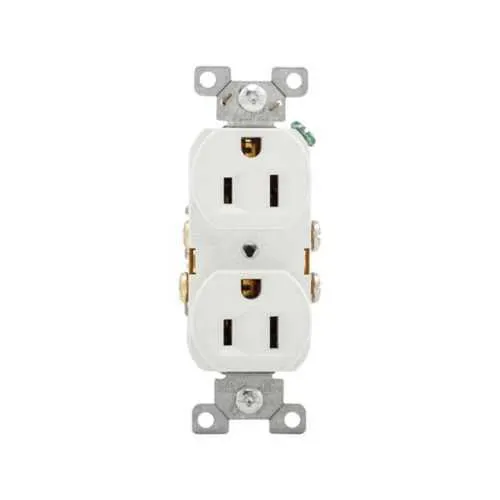

Eaton CR15W Duplex Receptacle - RoHS Compliant
Part Number: CR15W
Quick Summary
CR15W is a commercial-grade duplex receptacle designed to deliver dependable 15A, 125V outlets in busy commercial environments. Installers often contend with awkward wiring, inconsistent grounding, and fitment challenges in flush-mount panels. RoHS compliant and cULus listed, with NOM certification and Federal Specification Classification 6233 01, the receptacle meets critical safety and regulatory requirements. The combination of side-wire wiring, auto-grounding, brass contacts, and a compact PVC/nylon body supports quick, code-compliant installations with fewer callbacks. Designed for standard commercial wiring, it enables reliable power distribution while meeting procurement goals for durable, shareable wiring devices and connectivity components. Its compact form simplifies retrofits and reduces field labor.
Product Information
Extended Description
CR15W Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, White, Brass, High-impact nylon, PVC, 5-15R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
CR15W
UPC
032664489037
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.001 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC High-impact nylon
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - CR15W
Eaton Specification Sheet - CR15W
Feature → Business Impact → Application. To install the CR15W duplex receptacle in commercial wiring, prepare a #14-10 AWG circuit and use the side-wire terminals with a torque of 14 lbf-in for a secure connection. Mount the device flush, align the NEMA 5-15R configuration, and rely on the auto-grounding feature with brass contacts for a reliable, code-compliant installation. The device is rated for 15A at 125V and uses brass contact material, ensuring low contact resistance and durable performance in daily office and institutional use. The PVC/high-impact nylon body offers environmental resistance while preserving easy cleaning and long service life. With 3 wires and a 2-pole design, it supports straightforward wiring in retrofit and new-build projects. RoHS compliance and cULus listing provide regulatory confidence across facilities, reducing compliance risk and easing procurement.
Get a Quick Quote for a Eaton CR15W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CR15W?
Enquire Now
FAQs
To install the CR15W duplex receptacle in commercial wiring, align the side-wire terminals with #14-10 AWG conductors and tighten to 14 lbf-in for a secure connection. Mount flush, ensure the NEMA 5-15R configuration is correct, and rely on auto-grounding brass contacts for a safe, code-compliant installation.
CR15W is RoHS compliant and cULus Listed, meeting Federal Specification Classification 6233 01. This combination ensures hazardous substance reduction and safety certification for commercial environments. The unit's NOM alignment further supports compliance in North American facilities, while its compact, flush design supports safer installation in dense electrical panels and spaces.
Yes. The CR15W is a 15A, 125V NEMA 5-15R duplex receptacle designed for commercial use. Its side-wire, screw-terminal wiring supports #14-10 AWG conductors, while its white, PVC/high-impact nylon body resists everyday wear. With auto-grounding and robust brass contacts, it delivers dependable operation in high-traffic offices, retail, and healthcare environments today.
Flush mounting reduces protrusion, enabling clean panel lines and safer workflow in dense electrical rooms. The CR15W combines PVC with high-impact nylon face and brass contacts, balancing durability with ease of cleaning. Side-wire terminations simplify field wiring, while the core-pack packaging minimizes handling damage during stocking and installation, contributing to faster installation cycles in retrofit and new-build projects.
Selecting CR15W can reduce maintenance calls through reliable grounding and stable connections, lowering downtime in critical spaces. RoHS compliance helps simplify disposal and regulatory reporting, while its corrosion-resistant brass contacts and durable construction extend service life. For facilities upgrading multiple outlets, standardized commercial-grade components like CR15W streamline procurement and training, delivering measurable cost savings over time.
