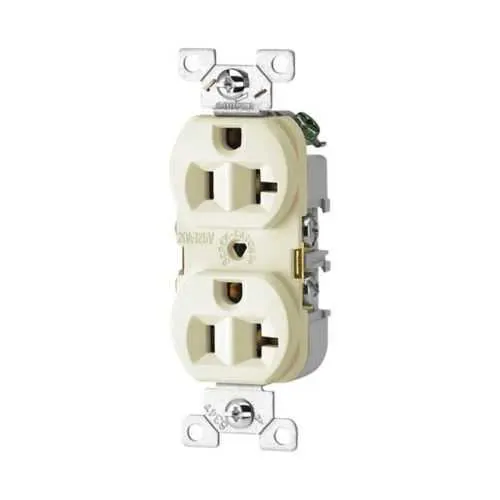

Eaton CR20A Duplex Receptacle - cULus Listed
Part Number: CR20A
Quick Summary
The Eaton CR20A duplex receptacle delivers reliable 125V, 20A power for commercial applications. In busy facilities, technicians often face grounding issues, loose terminations, and non-compliant outlets that slow projects. This model carries RoHS compliance and a cULus listing, with durable PVC and high-impact nylon housing and an auto-grounding feature for safer, faster installations. By combining compatibility with #14-10 AWG wiring and flush mounting, it helps contractors meet code requirements while reducing field rework and lifecycle costs. For engineers and procurement teams, the CR20A offers a proven balance of performance, safety, and total-cost-of-ownership advantages in commercial wiring devices.
Product Information
Extended Description
CR20A Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Almond, Brass, High-impact nylon, PVC, 5-20R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
CR20A
UPC
032664554896
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.001 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC High-impact nylon
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - CR20A
Eaton Specification Sheet - CR20A
Feature → Business Impact → Application: Side-wire termination simplifies field wiring, reduces install time, and minimizes termination errors in dense electrical boxes; Application: Office fit-outs, retail remodels, and hospitality upgrades. Feature → Business Impact → Application: Auto-grounding enhances safety on every receptacle, lowering shock risk in high-traffic spaces and service corridors; Application: Commercial spaces with frequent plug-in activity. Feature → Business Impact → Application: PVC face and high-impact nylon body deliver robust durability against dings and impact in corridors and loading docks; Application: High-traffic areas requiring long service life. Feature → Business Impact → Application: Accepts #14-10 AWG conductors with a 14 lbf-inch torque rating for secure connections; Application: Electrical remodels and new-build projects where reliable, code-compliant terminations are essential. Feature → Business Impact → Application: NEMA 5-20R, 125V, 20A configuration ensures compatibility with common branch circuits; Application: Commercial office, retail, and hospitality power distribution. Feature → Business Impact → Application: Core pack packaging minimizes waste and simplifies stocking for procurement teams; Application: Large facility rollouts and contractor-led installations.
Get a Quick Quote for a Eaton CR20A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CR20A?
Enquire Now
FAQs
Begin by turning off the circuit, remove the existing device, and verify the box is compatible with 125V/20A loads. Use side-wire terminals to attach #14-10 AWG conductors, tightening to the specified 14 lbf-inch torque. Ensure the auto-grounding feature engages by connecting the ground conductor to the green screw. Mount flush to the box and secure with the provided screws. This sequence minimizes voids and ensures a solid, code-compliant installation with reliable ground.
The CR20A is a 20A, 125V duplex receptacle with a NEMA 5-20R configuration. It features brass contacts for durable conductivity, side-wire termination for easy field wiring, and a torque rating of 14 lbf-in for secure connections. It supports #14-10 AWG conductors and includes auto-grounding for enhanced safety in commercial installations.
Yes. The CR20A is specifically designed for commercial-grade power distribution, offering 125V/20A capacity, a flush-mount profile, and NEMA 5-20R compatibility. Its almond finish and durable PVC/high-impact nylon construction make it appropriate for offices, retail, and hospitality environments where reliability and longevity are critical.
The CR20A is RoHS compliant and cULus Listed, meeting environmental and safety standards for electrical devices. These certifications reduce regulatory risk, support sustainable procurement, and ensure compliance with widely adopted electrical codes. The NOM classification also appears in its certification set, reinforcing suitability for regulated installations.
Auto-grounding reduces wiring mistakes and enhances safety, potentially lowering incident-related downtime. The device accepts standard #14-10 AWG wiring and uses a robust PVC/high-impact nylon body, which extends service life in high-traffic areas. Flush mounting improves aesthetics and box fill efficiency, contributing to faster installations and lower labor costs over the product lifecycle.
