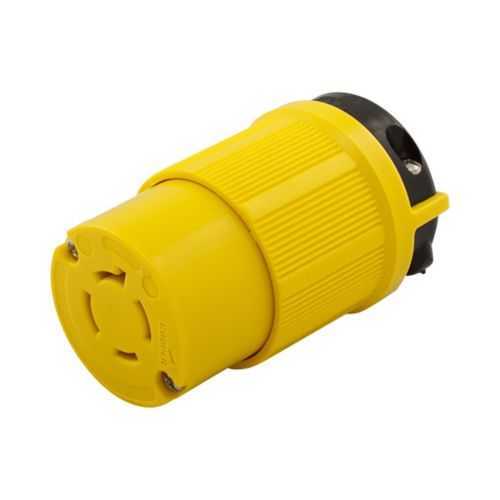

Eaton CRL1420C Locking Connector - Corrosion Resistant
Part Number: CRL1420C
Quick Summary
The Eaton CRL1420C locking connector delivers corrosion-resistant, secure power connections for industrial equipment. In harsh environments, you need a dependable, vibration-tolerant solution that minimizes downtime and maintenance. This unit carries cULus Listed, NOM certified, and CSA certified markings, reinforcing safety and regulatory compliance in critical facilities. With back wiring, a robust safety grip, and a 20A, 125/250V rating (L14-20), it supports #14-8 AWG conductors and a 0.38–1 in cord diameter, making it a versatile choice for panels, motors, and power distribution in manufacturing settings.
Product Information
Extended Description
CRL1420C Eaton: Eaton corrosion resistant locking connector , #14-10 AWG, 20A, Industrial, 125/250V, Back wiring, Yellow, Safety grip, Corrosion resistant, L14-20, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.38 to 1 in
Product Name
Eaton Arrow Hart corrosion resistant locking connector
Catalog Number
CRL1420C
UPC
040893679891
Product Length/Depth
2.34 in
Product Height
4.27 in
Product Width
2.37 in
Product Weight
0.485 lb
Certifications
cULus Listed NOM CSA certified
Amperage Rating
20A
NEMA configuration
L14-20
Operating temperature
-20 to 75 °C (-4 to 167 °F)
Torque rating
14-16 lbf-inch
Voltage rating
125/250 V
Wiring method
Back
Environmental conditions
Corrosion resistant
Environmental resistance
Corrosion resistant
Color
Yellow
Contact material
Nickel plated brass
Face/body material
Nylon
Material
Nylon
Allowable wire size
#14-8 AWG
Application
Industrial
Cord diameter
0.38-1 in (9.5 mm-25.4 mm)
Design type
Industrial grip
Device grade
Extra heavy-duty industrial specification grade
Number Of Poles
Three-pole
Type
Locking connector
Corrosion resistance protects terminations from moisture and chemicals, extending service life and lowering maintenance costs. In practice, you’ll experience fewer field failures and longer intervals between replacements in outdoor panels, washdown zones, and coastal facilities. The locking mechanism with a safety grip provides positive retention amid vibration, reducing the risk of accidental disconnections and electrical faults during high-load cycles in motors, compressors, and HVAC equipment. Back wiring delivers clean terminations and faster installs, simplifying field wiring while accommodating a wide range of cables. The nylon body and nickel-plated brass contacts offer durability and low contact resistance, ensuring reliable performance under temperature swings and mechanical wear. With a three-pole, four-wire L14-20 configuration, this connector fits common industrial power layouts and minimizes panel clutter. Design features such as the yellow color enhance visibility for quick identification in busy environments. Engineered for #14-8 AWG conductors and a cord diameter of 0.38–1 in, it integrates smoothly with Eaton’s locking devices ecosystem, reducing part variety and training needs. These attributes collectively deliver measurable ROI through reduced downtime, faster maintenance, and regulatory compliance across North American facilities.
Get a Quick Quote for a Eaton CRL1420C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CRL1420C?
Enquire Now
FAQs
To install CRL1420C with back wiring, power must be off and conductors prepared to #14-8 AWG. Remove the terminal block cover, insert conductors into the back-wiring terminals, and tighten to the specified torque (14–16 lbf-in). Confirm correct polarity and secure the connector so the locking mechanism engages fully, ensuring vibration resistance and a safe, durable connection in panels and equipment.
CRL1420C is rated for 20A at 125/250V with an L14-20 NEMA configuration. It is a three-pole, four-wire locking connector designed for industrial power distribution, motors, and generators. This configuration supports versatile three-phase and single-phase applications while maintaining secure, code-compliant terminations in demanding environments.
Yes. The connector’s corrosion-resistant nylon body and nickel-plated brass contacts are built for durability in harsh environments. Its back-wiring capability and robust locking mechanism minimize vibration-related disconnections. With a wide cord diameter range (0.38–1 in) and wire size compatibility (#14-8 AWG), it supports field wiring needs common in motor control centers, generator sets, and heavy machinery.
CRL1420C carries cULus Listed, NOM certified, and CSA certified markings. These certifications verify safety, performance, and regulatory compliance for North American installations. They help ensure the connector meets recognized standards for electrical assemblies used in industrial settings, reducing compliance risk and aiding supplier qualification and inspection processes.
Adopting CRL1420C yields ROI through reduced downtime, fewer maintenance cycles, and longer service life due to corrosion resistance and robust construction. The locking design minimizes disconnections during vibration, while back wiring speeds installation and simplifies future servicing. Over time, these factors translate into lower labor costs, improved equipment uptime, and safer, compliant power connections.
