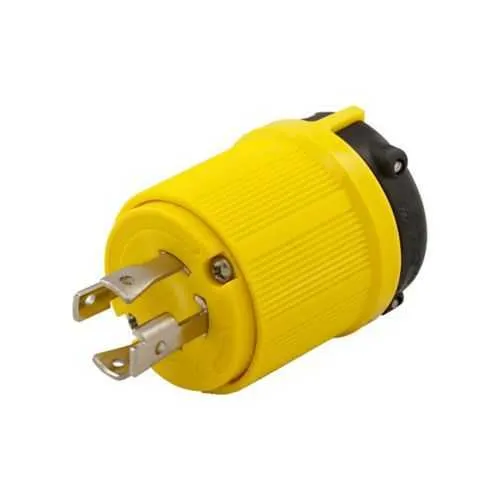

Eaton CRL1430P Locking Plug - L14-30, 125/250V, RoHS
Part Number: CRL1430P
Quick Summary
The Eaton CRL1430P locking plug provides corrosion-resistant, secure power connections for industrial equipment in demanding environments. End-users often struggle with corrosion, loose connections, and downtime during field changes. This device carries RoHS compliance and NOM cULus listings, supporting global and North American installations, and it’s designed to meet extra heavy-duty industrial spec. With back wiring and a 30A, 125/250V rating in an L14-30, three-pole, four-wire configuration, it delivers robust performance under challenging conditions. The durable nylon body, nickel-plated brass contacts, and corrosion resistance translate into lower maintenance costs and longer service life, while the safety-grip design speeds installation and ensures reliable, code-compliant connections in industrial control panels.
Product Information
Extended Description
CRL1430P Eaton: Eaton corrosion resistant locking plug, #14-10 AWG, 30A, Industrial, 125/250V, Back wiring, Yellow, Safety grip, Corrosion resistant, L14-30, Three-pole, Four-wire, Thermoplastic, 0.63 to 1.16 in
Product Name
Eaton Arrow Hart corrosion resistant locking plug
Catalog Number
CRL1430P
UPC
040893678771
Product Length/Depth
2.31 in
Product Height
3.75 in
Product Width
2.31 in
Product Weight
0.394 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
30A
NEMA configuration
L14-30
Operating temperature
-20 to 75 °C (-4 to 167 °F)
Torque rating
14-16 lbf-inch
Voltage rating
125/250 V
Wiring method
Back
Environmental conditions
Corrosion resistant
Environmental resistance
Corrosion resistant
Color
Yellow
Contact material
Nickel plated brass
Face/body material
Nylon
Material
Nylon
Allowable wire size
#14-8 AWG
Application
Industrial
Cord diameter
0.63-1.16 in (15.9-29.4 mm)
Design type
Industrial grip
Device grade
Extra heavy-duty industrial specification grade
Number Of Poles
Three-pole
Type
Locking plug
Corrosion resistance and rugged materials extend service life in challenging environments. The locking plug uses a nylon face/body paired with nickel-plated brass contacts, delivering reliable conduction even in humid or industrial wash-down settings. This combination minimizes maintenance cycles and helps keep critical equipment online. Back wiring and an L14-30, three-pole, four-wire configuration support clean, organized installations. With a 30A rating and 125/250V capability, it handles demanding loads while reducing voltage drop and overheating risk. The design ergonomic safety grip accelerates field wiring and improves installer confidence. Industrial grip design and torque rating of 14-16 lbf-in ensure secure mating and repeatable performance. Operators can tighten with standard tools, even while wearing gloves, lowering the chance of loose connections. The locking mechanism provides positive retention, minimizing accidental unplugging in mobile or rugged equipment. Compliance and certifications guide procurement and regulatory adherence. RoHS compliance reduces hazardous substance concerns, while NOM/cULus listings support safe use in North American panels. These certifications streamline spec reviews and supplier qualification without sacrificing performance. Wire compatibility and physical footprint enable flexible deployments across varied equipment. Allowable wire size #14-8 AWG and cord diameter 0.63-1.16 in cover a wide range of field cables, while compact dimensions keep installation within tight control panels. Yellow color enhances visibility for safe, quick identification. Industry context and ROI considerations show that dependable connectors reduce downtime and service calls, while the CRL1430P’s corrosion resistance and clear wiring method align with maintenance schedules and asset reliability goals.
Get a Quick Quote for a Eaton CRL1430P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CRL1430P?
Enquire Now
FAQs
Installations use back-wiring with #14-8 AWG conductors and a cord diameter of 0.63 to 1.16 inches. Insert wires into the back terminals and tighten to 14–16 in-lbf. The nylon body and yellow housing aid visibility, while the locking plug ensures positive retention during panel operations.
The unit is rated for 30A at 125/250V and configured as three-pole, four-wire, matching the L14-30 standard. Its locking mechanism provides secure mating in demanding environments, reducing unplugging during vibration or movement in control panels and portable equipment.
Yes. The CRL1430P is RoHS compliant and NOM/cULus listed, supporting safe adoption in global manufacturing and North American electrical installations while aligning with regional regulatory expectations.
The nylon body resists environmental corrosion, extending service life in humid or wash-down environments. This reduces maintenance frequency and supports longer intervals between replacements, contributing to higher asset reliability and lower lifecycle costs.
By delivering secure, corrosion-resistant connections with easy back-wiring and reliable mating, the CRL1430P minimizes downtime, decreases field servicing, and lowers total cost of ownership in rugged industrial installations.
