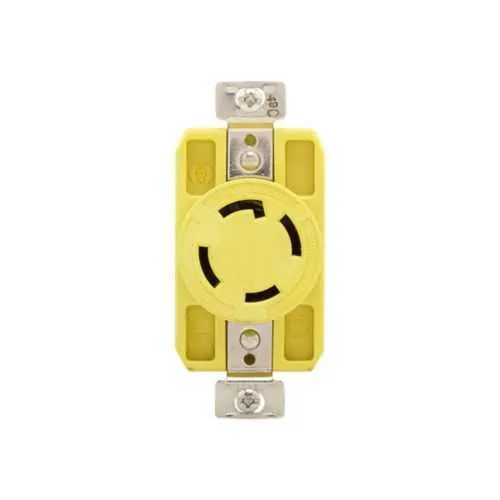

Eaton CRL1430R Locking Receptacle - L14-30, 30A, UL Listed
Part Number: CRL1430R
Quick Summary
CRL1430R locking receptacle by Eaton provides corrosion-resistant power delivery for industrial equipment. Maintenance downtime and improper terminations are common pain points in harsh environments, driving the need for rugged, field-terminable components. This unit carries UL Listed, NOM listed, and CSA certifications with RoHS compliance to meet stringent electrical and environmental standards. Designed for industrial panels and mobile equipment, it supports back-and-side wiring for flexible terminations and quick panel integration. With a visible yellow housing and 125/250V ratings, it enhances safety, traceability, and reliability across demanding applications while aligning with long-term maintenance and compliance goals.
Product Information
Extended Description
CRL1430R Eaton: Eaton corrosion resistant locking receptacle, #14-10 AWG, 30A, Industrial, 125/250V, Back and side wiring, Yellow, Single, Corrosion resistant, L14-30, Three-pole, Four-wire, Thermoplastic
Product Name
Eaton Arrow Hart corrosion resistant locking receptacle
Catalog Number
CRL1430R
UPC
040893677491
Product Length/Depth
1.62 in
Product Height
3.28 in
Product Width
1.12 in
Product Weight
0.32 lb
Compliances
RoHS Compliant Federal Specifications Classification W-C375
Certifications
NOM cULus Listed UL Listed CSA certified
Amperage Rating
30A
NEMA configuration
L14-30
Operating temperature
-20 to 70 °C (-4 to 158 °F)
Torque rating
20 lbf-inch
Voltage rating
125/250 V
Wiring method
Back and side
Environmental conditions
Corrosion resistant
Environmental resistance
Corrosion resistant
Color
Yellow
Contact material
Nickel plated brass
Face/body material
Glass filled nylon
Material
Thermoplastic
Allowable wire size
#14-10 AWG
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Number Of Poles
Three-pole
Number of gangs
Single-gang
Receptacle type
Locking
Type
Locking receptacle
Corrosion-resistant thermoplastic body delivers extended service life in harsh environments, reducing maintenance cycles and replacement costs while maintaining electrical integrity in outdoor panels and dirty environments. Business impact: lower total cost of ownership and improved uptime in critical processes; application: industrial locking receptacle deployments in manufacturing plants and outdoor enclosures. Nickel-plated brass contacts paired with a robust 30A, 125/250V rating minimizes contact resistance, enabling consistent current delivery and safer hot-plug operations; application: high-load equipment connections with dependable performance. Back and side wiring enables fast termination and flexible installation, shortening panel build times and allowing on-site field adjustments without special tooling; business impact: faster project completion and reduced on-site labor costs. Certifications and RoHS compliance provide regulatory assurance for highly regulated industries; application: food processing, pharma, and general manufacturing where compliance is non-negotiable. Operating temperature range of -20 to 70 °C and a 20 lbf-in torque rating ensure secure fit and reliable mating under vibration and temperature swings; business impact: improved reliability and reduced risk of loose connections in automated systems. Three-pole, four-wire L14-30 configuration supports safe, balanced power distribution for three-phase equipment with neutral and ground paths; application: panel power distribution in industrial automation environments. Overall, the product’s thermoplastic body, nickel-plated contacts, and modular design deliver a rugged, cost-conscious solution that fits standard #14-10 AWG conductors with straightforward installation and robust environmental resistance.
Get a Quick Quote for a Eaton CRL1430R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CRL1430R?
Enquire Now
FAQs
The CRL1430R supports #14-10 AWG conductors with back and side wiring, enabling straightforward terminations in compact panels. First, strip conductors to the recommended length, terminate into the device’s terminals, then tighten to the specified torque of 20 lbf-in to ensure a secure, vibration-resistant connection. Use proper strain relief and follow NEC guidelines for panel fill and grounding.
CRL1430R carries UL Listed, NOM certified, and CSA certification, with RoHS compliance and Federal Specifications W-C375. These approvals verify safe electrical performance, international and regional regulatory compliance, and reduced risk in regulated industries such as manufacturing, food processing, and pharmaceutical environments.
Yes. The device features a corrosion-resistant thermoplastic housing and nickel-plated brass contacts designed for durability in challenging environments. Its yellow color aids quick identification, while the -20 to 70 °C operating range and robust mechanical design ensure reliable operation in outdoor enclosures, wash-down areas, and harsh industrial settings.
This is a three-pole, four-wire L14-30 locking receptacle rated at 30A and 125/250V. It is commonly used to power industrial equipment and panels requiring a locking connection to prevent accidental disconnections, especially in automation systems, motors, and heavy-duty equipment that rely on stable, three-phase configurations.
The locking design and corrosion resistance reduce maintenance intervals by minimizing oxidation and contact wear, lowering the risk of unplanned downtime. The compatibility with standard conductors and simple back-and-side wiring speeds up installation, reducing labor costs and enabling quicker line changes or expansions, contributing to a favorable return on investment over time.
