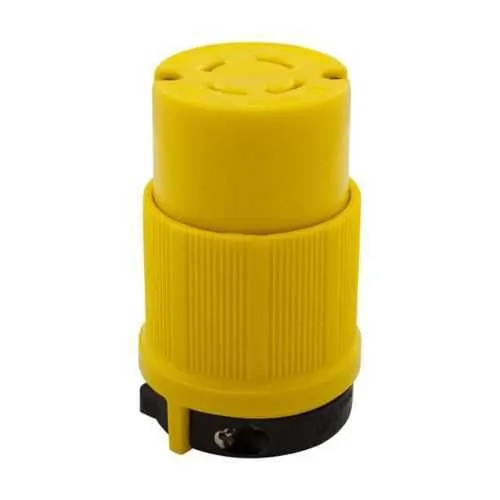

Eaton CRL1620C Locking Connector - L16-20, 3Ø 480V
Part Number: CRL1620C
Quick Summary
The Eaton CRL1620C locking connector delivers secure, corrosion-resistant power connections for industrial equipment. When field wiring loosens or corrodes, downtime and unsafe terminations follow—this is where a reliable locking solution matters. It carries RoHS compliance and cULus Listing NOM, underscoring regulatory readiness, while a nylon body and nickel-plated brass contacts resist harsh environments. Designed for 480 V three-phase systems and back-wiring with #14-8 AWG conductors, it accommodates a range of industrial installations. The corrosion-resistant design and safety grip simplify maintenance and reduce rework, helping procurement teams standardize components and improve uptime across plants.
Product Information
Extended Description
CRL1620C Eaton: Eaton corrosion resistant locking connector , #14-8 AWG, 20A, Industrial, 480V, Back wiring, Yellow, Safety grip, Corrosion resistant, L16-20, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.38 to 1 in
Product Name
Eaton Arrow Hart corrosion resistant locking connector
Catalog Number
CRL1620C
UPC
040893679952
Product Length/Depth
2.19 in
Product Height
3.75 in
Product Width
2.19 in
Product Weight
0.485 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
20A
NEMA configuration
L16-20
Operating temperature
-20 to 75 °C (-4 to 167 °F)
Voltage rating
3Ø 480 V
Wiring method
Back
Environmental conditions
Corrosion resistant
Environmental resistance
Corrosion resistant
Color
Yellow
Contact material
Nickel plated brass
Face/body material
Nylon
Material
Nylon
Allowable wire size
#14-8 AWG
Application
Industrial
Cord diameter
0.38-1 in (9.5 mm-25.4 mm)
Design type
Industrial grip
Device grade
Extra heavy-duty industrial specification grade
Number Of Poles
Three-pole
Type
Locking connector
Feature: Corrosion-resistant locking connector design. Benefit: Extends service life in harsh environments and reduces maintenance costs by preventing premature connector failure. Application: Outdoor equipment and wash-down areas where exposure to moisture and chemicals is common. Feature: Back wiring method with #14-8 AWG capacity. Benefit: Faster field termination and fewer wiring mistakes, improving installation efficiency and consistency across multiple machines. Application: Motor starters, power distribution panels, and control cabinets with diverse wiring needs. Feature: NEMA configuration L16-20 and 20A rating. Benefit: Standardized, reliable three-phase connections that simplify procurement and cabinet design, reducing part variety and inventory costs. Application: Industrial machinery and heavy-duty equipment using 480 V three-phase power. Feature: Material integrity nylon body and nickel-plated brass contacts. Benefit: Robust mechanical strength and superior electrical conductivity with corrosion resistance, lowering replacement frequency. Application: Harsh industrial environments and high-vibration installations. Feature: Safety grip and color-coded yellow design. Benefit: Enhanced user handling, safer installations, and clearer wiring identification, boosting operator confidence. Application: Maintenance, installation, and field service teams. Feature: RoHS Compliant and cULus Listed NOM. Benefit: Regulatory alignment and procurement risk reduction, enabling compliant sourcing across global facilities. Application: Compliance-driven purchase for OEMs and end-users in regulated industries.
Get a Quick Quote for a Eaton CRL1620C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CRL1620C?
Enquire Now
FAQs
The CRL1620C supports a three-pole, four-wire L16-20 configuration rated for 20A at 480V, using a back-wiring method. It accepts #14-8 AWG conductors, enabling flexible field wiring for most industrial panels and motors. This combination simplifies panel design and speeds up commissioning while maintaining a secure, Locking connector interface.
The connector uses a nylon body with nickel-plated brass contacts to provide robust corrosion resistance, aiding reliability in outdoor and harsh indoor environments. This reduces maintenance frequency and the risk of connection failures due to environmental exposure, which translates to higher uptime for machinery and distribution systems.
Yes. The CRL1620C is RoHS Compliant and cULus Listed NOM, aligning with global regulatory requirements and easing compliance during audits and supplier qualification. These certifications help ensure procurement teams meet sustainability and safety standards without sacrificing performance.
Common applications include industrial machinery, power distribution panels, and other equipment powered by 480V three-phase systems. The locking design, back-wiring capability, and mechanical robustness make it suitable for motors, drives, and distributed control setups in manufacturing environments.
The locking mechanism reduces the likelihood of accidental disconnections, while the corrosion-resistant construction lowers replacement and service costs over time. Together with standardized wiring and regulatory compliance, this translates to lower maintenance labor, fewer downtime events, and improved total cost of ownership for industrial installations.
