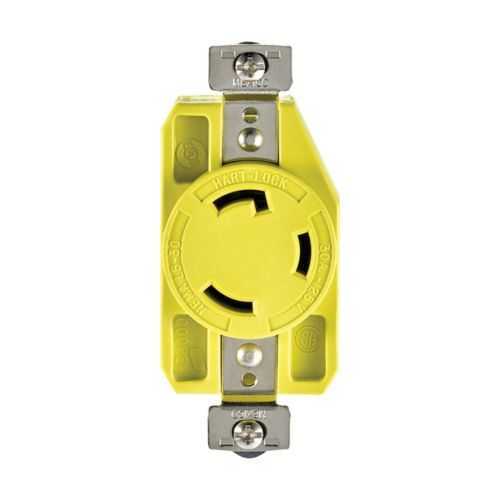

Eaton CRL530R Locking Receptacle - Corrosion Resistant
Part Number: CRL530R
Quick Summary
Eaton CRL530R locking receptacle provides rugged, corrosion resistant power connections for industrial environments. Engineers frequently battle corrosion, moisture ingress, and loose connections that trigger downtime and costly maintenance. This unit carries UL Listed, cULus Listed, and CSA certifications with RoHS compliance and Federal Specifications W-C375 to help meet rigorous industry standards. With back and side wiring, 30A at 125V, and a two-pole L5-30 design, it delivers reliable, field-installable performance that scales across equipment and facilities. Built for tough duty, its thermoplastic body, glass-filled nylon face, and nickel-plated brass contacts contribute to long service life in harsh environments. Choosing CRL530R helps maintenance teams standardize replacements and simplify procurement across electrical panels and mobile equipment.
Product Information
Extended Description
CRL530R Eaton: Eaton corrosion resistant locking receptacle, #14-10 AWG, 30A, Industrial, 125V, Back and side wiring, Yellow, Single, Corrosion resistant, L5-30, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart corrosion resistant locking receptacle
Catalog Number
CRL530R
UPC
040893677156
Product Length/Depth
1.54 in
Product Height
4.19 in
Product Width
0.75 in
Product Weight
0.3 lb
Compliances
RoHS Compliant Federal Specifications Classification W-C375
Certifications
cULus Listed NOM CSA certified UL Listed
Amperage Rating
30A
NEMA configuration
L5-30
Operating temperature
-20 to 70 °C (-4 to 158 °F)
Torque rating
20 lbf-inch
Voltage rating
125 V
Wiring method
Back and side
Environmental conditions
Corrosion resistant
Environmental resistance
Corrosion resistant
Color
Yellow
Contact material
Nickel plated brass
Face/body material
Glass filled nylon
Material
Thermoplastic
Allowable wire size
#14-10 AWG
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Number Of Poles
Two-pole
Number of gangs
Single-gang
Receptacle type
Locking
Type
Locking receptacle
Feature: Corrosion resistant construction using a glass-filled nylon face and thermoplastic body with nickel plated brass contacts. Business Impact: Extends service life in harsh environments and reduces maintenance cycles, resulting in lower total cost of ownership. Application: Industrial control panels, outdoor equipment, and washdown areas where moisture and chemical exposure are common. This combination also supports RoHS compliance and reduces risk during audits. Feature: Locking mechanism design. Business Impact: Provides a secure connection that resists vibration and accidental disconnection, improving equipment uptime and operator safety. Application: Portable generators, mobile power carts, and high-vibration manufacturing lines where reliability matters. Industry context: minimizes nuisance outages and eliminates rework caused by loose plugs. Feature: Back and side wiring method with #14-10 AWG capability. Business Impact: Flexible, fast installations that cut wiring time and simplify field retrofits. Application: Retrofit projects and new builds across industrial facilities, enabling quick upgrades without changing cabinet layouts. Feature: 30A, 125V, L5-30 two-pole configuration. Business Impact: Aligns with common industrial power standards, delivering adequate current capacity for heavy equipment while maintaining compact receptacle footprints. Application: Heavy machinery, compressors, presses, and power distribution panels where consistent performance is critical. Feature: Material and finish reliability. Business Impact: Durable glass-filled nylon and nickel plated brass contacts resist wear, enabling fewer replacements and steady electrical contact integrity. Application: Long-life installations in challenging environments, with minimal maintenance interruptions. Feature: Certifications and compliance landscape. Business Impact: Reduces procurement risk, eases compliance tracking, and supports regulatory programs with UL, cULus, CSA, RoHS, and W-C375 classification. Application: Supplier qualification, panel builds, and regulated facilities where documentation matters.
Get a Quick Quote for a Eaton CRL530R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CRL530R?
Enquire Now
FAQs
Power must be off before installation. Prepare #14-10 AWG conductors and route them via the preferred wiring method (back or side). Secure conductors under the terminal screws with proper torque (20 lbf-in). Match the L5-30 two-pole configuration to the receptacle panel, then verify a solid lock and strain relief to prevent loosening during vibration.
Yes, the CRL530R is described as corrosion resistant, making it suitable for challenging environments where moisture and chemicals are present. It carries RoHS compliance and standard industry certifications, but verify enclosure ratings and specific environmental conditions for outdoor installations or washdown zones.
The CRL530R carries UL Listed, cULus Listed, and CSA certified marks, along with RoHS compliance and Federal Specifications classification W-C375. These certifications help streamline procurement, support regulatory compliance, and reduce supplier risk in regulated industries.
Yes, the receptacle supports #14-10 AWG conductors. This range enables flexible wiring for most standard industrial circuits while maintaining secure connections and appropriate torque spec for reliable performance.
The CRL530R delivers secure locking connections, reducing disconnections due to vibration. Its corrosion resistance and robust materials extend service life, lowering maintenance costs. With UL, CSA, and RoHS compliance, procurement is simplified, and installation remains straightforward for power distribution panels and mobile equipment across industrial facilities.
