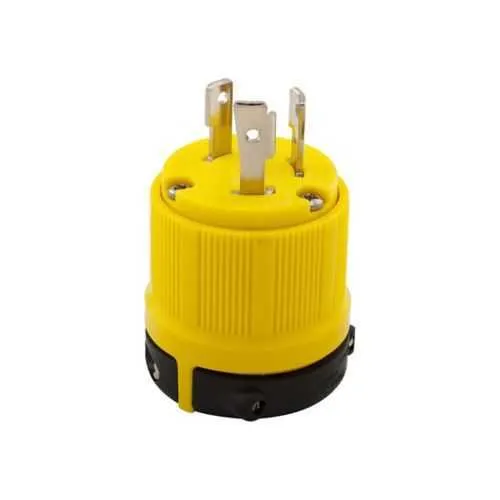

Eaton CRL630P Locking Plug - RoHS
Part Number: CRL630P
Quick Summary
The Eaton CRL630P locking plug is a corrosion‑resistant connector designed for industrial equipment and power distribution. It helps reduce maintenance downtime by delivering secure, back‑wired connections that resist loosening in tough environments. Certified RoHS compliant and listed to cULus with CSA certification, it meets key safety and environmental requirements for regulated facilities. Its L6-30 configuration at 30A and 250V supports high‑current feeds, while the nylon body and nickel‑plated brass contacts enable reliable operation across temperature swings. From machine tools to conveyor systems, this locking plug delivers consistent performance, improving uptime and simplifying maintenance planning in industrial plants.
Product Information
Extended Description
CRL630P Eaton: Eaton corrosion resistant locking plug, #14-10 AWG, 30A, Industrial, 250V, Back wiring, Yellow, Safety grip, Corrosion resistant, L6-30, Two-pole, Three-wire, Thermoplastic, 0.38 to 1 in
Product Name
Eaton Arrow Hart corrosion resistant locking plug
Catalog Number
CRL630P
UPC
040893678443
Product Length/Depth
2 in
Product Height
2.34 in
Product Width
2.12 in
Product Weight
0.38 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM CSA certified
Amperage Rating
30A
NEMA configuration
L6-30
Operating temperature
-20 to 75 °C (-4 to 167 °F)
Torque rating
14-16 lbf-inch
Voltage rating
250 V
Wiring method
Back
Environmental conditions
Corrosion resistant
Environmental resistance
Corrosion resistant
Color
Yellow
Contact material
Nickel plated brass
Face/body material
Nylon
Material
Nylon
Allowable wire size
#14-8 AWG
Application
Industrial
Cord diameter
0.38-1 in (9.5 mm-25.4 mm)
Design type
Industrial grip
Device grade
Extra heavy-duty industrial specification grade
Number Of Poles
Two-pole
Type
Locking plug
Corrosion‑resistant construction extends service life and reduces replacement costs in harsh environments. The nylon body paired with nickel‑plated brass contacts delivers reliable electrical performance even under vibration and moisture exposure, improving equipment uptime. Back wiring simplifies field terminations, enabling faster installation and easier inspector access, which lowers labor costs and downtime. The L6‑30 two‑pole, three‑wire configuration supports standard 30A, 250V industrial circuits, ensuring compatibility with common power feeds and reducing the need for adapters or custom cabling. A bright yellow color enhances visibility for quick identification, improving safety in busy facilities. The plug’s operating temperature range of -20 to 75 °C supports outdoor and indoor applications, while RoHS compliance and multiple certifications help meet regulatory requirements. This combination translates to lower lifecycle costs and improved field reliability for industrial automation and electrical systems.
Get a Quick Quote for a Eaton CRL630P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CRL630P?
Enquire Now
FAQs
CRL630P supports back wiring for straightforward field terminations and requires secure torque of 14–16 in‑lb to ensure a robust connection. Verify cable size (#14-8 AWG) and ensure the L6-30 receptacle matches your equipment’s inlet configuration. Use the correct enclosure knockouts and strain relief to maintain environmental ratings and keep the yellow housing clearly visible for safe operation.
The CRL630P is designed for 30A at 250V with a two-pole, three-wire L6-30 configuration. Nickel-plated brass contacts provide reliable conductivity, while the durable nylon body resists corrosion and mechanical wear. Its back-wiring method simplifies field terminations, reducing installation time and ensuring a secure, vibration-resistant connection in demanding environments.
Yes, the CRL630P is RoHS compliant and listed to cULus with NOM and CSA certifications. This indicates compliance with environmental and safety standards, simplifies regulatory approvals for projects across regions, and supports safer end-of-life disposal. These certifications help users meet internal quality controls and external audits with confidence.
CRL630P supports allowable wire sizes of #14-8 AWG and a cord diameter range of 0.38–1 in. This flexibility accommodates typical power cords used in industrial settings, enabling secure back wiring and reliable termination across a range of equipment feeds without adapter changes.
The corrosion-resistant nylon body and rugged nickel‑plated brass contacts reduce maintenance frequency by limiting corrosion and loosening from vibration. Faster back-wiring terminations shorten commissioning times, lowering labor costs. The durable design also reduces replacement parts over the life of the system, improving uptime and overall return on investment for harsh‑environment facilities.
