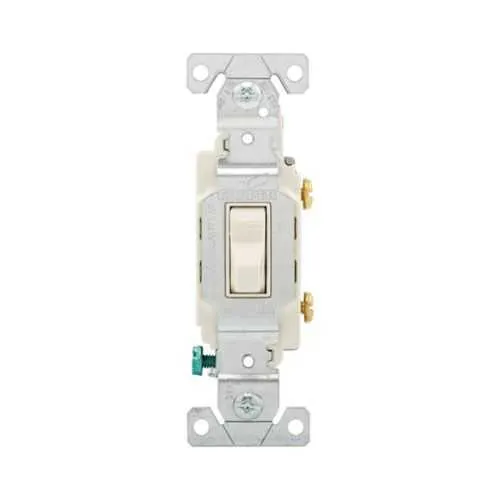

Eaton CS115LA Toggle Switch - for Industry cULus Listed
Part Number: CS115LA
Quick Summary
The Eaton CS115LA Toggle Switch is a commercial-grade control device designed for reliable on/off operation in lighting and motor circuits. Engineers wrestling with cramped panels, miswiring, or switches that fail under daily commercial duty gain confidence with a compact, flush-mount form and proven terminal design. It carries cULus Listed, NOM, and Federal Specification Classification 6241 05 certifications, providing trusted safety, traceability, and regulatory alignment. Rated at 15A and 120/277V with side wiring and brass terminal enclosure, it supports a wide load mix while simplifying installation and service. Coupled with its durable PVC body and light almond finish, the CS115LA offers dependable performance for equipment builders, panel shops, and facility managers aiming for uptime and cost control.
Product Information
Extended Description
CS115LA Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Side wire, Screw, Light almond, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS115LA
UPC
032664644856
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.11 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Side wire
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
ELV MLV FLR LED Fan INC HAL CFL Motor Control
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Color
Light almond
Feature: 15A, 120/277V single-pole rating; Business Impact: supports common commercial loads with reliable performance and minimal nuisance tripping; Application: lighting and small motor circuits in offices, retail, and break rooms. Feature: Flush mounting and compact footprint; Business Impact: reduces panel depth requirements and eases retrofit work; Application: crowded enclosures and retrofit projects where space is at a premium. Feature: Side-wire termination for #14-10 AWG with screw connectors; Business Impact: simplifies field wiring and improves termination reliability; Application: new installations and service upgrades in commercial facilities. Feature: Load type compatibility including ELV, MLV, FLV, LED, Fan, INC, HAL, CFL, Motor Control; Business Impact: one switch covers diverse loads, reducing part variety and inventory costs; Application: integrated control across lighting, fans, and motion systems. Feature: Brass terminal enclosure with PVC body and light almond color; Business Impact: enhances durability and corrosion resistance while ensuring predictable color coding for installation; Application: durable panels and visible applications in industrial environments. Feature: Certifications and compliance (cULus Listed, NOM, Federal Specification 6241 05); Business Impact: strengthens audit readiness and regulatory compliance; Application: procurement for regulated commercial installations and standardized panel builds.
Get a Quick Quote for a Eaton CS115LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS115LA?
Enquire Now
FAQs
CS115LA uses side-wire termination for #14-10 AWG conductors with screw connectors, simplifying field wiring during new installations or upgrades. Its flush mounting and compact footprint reduce panel depth requirements, making it easier to fit into crowded control panels while ensuring secure, vibration-resistant connections for long-term reliability.
The CS115LA is rated 15A at 120/277V and supports a broad load mix including ELV, MLV, FLV, LED, Fan, Incandescent, CFL, Halogen, and other motor-control loads. This versatility minimizes part variety, improves stock efficiency, and delivers predictable performance across lighting and small motor applications in commercial settings.
Yes. With load-type support that includes LED and motor-related loads, the CS115LA handles modern LED lighting alongside fans and other equipment. Its robust contact materials, brass terminals, and side-wire termination help ensure stable operation, reducing fingertip maintenance and rework in busy commercial environments.
CS115LA carries cULus Listed, NOM, and Federal Specification Classification 6241 05 certifications. These credentials support safety, regulatory compliance, and traceability for North American installations, helping you meet internal standards, customer audits, and industry requirements without guesswork.
The combination of flush mounting, side-wire terminations, durable PVC body, and brass terminal enclosure reduces installation time and service calls. Its compatibility with a wide load range minimizes spare parts, while certifications simplify compliance. Overall, you gain uptime, reduced labor costs, and streamlined procurement for commercial control panels.
