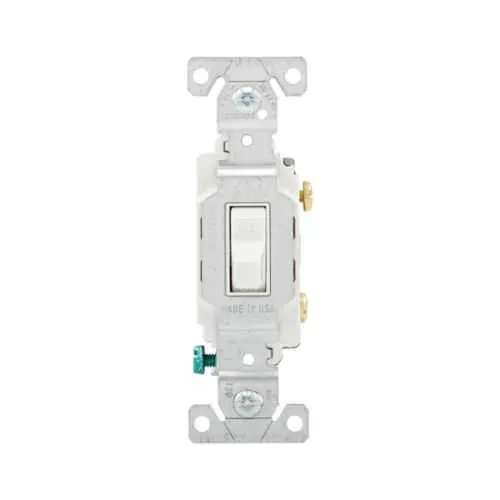

Eaton CS115W Toggle Switch - cULus Listed
Part Number: CS115W
Quick Summary
Eaton CS115W Toggle Switch is a commercial-grade device that controls circuits for lighting, fans, and motors. In busy facilities, downtime and installation errors can derail maintenance and project timelines. This unit is cULus listed and complies with NOM and Federal Specification Classification 6241 05, ensuring reliable performance in regulated environments. With flush mounting and side-wire terminals, installation is straightforward in standard wall boxes, reducing field labor and miswiring risks. The 15A, 120/277V rating covers most commercial lighting and small motor loads, while the durable brass enclosure and PVC body withstand daily use. This combination supports faster procurement and consistent electrical protection across projects, improving total cost of ownership and maintenance planning.
Product Information
Extended Description
CS115W Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Side wire, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS115W
UPC
032664487439
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.1 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Side wire
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
FLR Motor Control ELV INC Fan LED CFL HAL MLV
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Color
White
Feature: 15A, 120/277V rating enables reliable control of common commercial lighting and small motors. Benefit: Supports predictable performance and reduces the need for multiple part numbers in a project. Application: Suitable for office suites, retail spaces, and light industrial facilities. Feature: Side-wire terminals and screw connectors simplify field wiring and reduce installation errors. Benefit: Speeds up retrofit projects and minimizes training requirements for maintenance staff. Application: Ideal for retrofit work in existing commercial wiring enclosures. Feature: Flush mounting design provides a clean, code-compliant installation. Benefit: Improves aesthetics and simplifies compliance inspections, lowering rework risk. Application: Wall box installations in commercial interiors. Feature: Broad load compatibility including LED, CFL, Halogen, and motor-control loads (FLR, ELV, MLV). Benefit: Reduces the need to stock multiple switches for mixed lighting environments, cutting inventory costs. Application: Lighting control and small-motor circuits in offices, schools, and healthcare facilities. Feature: Brass terminal enclosure and PVC body offer durability and corrosion resistance. Benefit: Longer service life with fewer field failures, reducing maintenance costs. Application: Harsh or high-traffic commercial environments where reliability matters. Feature: UL-related certifications and Federal Specification alignment support compliance and procurement. Benefit: Eases spec sheet approvals and reduces qualification time for large projects. Application: Enterprise-scale electrical procurement and BIM specifications.
Get a Quick Quote for a Eaton CS115W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS115W?
Enquire Now
FAQs
CS115W supports side-wire terminations rated for #14-10 AWG conductors, allowing straightforward field wiring without specialized lugs. This simplifies retrofit and new installations, reduces wiring errors, and speeds up panel and wall-box assembly. The screw connectors provide a secure, code-compliant connection that remains reliable over time, even in high-traffic commercial spaces.
CS115W is rated for 15A at 120/277V and supports a wide range of loads, including LED, CFL, incandescent, and motor-control applications (FLV, ELV, MLV). This breadth reduces the need for multiple switches in mixed-load environments and ensures dependable switching for lighting and small-motor circuits in commercial settings.
Yes. The CS115W is designed for commercial applications with single-pole operation, flush mounting, and compatibility with lighting and small-motor loads. Its 15A rating at 120/277V makes it suitable for lighting control, ceiling fans, and select HVAC-related controls, delivering reliable operation in busy facilities.
CS115W carries cULus listing, NOM compliance, and Federal Specification Classification 6241 05. These certifications validate safety, performance, and regulatory adherence, streamlining spec approvals, inspections, and procurement for regulated projects while reducing risk of non-compliance in commercial installations.
Choosing CS115W supports faster installation with side-wire terminals, reducing labor time during commissioning. Its durable brass enclosure and PVC body withstand daily wear, lowering maintenance calls. The wide load compatibility minimizes stocking multiple variants, leading to lower inventory costs and a lower total cost of ownership over the product’s lifecycle.
