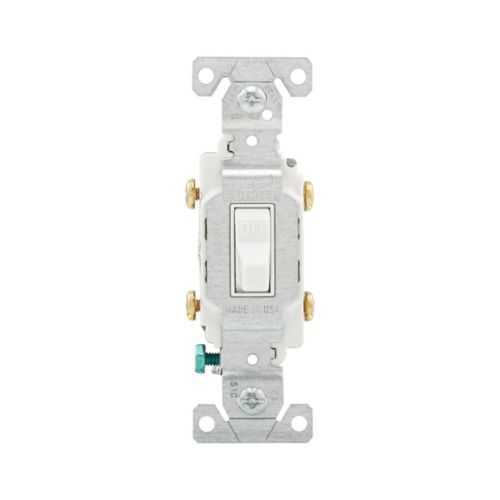

Eaton CS215W Toggle Switch Commercial Grade - cULus Listed
Part Number: CS215W
Quick Summary
The Eaton CS215W Toggle Switch is a commercial-grade control for turning lighting and motor circuits on and off. Facility managers frequently struggle with durability, wiring flexibility, and quick, code-compliant installations in busy environments. It carries cULus Listed and NOM certifications with Federal Specification 6241 05, strengthening code approvals and cross-border use. Designed for flush mounting and side-wire wiring, it supports 120/277 V loads and a two-pole configuration, delivering reliable performance for lighting, fans, and motor control in commercial settings. By standardizing on a single, robust switch with broad load compatibility, maintenance teams reduce spare parts and training time. This translates to shorter project cycles and lower lifecycle costs in facilities programs.
Product Information
Extended Description
CS215W Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Side wire, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole, Dual-pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS215W
UPC
032664487606
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.15 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Two-pole
Application
Commercial
Wiring method
Side wire
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Load type
INC MLV HAL Fan CFL FLR ELV LED Motor Control
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Color
White
The CS215W is a two-pole toggle switch rated at 15A and 120/277 V, enabling reliable control of lighting and motor loads with a single device. This capability reduces panel clutter, simplifies wiring, and shortens commissioning time in commercial spaces where downtime matters. Wiring and mounting features include side wire connections and screw terminals to support flexible field wiring across multiple circuit types. Flush mounting preserves panel aesthetics and minimizes protrusion in confined enclosures. Brass terminal enclosure improves durability in busy electrical rooms, while the PVC body resists environmental wear. Together, these features accelerate installations, improve terminations, and reduce service calls in retrofit projects and new builds. Load compatibility spans incandescent, LED, CFL, halogen, motor control, and HVAC fan applications, with wiring up to #14-10 AWG. The two-pole design ensures simultaneous control of related conductors, enhancing safety and coordination with other devices. Durability and compliance are reinforced by cULus Listed, NOM, and Federal Specification Classification 6241 05, easing code approvals and documentation. The compact footprint and light weight (0.15 lb) support easy handling, stocking, and integration into standard electrical boxes, reducing inventory costs and waste.
Get a Quick Quote for a Eaton CS215W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS215W?
Enquire Now
FAQs
Install the CS215W by confirming a two-pole configuration and mounting it flush in a standard wall box. Use the side-wire terminals for 14-10 AWG conductors and secure with the included screws. Verify 120/277 V supply and ensure ground continuity per local code before energizing.
The CS215W is rated for 15A at 120/277 V and supports a wide load set including incandescent, LED, CFL, halogen, motor control, and fan applications. It uses two-pole operation with side-wire connections for flexible field wiring.
Yes. Its two-pole design, 15A rating, and broad load compatibility make it suitable for commercial lighting, fans, and motor-driven equipment in offices, retail, healthcare, and light-industrial environments.
CS215W is cULus Listed and NOM with Federal Specification Classification 6241 05. These certifications support regulatory approvals, cross-border use, and consistent compliance with safety and performance standards in construction and retrofit projects.
With fewer parts to stock, standardization reduces inventory and training costs. Its durable build minimizes maintenance intervals, lowers downtime, and accelerates project completion, delivering measurable ROI in facilities management and ongoing operations.
