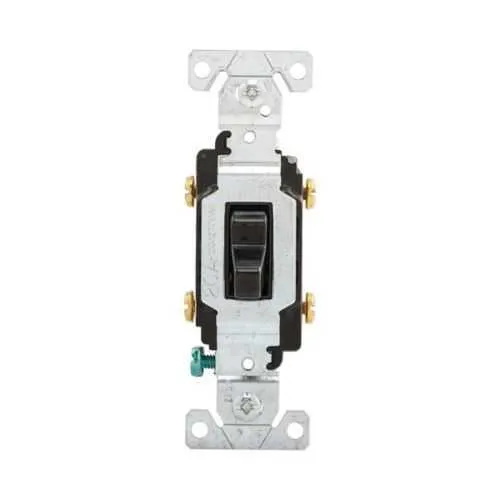

Eaton CS220BK Commercial Toggle Switch - cULus Listed
Part Number: CS220BK
Quick Summary
The Eaton CS220BK commercial toggle switch is designed to control lighting, fans, and motor loads in commercial panels. In tight enclosures and on fast-track installations, engineers frequently confront wiring rigidity, accessibility issues, and the cost of rework. This model addresses those challenges with side-wire terminals, a flush-mount profile, and brass terminal enclosure for secure, durable connections. Certified cULus Listed with NOM and Federal Specification 6241 05, it meets rigorous safety and performance standards essential for building codes. With 20A at 120/277V and a compact footprint, it delivers reliable control while simplifying procurement through a single, versatile commercial-grade solution.
Product Information
Extended Description
CS220BK Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Flush, 120/277V, Side wire, Screw, Black, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole, Dual-pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS220BK
UPC
032664555923
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.137 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Two-pole
Application
Commercial
Wiring method
Side wire
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Load type
ELV CFL Motor Control MLV HAL INC LED Fan FLR
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Color
Black
The CS220BK provides a robust 20A rating at 120/277V in a two-pole design, enabling reliable control of lighting, fans, and motors in commercial panels. Business impact: it reduces the number of different devices needed on a panel, simplifies spare parts planning, and speeds up commissioning. Application: ideal for office buildings, retail spaces, and industrial facilities where multiple load types are present. The side-wire wiring method and flush-mount profile improve installation efficiency, save panel space, and enhance wiring accessibility for service calls. Business impact: cleaner installations, fewer field wiring errors, and faster maintenance rounds. Application: suitable for high-density control zones with limited backbox depth.
Get a Quick Quote for a Eaton CS220BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS220BK?
Enquire Now
FAQs
CS220BK uses side-wire terminals for #14-10 AWG conductors and a flush-mount design, which simplifies fitment in tight panels. Plan for a 1.3 in depth, 4.2 in height, and 0.902 in width, ensuring adequate clearance around the device. The brass terminal enclosure supports secure connections, reducing the risk of loose wiring in high-traffic environments.
The CS220BK is a two-pole toggle switch rated at 20A with a voltage range of 120/277V. It supports a wide array of load types, including ELV, CFL, LED, MLV, halogen, incandescent, and motor loads. Wiring is side-wire with screw terminals, designed for #14-10 AWG conductors, suitable for commercial control panels.
Yes. With a 20A, 120/277V rating and a two-pole configuration, CS220BK is well-suited for controlling lighting circuits and motor/fan loads in commercial settings. Its load-type versatility (LED, CFL, incandescent, halogen, ELV/MLV) supports mixed-load panels, reducing device count and simplifying maintenance in office buildings, retail spaces, and light industrial environments.
CS220BK carries cULus Listed, NOM, and Federal Specification Classification 6241 05 certifications. These approvals demonstrate compliance with recognized safety and performance standards, helping installers meet building codes, reduce regulatory risk, and ease procurement and audit processes in regulated facilities.
The compact, robust design minimizes space intrusion and simplifies field wiring, leading to quicker installations and easier future servicing. The dual-pole, brass-enclosed terminals provide durable connections that resist loosening over time, reducing maintenance calls. Combined with universal load compatibility, this can lower lifecycle costs and improve system reliability in commercial control panels.
