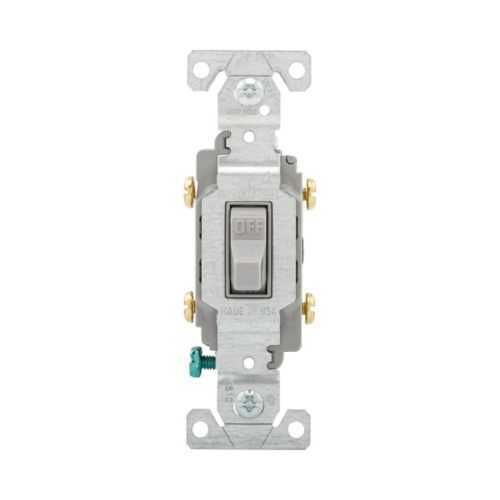

Eaton CS220GY Toggle Switch - 20A, 120/277V, cULus Listed
Part Number: CS220GY
Quick Summary
Eaton CS220GY Toggle Switch provides reliable motor control and general circuit switching for commercial electrical panels. Technicians often contend with tight wiring spaces, inconsistent terminations, and non-code-compliant components that slow projects. This device is cULus listed and NOM compliant, with Federal Specification Classification 6241 05, supporting 120/277V two-pole operation. For installers and procurement teams, the rugged PVC body, brass terminal enclosure, and side-wire terminals translate to faster commissioning and lasting performance in demanding commercial environments. Its commercial-grade design aligns with standard spec sheets and procurement workflows, reducing risk and streamlining approvals.
Product Information
Extended Description
CS220GY Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Flush, 120/277V, Side wire, Screw, Gray, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole, Dual-pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS220GY
UPC
032664488450
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.14 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Two-pole
Application
Commercial
Wiring method
Side wire
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Load type
INC FLR ELV Fan MLV LED CFL Motor Control HAL
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Color
Gray
High-current capability meets everyday commercial needs. The CS220GY is rated at 20A for both 120V and 277V circuits, covering lighting, fans, and small motor loads in office buildings and retail spaces. This compatibility reduces the number of different switches required on a project and minimizes inventory costs while ensuring reliable performance in harsh switch-duty cycles. The flush mounting and side-wire wiring simplify installation in cramped control panels, accelerating commissioning and cutting labor hours. With a two-pole configuration, installation remains straightforward, minimizing wiring errors and enabling clean hot-to-hot control. Broad load support—INC, FLR, ELV, LED, CFL, MLV, and more—means a single part can serve multiple applications, improving supply chain resilience. Durability is reinforced by brass terminals and PVC construction, reducing maintenance downtime over the product life.
Get a Quick Quote for a Eaton CS220GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS220GY?
Enquire Now
FAQs
The CS220GY supports side-wire wiring with screw terminals and flush mounting in standard electrical enclosures. It accepts #14-10 AWG conductors and uses a brass terminal enclosure for robust terminations, enabling reliable field installations. The compact 1.3 in depth and 0.902 in width help fit tight panel spaces while maintaining secure, code-compliant connections.
Designed for commercial use, the CS220GY is rated at 20A and supports 120/277V two-pole operation. This makes it suitable for a wide range of loads, including lighting, fans, and small motors in office and retail environments. The two-pole design simplifies control of dual hot conductors, enabling straightforward implementation in standard electrical panels.
Yes. With load types spanning INC, FLR, ELV, Fan, MLV, LED, CFL, and Motor Control, the CS220GY covers general lighting, HVAC controls, and small motor circuits. Its rugged PVC body and brass terminals resist corrosion, while the 120/277V capability aligns with common commercial power distribution. The two-pole design also supports reliable dual-pole switching in compact spaces.
The CS220GY carries cULus Listed and NOM certifications, plus Federal Specification Classification 6241 05. These certifications signal adherence to recognized safety and performance standards, simplifying code approvals and procurement for regulated projects. They help ensure the switch meets electrical code requirements in commercial installations and reduces the risk of non-compliant components in critical circuits.
The CS220GY offers strong lifecycle value through durable construction and secure terminations. Brass terminals and a PVC body resist wear, helping reduce replacement frequency. Its compatibility with standard #14-10 AWG wiring and easy side-wire connections shorten install time, lowering labor costs. Overall, fewer part variations and reliable long-term performance translate to lower maintenance and better project ROI.
