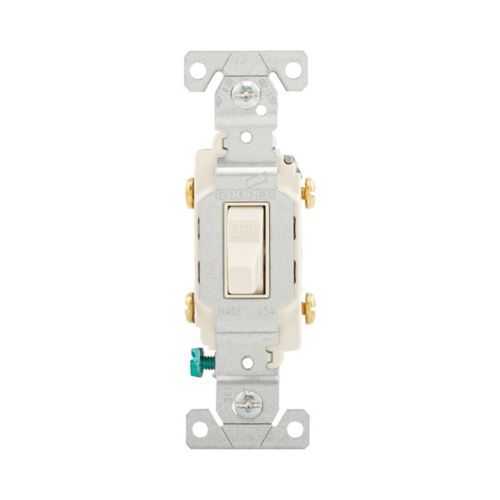

Eaton CS220LA Toggle Switch - 20A 120/277V, cULus Listed
Part Number: CS220LA
Quick Summary
The Eaton CS220LA toggle switch provides reliable control for commercial lighting and motor loads in industrial and commercial facilities. Engineers often struggle with compatibility across diverse load types and wiring methods, risking downtime and warranty concerns. It is cULus Listed and NOM certified, with Federal Specification Classification 6241 05, helping meet regulatory requirements across North America. Designed for commercial grade applications, this two-pole switch features side-wire connections and flush mounting for clean installations, while supporting loads from MLV to LED with a 20A, 120/277V rating. With a compact form factor and solid brass terminal enclosure, it offers straightforward integration into panel cutouts and fixtures, reducing installation time and field wiring errors.
Product Information
Extended Description
CS220LA Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Flush, 120/277V, Side wire, Screw, Light almond, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole, Dual-pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS220LA
UPC
032664583186
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.105 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Two-pole
Application
Commercial
Wiring method
Side wire
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Load type
MLV FLR INC CFL Motor Control HAL ELV Fan LED
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Color
Light almond
Two-pole design delivers isolated control across line and load, reducing cross-talk and accidental energization while enhancing safety in commercial spaces. The 20A, 120/277V rating provides broad compatibility with lighting, fan, and motor circuits, enabling a single switch to serve multiple load types such as MLV, CFL, LED, INC, and HAL. Side-wire terminals paired with a screw connection simplify field terminations, speeding up installation and reducing wiring mistakes in busy electrical rooms. Flush mounting offers a low-profile footprint that fits standard panel cutouts, delivering a clean, professional look and easier retrofit projects. PVC construction with a brass terminal enclosure ensures durability in harsh facility environments, supporting long service life and lower lifecycle costs. Federal spec and certifications reassure compliance and warranty coverage, while the light almond color blends into many interiors. This combination supports maintenance teams with predictable performance and faster repair cycles across commercial applications.
Get a Quick Quote for a Eaton CS220LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS220LA?
Enquire Now
FAQs
Yes. CS220LA is designed for side-wire terminations using #14-10 AWG conductors and flush mounting to fit standard electrical panels. The brass terminal enclosure and screw connections simplify field wiring, reducing install time and minimizing wiring errors during retrofit or new construction.
The CS220LA is a two-pole toggle switch rated for 20A and 120/277V. This makes it suitable for commercial lighting, fans, and motor-control loads, while providing the reliability required for busy facilities.
Yes. The load type includes MLV, FLR, INC, CFL, LED, Motor Control, HAL, ELV, Fan, and LED, enabling a single device to manage a broad spectrum of lighting and motor-related functions in commercial environments, reducing parts diversity in the field.
The CS220LA is cULus Listed and NOM certified with Federal Specification Classification 6241 05. These certifications support regulatory compliance, safe installation, and warranty coverage for commercial projects in North America.
The flush-mount design, side-wire terminations, and compact 1.3 in depth facilitate quick retrofits in existing panels, reducing labor time. Brass terminals provide durable connections, lowering failure risk. Overall, you gain faster commissioning, improved reliability, and lower lifecycle costs in high-traffic facilities.
