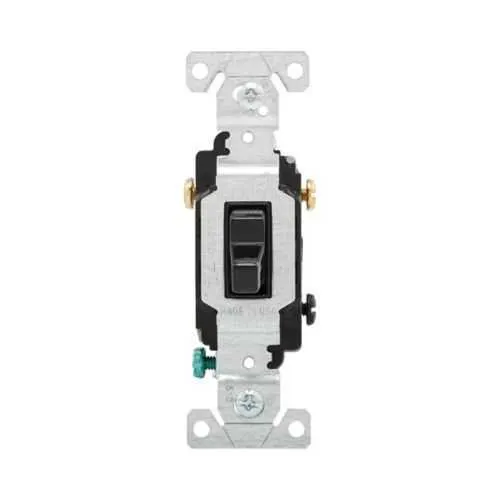

Eaton CS315BK Toggle Switch - Commercial Grade cULus Listed
Part Number: CS315BK
Quick Summary
Eaton CS315BK Toggle Switch is a commercial-grade control device for wall-mounted on/off operation in commercial spaces. Engineers often wrestle with durability gaps and wiring errors that drive downtime and maintenance costs. It is cULus listed and complies with Federal Specification Classification 6241 05, with NOM recognition noted in Eaton's datasheets. The CS315BK accommodates 120/277V service and a side-wire, screw-terminal design, delivering reliable three-way operation for commercial lighting and control circuits. For procurement teams, its compact wall-mount footprint, robust copper alloy terminals, and straightforward installation translate into faster installs and lower total cost of ownership.
Product Information
Extended Description
CS315BK Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Wall, 120/277V, Side wire, Screw, Black, Three-Way, Copper alloy, Terminals: 0.031 in
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS315BK
UPC
032664554988
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.142 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Side wire
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Material
PVC
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Copper alloy
Terminals
0.031 in
Color
Black
Feature: 15A, 120/277V rating and Three-way capability provide a versatile control point for commercial lighting and circuits. Business impact: This broad electrical specification supports standard loads across building voltages, reducing the need for multiple devices while maintaining safety margins. Application: Ideal for wall-mounted commercial switches in offices, retail spaces, and institutional facilities where reliable three-way switching is required. Feature: Side wiring with screw-terminal connections and a copper alloy terminal enclosure (0.031 in) ensure robust, field-friendly connections. Business impact: Enables secure terminations for #14-10 AWG conductors, improving reliability and reducing maintenance recalls. Application: Perfect for retrofit projects and new-build commercial panels where fast, repeatable wiring is essential. Feature: Wall mounting with compact dimensions (1.3 in depth, 4.2 in height, 0.902 in width) and light 0.142 lb weight. Business impact: Delivers a space-efficient footprint for crowded enclosures and shallow boxes, speeding installation and reducing panel congestion. Application: Suitable for standard wall boxes and surface-mounted installations in busy commercial environments. Feature: PVC housing with Black color and copper-based terminals, supported by certifications including cULus Listed, NOM, and Federal Specification 6241 05. Business impact: Compliance and durable construction lower risk during inspections and in harsh environments. Application: Suitable for commercial facilities seeking reliable, compliant switches with long service life. Feature: Three-way and single-pole capability, side-wire method, and screw terminals combined with Eaton's compatibility. Business impact: Streamlines procurement and maintenance by using a single part across multiple circuits, reducing stocking requirements and training time. Application: Ideal for installers and engineers managing lighting control and general purpose switch applications in commercial settings.
Get a Quick Quote for a Eaton CS315BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS315BK?
Enquire Now
FAQs
Begin by turning off power and ensuring the wall box accommodates a single-gang footprint. Prepare #14-10 AWG conductors, strip to about 0.31 inches, and connect to the side-wire screw terminals as labeled. Secure the switch with mounting screws to the wall box, verify three-way wiring if used, restore power, and test for proper operation. The CS315BK supports #14-10 AWG conductors in a commercial setting, with a robust copper alloy terminal enclosure for reliable terminations.
The CS315BK is rated for 15A at 120/277V, and it supports both single-pole and three-way configurations. This makes it well-suited for common commercial lighting circuits and control panels, providing safe operation across typical building voltages without needing multiple devices or adapters.
Yes. The CS315BK features three-way switching capability in addition to its single-pole configuration, enabling flexible wiring schemes for complex lighting control in offices, retail spaces, and institutional facilities. The side-wire termination and screw terminals simplify field wiring while maintaining reliable, repeatable performance in commercial environments.
The CS315BK is cULus Listed, NOM, and complies with Federal Specification Classification 6241 05. These certifications indicate adherence to recognized safety and performance standards, easing inspection processes, ensuring regulatory compliance for commercial projects, and supporting acceptance across building codes and procurement requirements.
Durable copper alloy terminals, a side-wire, screw-terminal design, and a compact wall-mount form factor reduce installation time and wiring errors. The 15A, 120/277V rating supports common loads, lowering the need for multiple devices. Overall, this translates to faster commissioning, lower maintenance costs, and improved uptime in busy commercial facilities.
