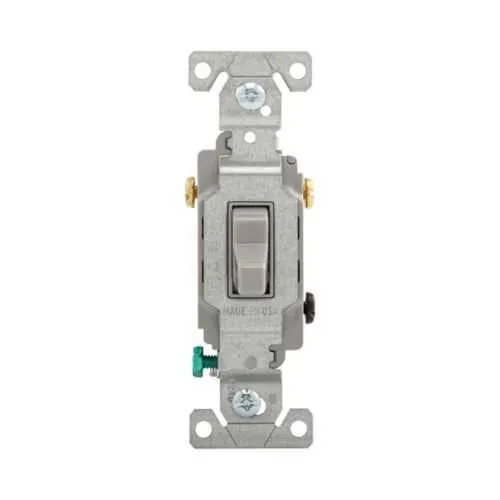

Eaton CS315GY Toggle Switch - cULus Listed
Part Number: CS315GY
Quick Summary
Eaton CS315GY toggle switch is a commercial-grade control device designed for wall-mounted, 120/277 V circuits in office and retail environments. It addresses wiring challenges in compact panels by offering side-wire terminals and screw connections for reliable field installs. Certified for safety and performance, it carries cULus Listed, NOM, and Federal Specification Classification 6241 05, supporting compliance across North American facilities. This model also aligns with strict commercial standards while delivering long-term reliability; leveraging it in your layouts reduces maintenance visits and guarantees consistent operation, while integrating with standard electrical devices for scalable automation projects.
Product Information
Extended Description
CS315GY Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Wall, 120/277V, Side wire, Screw, Gray, Three-Way, Copper alloy, Terminals: 0.031 in
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS315GY
UPC
032664487859
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.133 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Side wire
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Material
PVC
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Copper alloy
Terminals
0.031 in
Color
Gray
Feature: 15A, 120/277 V rating provides suitability for common commercial loads. Business Impact: Supports diverse lighting and control circuits without upsizing components, reducing material costs. Application: Office, retail, and light industrial spaces benefit from reliable, code-compliant switching. Feature: Side-wire and screw terminals enable flexible field wiring. Business Impact: Simplifies installation in retrofit and new-build projects, shortening labor time. Application: Wall-mounted installations with tight access zones. Feature: Three-way switching capability with a single-pole design. Business Impact: Enables multi-location control in stairs and hallways without adding bulky hardware. Application: Commercial stairwell lighting and maneuvered control scenarios. Feature: Copper alloy terminals and 0.031 in terminal enclosure provide durability. Business Impact: Improves current carrying capacity and thermal performance, lowering failure risk. Application: High-use commercial environments with frequent cycling. Feature: PVC body with gray finish and compact footprint (1.3 in depth, 4.2 in height, 0.902 in width). Business Impact: Facilitates clean, unobtrusive installation in crowded panels. Application: Wall-mounted controls that require minimal space. Feature: Certifications including cULus Listed and NOM support regulatory compliance. Business Impact: Reduces risk of non-compliance audits and accelerates project approvals. Application: Facilities governed by UL, NOM, and federal specs in North America.
Get a Quick Quote for a Eaton CS315GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS315GY?
Enquire Now
FAQs
The CS315GY uses side-wire and screw terminals suitable for #14-10 AWG conductors. This dual wiring method supports flexible installation in wall boxes and retrofit projects, reducing labor time and ensuring solid mechanical and electrical connections in commercial environments.
Yes. The switch is rated for 15A at both 120 and 277 volts, making it compatible with most commercial lighting and control loads while meeting common electrical protection and wiring device standards for office and retail applications.
The CS315GY is cULus Listed and NOM certified with Federal Specification Classification 6241 05. These certifications indicate compliance with North American electrical safety and performance standards, helping you pass inspections and reduce regulatory risk in commercial facilities.
Yes. The CS315GY supports three-way operation, enabling multi-location control for navigation lights or stairwell circuits. Its compact form and reliable terminals simplify wiring in complex three-way configurations without sacrificing space or reliability.
Consider its wall-mount design, side-wire/screw terminations, and copper alloy terminals for durability and ease of service. These features reduce installation time, minimize call-backs due to failures, and improve long-term reliability in high-use commercial environments.
