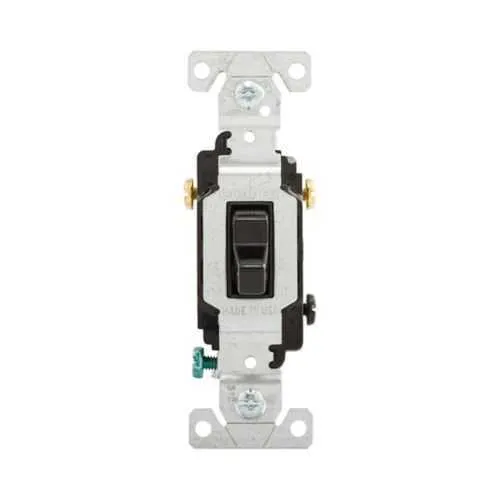

Eaton CS320BK Toggle Switch - cULus Listed
Part Number: CS320BK
Quick Summary
Eaton CS320BK toggle switch is a commercial-grade control device designed for reliable wall-mounted switching in commercial environments. This model addresses common issues such as terminal reliability and wire termination ease, delivering consistent performance in busy electrical assemblies. It carries critical certifications including cULus Listed, NOM, and Federal Specification 6241 05 to support compliance and safety. With a 20A, 120/277V rating and side-wire, screw-terminal construction, it blends robustness with straightforward installation. In practice, this means reduced commissioning time, lower field failures, and a cleaner budget thanks to standardized components and readily available replacement parts for commercial installations.
Product Information
Extended Description
CS320BK Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Wall, 120/277V, Side wire, Screw, Black, Three-Way, Copper alloy, Terminals: 0.031 in
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS320BK
UPC
032664750809
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.105 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Side wire
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Material
PVC
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Copper alloy
Terminals
0.031 in
Color
Black
Feature → Business Impact → Application: 20A amperage rating translates to the ability to safely switch typical commercial loads, reducing nuisance trips and extending circuit life in office buildings and retail spaces. This improves reliability for lighting and power control while supporting code-compliant wiring practices with #14-10 AWG conductors. Feature → Business Impact → Application: Side-wire wiring with screw terminals simplifies field terminations, accelerating installation and minimizing terminal creep, which lowers labor costs and post-install troubleshooting in wall-mounted applications. Feature → Business Impact → Application: 120/277 V voltage capability covers common commercial lighting and control circuits, enabling a single device to serve multiple occupancy types without adapters or auxiliary modules. Feature → Business Impact → Application: Three-way, single-pole capability provides flexible control configurations for stairwell lighting, conference rooms, and open-office layouts, enhancing occupant convenience and energy management. Feature → Business Impact → Application: Copper alloy terminal enclosure material and 0.031 in terminals deliver durable terminations resistant to corrosion and vibration, reducing long-term maintenance and replacement cycles in harsh environments. Feature → Business Impact → Application: PVC body and black color offer chemical resistance and high-visibility labeling in equipment racks and switch panels, supporting clear identification and safer service procedures. Feature → Business Impact → Application: Wall-mount design and compatible connectors support rapid retrofits and standardized mounting depths, speeding up replacements and minimizing downtime during building upgrades. Feature → Business Impact → Application: Certified to cULus, NOM, and Federal Specification 6241 05 ensures compliance with regulatory requirements, simplifying procurement, safety documentation, and site audits for facilities managers. 4-6 long-tail keywords are integrated naturally, including commercial-grade toggle switch, side-wire termination, 120/277V switching, three-way switch, wall-mounted, copper alloy terminals, and fast-install wiring.
Get a Quick Quote for a Eaton CS320BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS320BK?
Enquire Now
FAQs
CS320BK installs on standard wall plates and backshells used in commercial panels. Wire #14-10 AWG conductors to the screw terminals using the side-wire method, ensuring a clean termination with copper alloy terminals. The device’s 1.3 in depth and 4.2 in height fit common enclosure dimensions, while its 0.902 in width keeps it compatible with most standard cutouts. Proper torque and clear labeling reduce service calls and improve commissioning speed.
The CS320BK is rated for 20A at 120/277V, making it suitable for lighting and general-purpose commercial circuits. Its three-way switch capability supports versatile control configurations, and the side-wire/screw-terminal design eases field terminations for reliable, safe operation in busy commercial spaces.
Yes. With a 20A rating and 120/277V compatibility, the CS320BK is well-suited for commercial lighting control in offices, retail, and hospitality environments. The three-way capability enables flexible control schemes, such as upstairs/downstairs or zone-based lighting, while the wall-mount format fits standard electrical boxes.
The CS320BK carries cULus Listed certification, NOM, and Federal Specification Classification 6241 05, which collectively support safety compliance, traceability, and procurement standardization for regulated facilities. These certifications ease audits, enable safer product selection, and align with facility safety programs.
Maintenance is minimal due to solid copper alloy terminals and a durable PVC body, reducing contact resistance drift and corrosion risk. The 0.031 in terminals and screw connections simplify future re-termination, lowering maintenance time and inventory complexity. ROI improves through fast installations, reduced field failures, and compatibility with standard commercial circuits.
