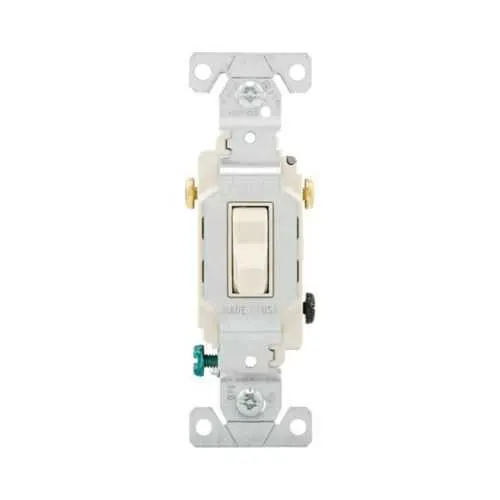

Eaton CS320LA Toggle Switch - cULus Listed
Part Number: CS320LA
Quick Summary
Toggle switch performance for commercial wiring is ideal for wall-mounted control in 120/277V commercial environments. Owners and engineers often struggle with durability, proper termination, and compliance in busy installations. This CS320LA model delivers cULus listed, NOM, and Federal Specification 6241 05 certifications, plus three-way wiring for flexible control. By combining durable copper alloy terminals with wall-mount installation and side-wire compatibility, it supports faster, compliant deployments. Engineers appreciate the device's compatibility with #14-10 AWG conductors and its copper alloy terminals for reliable terminations. In practice, the three-way operation and side-wire wiring simplify installations and maintenance in high-traffic commercial settings. This combination translates to faster project completion, lower field rework, and more consistent performance across shifts.
Product Information
Extended Description
CS320LA Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Wall, 120/277V, Side wire, Screw, Light almond, Three-Way, Copper alloy, Terminals: 0.031 in
Product Name
Eaton commercial grade toggle switch
Catalog Number
CS320LA
UPC
032664583193
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.12 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Side wire
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Material
PVC
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Copper alloy
Terminals
0.031 in
Color
Light almond
Electrical rating and configurations enable reliable load control in commercial panels. The CS320LA supports 20A at 120/277V with single-pole and three-way operation, delivering flexible control for lighting, fans, and small equipment across offices, retail spaces, and light-industrial facilities. This versatility reduces device counts, streamlines wiring, and improves commissioning speed, which translates into faster project turnover and lower installation costs on large-scale commercial builds. Wiring method and terminals simplify field connections and minimize errors. Side-wire wiring with screw terminals provides secure terminations, while the 0.031 inch terminals and copper alloy contacts resist corrosion and wear in high-traffic applications. This combination reduces callback requests, extends service life, and enhances reliability when toggling between multi-location controls during busy shifts. Durable materials and compact form support long service life in demanding environments. PVC construction, light almond finish, and a rugged mounting arrangement ensure the device remains visually compatible with interiors while standing up to daily use. Engineers gain predictable performance metrics, particularly in commercial lighting control and power switching, helping to meet maintenance windows and minimize unplanned downtime. Compliance and certifications provide clear regulatory alignment. The CS320LA is cULus Listed, NOM compliant, and carries Federal Specification Classification 6241 05, strengthening pass/fail outcomes during inspections and reducing risk of non-conformance in building permits. Three-way operation further enables flexible control strategies without sacrificing safety or traceability. Installation compatibility and physical dimensions support easier retrofits and new installs. Weighing only 0.12 lb with a compact footprint (1.3 in depth, 4.2 in height, 0.902 in width), the device fits tight wall boxes and commercial panels, with straightforward side-wire connections and screw terminals that installers trust for repeatable results across shifts and teams.
Get a Quick Quote for a Eaton CS320LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS320LA?
Enquire Now
FAQs
The CS320LA supports side-wire wiring with screw terminals and is designed for wall-mount installations. It accepts standard #14-10 AWG conductors and features copper alloy terminals rated for durable terminations. This wiring approach simplifies field connections, reduces the risk of loose contacts, and enables clean, reliable installations in commercial panels or wall boxes.
The CS320LA is rated for 20A at 120/277V and supports single-pole and three-way configurations. It is suitable for lighting control and small-power applications in commercial environments. The device’s wiring method and terminals keep connections secure, while its three-way capability enables multi-location control without compromising safety or performance.
Yes. The CS320LA is designed for commercial-grade lighting and power control with wall-mount installation. Its 120/277V rating, 20A capacity, and three-way configuration provide the flexibility needed for offices, retail settings, and similar environments. The side-wire connection and durable terminals help ensure quick commissioning and reliable operation across shifts.
The CS320LA carries cULus Listed, NOM compliance, and Federal Specification Classification 6241 05. These certifications ensure regulatory alignment for North American installations, support safe and traceable maintenance practices, and facilitate pass/fail outcomes during inspections. The three-way capability remains compliant while enabling flexible control strategies for multi-location setups.
The CS320LA uses copper alloy terminals and a robust PVC body designed for repeated cycling, reducing maintenance calls and extending service life. Side-wire and screw-terminal connections promote reliable terminations, while the device’s compact footprint and wall-mount design simplify upgrades or retrofits. Overall, this translates to lower replacement costs and faster project completion in ongoing operations.
