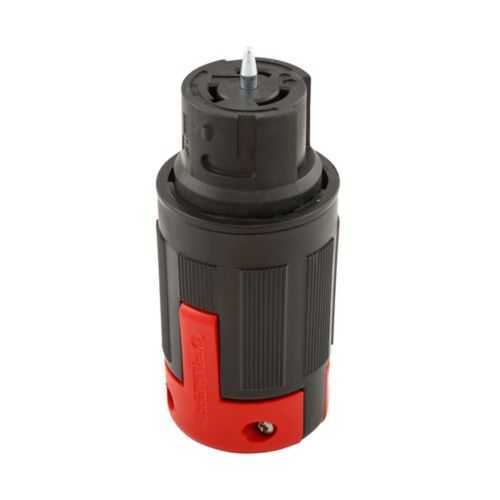

Eaton CS6360EX Locking Connector - California Standard
Part Number: CS6360EX
Quick Summary
Eaton CS6360EX locking connector is an industrial locking connector designed for secure, back-wired power connections. This design minimizes miswiring and field downtime in demanding environments where reliability matters. It carries cULus Listed certification and adheres to California standard requirements, supporting safe field installation. With a rugged nylon body and a 50 A, 125 V rating, it helps control panels meet performance targets while reducing service calls. A practical fit for industrial wiring, it pairs well with 10–4 AWG cables and back-wire terminations. Operating from -40 to 105 °C, it withstands extreme heat and cold, maintaining secure contact during temperature swings.
Product Information
Extended Description
CS6360EX Eaton: Eaton locking connector, #10-6 AWG, 50A, Industrial, 125V, Back wiring, Black, red, Non-NEMA, Two-pole, Three-wire, Nylon, 0.44 to 1.06 in, California standard
Product Name
Eaton Arrow Hart pro grip California standard locking connector
Catalog Number
CS6360EX
UPC
032664663857
Product Length/Depth
6.94 in
Product Height
3.38 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
cULus Listed
Special features
Locking connector
Type
Locking connector
Amperage Rating
50 A
Voltage rating
125 V
Contact material
Zinc plated brass
Application
Industrial
Device grade
Extra heavy duty
Wiring method
Back
Number of wires
3 Grounding
Number Of Poles
Two-pole
Color
Red Black
Cord diameter
0.44-1.06 in (11.1-26.0 mm)
Material
Nylon
Operating temperature
-40 to 105 °C (-40 to 221 °F)
Standard
California standard
Allowable wire size
#10-4 AWG
NEMA configuration
Non-NEMA
Torque rating
45 lbf-inch
Design type
Pro grip
Face/body material
Glass filled nylon
Arrow Hart Buyers Guide Section C
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - CS6360EX
Feature: Pro grip locking connector with robust locking mechanism. Business Impact: Reduces accidental disconnections in vibration-prone environments, lowering downtime and safeguarding expensive machinery. Application: Control panels, motor starters, and machinery bays where reliable power termination is critical. Long-tail keywords: locking power connector, industrial control panel connector. Feature: High-current, low-profile performance at 50 A and 125 V. Business Impact: Supports heavy loads while ensuring safe, compliant wiring—reducing wiring complexity and separate power feeds. Application: Industrial drives, conveyors, and equipment with demanding start-up surges. Long-tail keywords: 50 A locking connector, 125 V industrial connector. Feature: Back-wiring with three conductors (two poles plus grounding). Business Impact: Simplifies field terminations, accelerates installation, and improves traceability for maintenance. Application: Panel wiring where quick, secure back-wire connections are needed. Long-tail keywords: back-wiring locking connector, three-wire locking device. Feature: Nylon body construction (glass-filled nylon) with zinc-plated brass contacts. Business Impact: Delivers durability, chemical resistance, and reliable contact exposure in harsh environments, reducing replacement cycles. Application: Factory floors, outdoors, and wet or dusty settings. Long-tail keywords: nylon locking connector, corrosion-resistant contacts. Feature: California standard and cULus Listed certification. Business Impact: Ensures regulatory compliance and smoother approvals for regional installations, minimizing audit friction. Application: California-based facilities and equipment enclosures. Long-tail keywords: cULus listed locking connector, California standard wiring. Feature: Temperature range -40 to 105 °C and 45 lbf-in torque rating. Business Impact: Maintains secure connections across extreme conditions with predictable installation torque, reducing rework. Application: High-heat or cold environments, control cabinets, and panel assemblies. Long-tail keywords: wide operating temperature locking device, torque-accurate connectors.
Get a Quick Quote for a Eaton CS6360EX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS6360EX?
Enquire Now
FAQs
Begin by verifying compatibility with #10-4 AWG conductors and the 0.44-1.06 inch cord diameter range. Remove power, secure the connector to the panel with the proper mounting hardware, and insert conductors into the back-wire terminals per the color code. Tighten to the specified torque of 45 lbf-in and test for continuity and secure fit to prevent vibration-induced disengagement.
The CS6360EX is rated for 50 A at 125 V and operates from -40 °C to 105 °C. This enables reliable performance in extreme ambient conditions, supporting heavy-duty industrial loads without compromise on safety or contact integrity.
Yes. The connector is designed to meet California standard requirements and carries cULus Listed certification, providing assurance for regional compliance and safer integration in California facilities and enclosures.
CS6360EX is cULus Listed and California standard compliant. These certifications indicate adherence to recognized safety, performance, and installation requirements, reducing regulatory risk and aiding quick approvals during audits and inspections.
The locking mechanism minimizes unintended disconnections, reducing downtime and maintenance calls. Its rugged nylon body and durable contacts extend service life in harsh environments, delivering lower replacement costs and a faster, safer installation process for industrial wiring projects.
