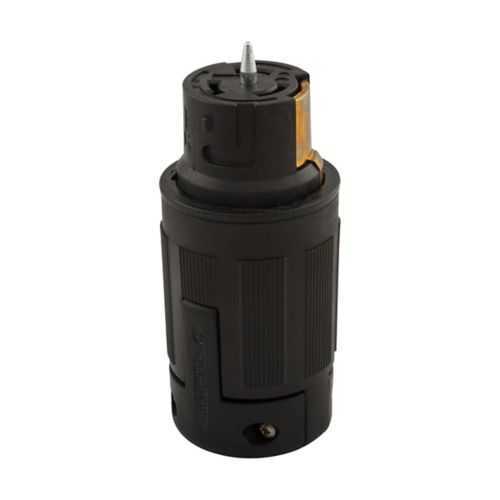

Eaton CS6364EXBK Locking Connector - cULus Listed
Part Number: CS6364EXBK
Quick Summary
The Eaton CS6364EXBK locking connector is designed for industrial wiring connections, delivering secure, vibration-resistant terminations in heavy machinery. In challenging environments, loose or disconnected power leads can cause costly downtimes; this locking solution helps prevent these failures and simplifies field servicing. It is cULus Listed and meets Federal Specification Classification 6221 02, with California standard compliance to support code-adherent installations across facilities. The rugged nylon body, back-wiring option, and 50 A, 125/250 V ratings provide a robust, versatile solution for power distribution in manufacturing lines and equipment enclosures. By combining reliability with straightforward installation, it offers meaningful value for panel builders, OEM integrators, and maintenance teams seeking safer, more maintainable connections.
Product Information
Extended Description
CS6364EXBK Eaton: Eaton locking connector, #10-6 AWG, 50A, Industrial, 125/250V, Back wiring, Black, Non-NEMA, Three-pole, Four-wire, Nylon, 0.44 to 1.25 in, California standard
Product Name
Eaton Arrow Hart pro grip California standard locking connector
Catalog Number
CS6364EXBK
UPC
032664730474
Product Length/Depth
6.94 in
Product Height
3.38 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
cULus Listed Federal Specification Classification 6221 02
Special features
Locking connector
Type
Locking connector
Amperage Rating
50 A
Voltage rating
125/250 V
Contact material
Zinc plated brass
Application
Industrial
Device grade
Extra heavy duty
Wiring method
Back
Number of wires
Grounding 4
Number Of Poles
Three-pole
Color
Black Red
Cord diameter
0.44-1.06 in (11.1-26.0 mm)
Material
Nylon
Operating temperature
-40 to 105 °C (-40 to 221 °F)
Standard
California standard
Allowable wire size
#10-4 AWG
NEMA configuration
Non-NEMA
Torque rating
45 lbf-inch
Design type
Pro grip
Face/body material
Glass filled nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Hart lock industrial grade 50A locking devices spec sheet
Hart lock industrial grade 50A locking devices spec sheet
Hart lock industrial grade 50A locking devices spec sheet
Locking mechanism ensures secure mating even in high-vibration equipment, dramatically reducing accidental disconnections and mid-run outages. This improvement translates to fewer service calls and shorter maintenance windows, boosting overall line uptime. It is particularly beneficial for conveyors, press lines, and outdoor equipment where connectors are exposed to movement and environmental stress. Three-pole, four-wire configuration with back wiring supports clean, safe power distribution. The arrangement guarantees correct grounding and phase integrity, minimizing mis-wiring risks during installation. This makes it ideal for panel builders and OEMs wiring motors, drives, and control circuits in industrial facilities. Cord diameter range of 0.44-1.06 inches and #10-4 AWG allowable sizes offer flexible termination options without re-terminating hardware. The back-wiring method speeds field terminations and reduces assembly time, cutting labor costs. Nylon housing with glass-filled body and zinc-plated brass contacts provide chemical resistance and long service life. The rugged construction supports operating temperature range -40 to 105 °C and a torque rating of 45 lbf-in, ensuring consistent torque and reliable contact retention across cycles. Compliance and sourcing benefits include cULus listing, Federal Specification 6221 02, and California standard. These certifications simplify audits, help meet safety requirements, and support ongoing maintenance programs across multiple sites.
Get a Quick Quote for a Eaton CS6364EXBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS6364EXBK?
Enquire Now
FAQs
The CS6364EXBK is ideal for industrial power distribution in manufacturing lines, machinery enclosures, conveyors, and robotics. Its locking feature prevents accidental disconnections in high-vibration environments, while the three-pole four-wire configuration ensures proper grounding and phase integrity. Typical use cases include motors, drives, CNC equipment, and control panels where reliable, code-compliant connections are critical.
Yes, the CS6364EXBK supports back wiring for simplified terminations. It accepts #10-4 AWG conductors and a cord diameter range of 0.44-1.06 inches, enabling flexible termination options without re-terminating hardware. This reduces installation time and simplifies field service, especially in tight panel spaces or retrofit projects.
The CS6364EXBK is cULus Listed and aligned with Federal Specification 6221 02, plus California standard compliance. These certifications validate electrical safety, performance under industrial conditions, and site-wide regulatory compatibility, helping facilities pass audits, meet safety programs, and maintain cross-site standardization for maintenance and procurement.
Key specs include a 50 A amperage rating, 125/250 V voltage rating, 3-pole/4-wire configuration, and a locking mechanism with a torque rating of 45 lbf-in. The device uses zinc-plated brass contacts in a glass-filled nylon housing, with a weight around 1.05 lb and overall dimensions near 6.94 in length, 3.38 in height, and 3.61 in width, designed for -40 to 105 °C operation.
The Pro Grip locking design provides a secure, vibration-resistant connection that resists accidental disengagement, reducing downtime and maintenance calls. It simplifies assembly with back wiring, supports quick field swaps, and maintains reliable contact retention across cycles, making it suitable for OEM assemblies and service operations in demanding industrial environments.
