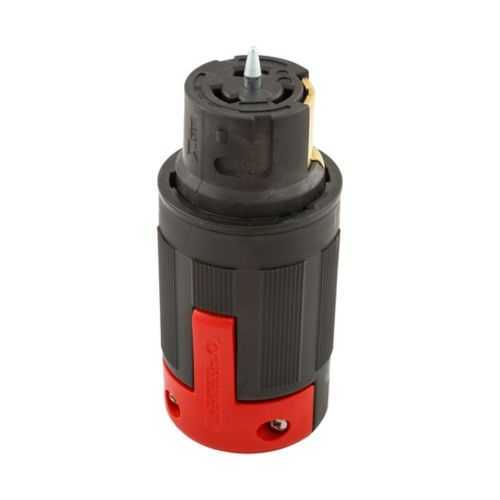

Eaton CS8364EX Locking Connector - California Standard
Part Number: CS8364EX
Quick Summary
The Eaton CS8364EX locking connector provides a reliable industrial power link for control panels. Users often grapple with accidental unplugging in harsh environments, which disrupts uptime and safety. It is cULus Listed, rated for -40 to 105 C, and built to California standard specs with a glass-filled nylon body for durability. With a 50 A, 250 V, three-pole, four-wire configuration and back-wiring capability, it supports #10-4 AWG conductors and a 0.44–1.06 in cord diameter. The locking Pro Grip design reduces vibration-induced disengagement in machinery, and the rugged zinc-plated brass contacts ensure long life in industrial settings. These features translate into improved reliability, safer maintenance windows, and lower total cost of ownership.
Product Information
Extended Description
CS8364EX Eaton: Eaton locking connector, #10-6 AWG, 50A, Industrial, 250V, Back wiring, Black, red, Non-NEMA, Three-pole, Four-wire, Nylon, 0.44 to 1.06 in, California standard
Product Name
Eaton Arrow Hart pro grip California standard locking connector
Catalog Number
CS8364EX
UPC
032664663932
Product Length/Depth
6.94 in
Product Height
3.38 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
cULus Listed
Special features
Locking connector
Type
Locking connector
Amperage Rating
50 A
Voltage rating
3Ø 250 V
Contact material
Zinc plated brass
Application
Industrial
Device grade
Extra heavy duty
Wiring method
Back
Number of wires
Grounding 4
Number Of Poles
Three-pole
Color
Red Black
Cord diameter
0.44-1.06 in (11.1-26.0 mm)
Material
Nylon
Operating temperature
-40 to 105 °C (-40 to 221 °F)
Standard
California standard
Allowable wire size
#10-4 AWG
NEMA configuration
Non-NEMA
Torque rating
45 lbf-inch
Design type
Pro grip
Face/body material
Glass filled nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - CS8364EX
Eaton Specification Sheet - CS8364EX
Eaton Specification Sheet - CS8364EX
Feature → Business Impact → Application: Locking mechanism with Pro Grip design reduces accidental disconnections in high-vibration environments, increasing machine uptime and operator safety; Application in heavy machinery and control panels where intermittent power loss is unacceptable. Feature → Business Impact → Application: 50 A, 250 V rating enables support for motor loads and industrial equipment without overloading, improving panel density and reducing the need for parallel wiring; Application in motor control centers and feeders. Feature → Business Impact → Application: Back wiring with #10-4 AWG capability speeds terminations and simplifies field servicing, cutting installation times and technician exposure; Application in retrofit projects and new installations. Feature → Business Impact → Application: Cord diameter range 0.44–1.06 in accommodates a variety of cables while maintaining code-compliant strain relief and tension control; Application in equipment with diverse wiring harnesses. Feature → Business Impact → Application: Glass-filled nylon body and zinc-plated brass contacts deliver durable performance across -40 to 105 C and harsh industrial environments; Application in outdoor or workshop environments subject to temperature swings. Feature → Business Impact → Application: California standard compliance and cULus listing provide regulatory confidence, reducing procurement risk and streamlining approval processes in regulated facilities; Application in automotive, packaging, and process industries where standards matter.
Get a Quick Quote for a Eaton CS8364EX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS8364EX?
Enquire Now
FAQs
CS8364EX supports back wiring for quick terminations and accepts #10-4 AWG conductors, enabling fast, secure connections in control panels and industrial enclosures. This method reduces field termination time and improves reliability in vibrating equipment.
CS8364EX is rated for 50 A and 250 V three-pole operation with four wires, making it suitable for industrial motors, feeders, and robust control circuits while maintaining safety margins in demanding environments.
Yes. The CS8364EX provides a 3Ø 250 V configuration with a non-NEMA footprint, designed for California standard installations and industrial equipment that requires a secure locking interlock rather than a conventional NEMA plug.
CS8364EX is cULus Listed and built to California standard specs, offering regulatory confidence for installations in regulated facilities and improving supplier qualification during procurement.
Plan for back-wiring termination with #10-4 AWG conductors, ensure torque is applied to 45 in-lbf for secure connections, and verify the -40 to 105 C operating range to prevent insulation or contact degradation in extreme environments.
