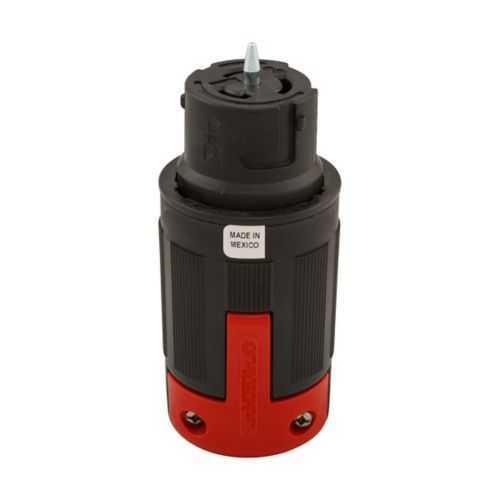

Eaton CS8464EX Locking Connector - cULus Listed
Part Number: CS8464EX
Quick Summary
Eaton CS8464EX locking connector is designed for California standard industrial wiring, delivering secure back-wiring and rugged performance in harsh environments. Engineers often contend with connectors that loosen, fail to terminate cleanly, or introduce downtime during service, making a robust solution essential. This model carries cULus Listed certification and California standard compliance, plus extra-heavy-duty device grade to withstand demanding equipment, while materials like glass-filled nylon and zinc-plated brass deliver durability. From installation to maintenance, the CS8464EX offers reliable torque, compatible wire sizing, and wide operating temperature range, helping OEMs and facilities reduce downtime and lifecycle costs while maintaining safety and regulatory alignment.
Product Information
Extended Description
CS8464EX Eaton: Eaton locking connector, #10-6 AWG, 50A, Industrial, 480V, Back wiring, Black, red, Non-NEMA, Two-pole, Three-wire, Nylon, 0.44 to 1.06 in, California standard
Product Name
Eaton Arrow Hart pro grip California standard locking connector
Catalog Number
CS8464EX
UPC
032664663956
Product Length/Depth
6.94 in
Product Height
3.38 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
cULus Listed
Special features
Locking connector
Type
Locking connector
Amperage Rating
50 A
Voltage rating
480 V
Contact material
Zinc plated brass
Application
Industrial
Device grade
Extra heavy duty
Wiring method
Back
Number of wires
Grounding 3
Number Of Poles
Two-pole
Color
Red Black
Cord diameter
0.44-1.06 in (11.1-26.0 mm)
Material
Nylon
Operating temperature
-40 to 105 °C (-40 to 221 °F)
Standard
California standard
Allowable wire size
#10-4 AWG
NEMA configuration
Non-NEMA
Torque rating
45 lbf-inch
Design type
Pro grip
Face/body material
Glass filled nylon
Arrow Hart Buyers Guide Section C
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - CS8464EX
Feature → Business Impact → Application: Locking mechanism and Pro Grip design provide vibration resistance and secure terminations, reducing field rework and warranty claims in noisy industrial environments. The result is increased uptime on packaging lines and stamping presses where panels experience constant motion or shocks. Feature → Business Impact → Application: 50 A at 480 V ratings support high-power devices without overfusing, enabling simpler wire management in motor starters and feeder circuits. This translates to fewer components, faster installations, and improved energy efficiency in automated lines. Feature → Business Impact → Application: Back wiring compatibility with #10-4 AWG conductors streamlines field terminations, lowering installation time and training needs for electricians and apprentices in machine builds and retrofit projects. Feature → Business Impact → Application: Glass-filled nylon body and zinc-plated brass contacts deliver durable, corrosion-resistant performance in humid or dusty environments, extending product life and reducing maintenance costs in outdoor enclosures and process plants. Feature → Business Impact → Application: -40 to 105 °C operating range supports aerospace, food & beverage, and chemical environments where ambient temps swing, ensuring reliable operation and regulatory compliance. Feature → Business Impact → Application: cULus Listed and California standard compliance reduce risk during audits and line-change approvals, helping OEMs meet local electrical codes while maintaining supply chain resilience. The combination of compact dimensions (6.94 in length, 3.38 in height, 3.61 in width) and integrated locking reduces panel footprint and simplifies panel design for single- or multi-connector configurations.
Get a Quick Quote for a Eaton CS8464EX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS8464EX?
Enquire Now
FAQs
CS8464EX uses back wiring with a 50 A amperage rating, making it suitable for high-load industrial applications where secure terminations are essential. The back-wiring design simplifies field terminations and reduces the risk of loose connections in equipment panels, feeders, and motor control centers.
Yes, CS8464EX is designed to meet California standard requirements and is compatible with systems that require California standard locking connectivity. It supports cord diameters from 0.44 to 1.06 inches (11.1–26.0 mm), enabling use with a wide range of #10–4 AWG conductors depending on configuration.
CS8464EX carries cULus Listed certification and adheres to California standard practices. It operates from -40 to 105 °C and uses a glass-filled nylon body with zinc-plated brass contacts, providing durability in harsh environments typical of industrial facilities and manufacturing floors.
The Pro Grip locking design ensures a secure, vibration-resistant connection that resists inadvertent disconnections in equipment subject to shocks, vibrations, and frequent door openings. This reduces downtime, minimizes maintenance, and improves overall system reliability in control panels and heavy machinery.
Ensure the correct wire size within the allowable range (#10–4 AWG) and proper torque (45 lbf-in) to achieve a reliable seal and engagement. Use the locking connector in back-wired configurations for non-NEMA, two-pole, three-wire applications, and verify cULus and California standard compliance during audits to minimize regulatory exposure.
