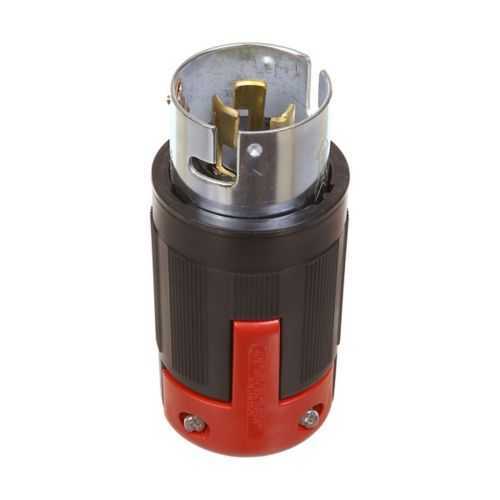

Eaton CS8465EX Locking Plug - California Standard
Part Number: CS8465EX
Quick Summary
The Eaton CS8465EX Locking Plug provides secure, vibration-resistant connections for industrial power distribution. Field installations often suffer from connectors loosening under equipment motion, leading to faults and downtime; this locking design mitigates that risk. It carries RoHS compliance, cULus listing, and California standard certification, aligning with environmental, safety, and regional requirements. For procurement teams, the robust nylon housing, back-wiring capability, and clear wire-size specs help streamline installation and reduce rework. With a 50 A, 480 V rating and pro grip geometry, it delivers reliable performance across harsh environments while supporting efficient maintenance and scalable plant wiring.
Product Information
Extended Description
CS8465EX Eaton: Eaton locking plug, #10-6 AWG, 50A, Industrial, 480V, Back wiring, Black, red, Non-NEMA, Two-pole, Three-wire, Nylon, 0.44 to 1.06 in, California standard
Product Name
Eaton Arrow Hart pro grip California standard locking plug
Catalog Number
CS8465EX
UPC
032664663963
Product Length/Depth
6.94 in
Product Height
3.38 in
Product Width
3.61 in
Product Weight
1.05 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Special features
Locking plug
Type
Locking plug
Amperage Rating
50 A
Voltage rating
480 V
Contact material
Zinc plated brass
Application
Industrial
Device grade
Extra heavy duty
Wiring method
Back
Number of wires
Grounding 3
Number Of Poles
Two-pole
Color
Red Black
Cord diameter
0.44-1.06 in (11.1-26.0 mm)
Material
Nylon
Operating temperature
-40 to 105 °C (-40 to 221 °F)
Standard
California standard
Allowable wire size
#10-4 AWG
NEMA configuration
Non-NEMA
Torque rating
45 lbf-inch
Design type
Pro grip
Face/body material
Glass filled nylon
Arrow Hart Buyers Guide Section C
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - CS8465EX
Locking plug with Pro Grip design delivers a secure, twist-and-lock connection that withstands vibration. This reduces unplanned outages and rework in conveyors, robotics, and control panels, improving overall equipment availability. Back wiring supports fast terminations with reduced field errors. By accommodating #10-4 AWG conductors and a 0.44-1.06 inch cord diameter, it accelerates wiring while maintaining consistent torque and reliability. Durable materials improve uptime in harsh settings. The glass-filled nylon body coupled with zinc-plated brass contacts delivers robust mechanical strength and reliable conductivity, even in temperature extremes. Designed for high-current industrial circuits, the 50 A, 480 V rating ensures compatibility with typical plant feeders. The non-NEMA, two-pole, three-wire configuration with red/black color coding supports clear, safe installation workflows. Operating temperature range from -40 to 105 °C expands usable life in cold rooms and hot machinery cabinets. This, combined with California standard alignment, RoHS, and cULus listing, reduces compliance risk and simplifies supplier approvals. Installation and maintenance advantages include a defined torque rating of 45 lbf-in and clear product specifications, supporting technicians in commissioning checks and future servicing.
Get a Quick Quote for a Eaton CS8465EX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CS8465EX?
Enquire Now
FAQs
Yes. The CS8465EX is designed for back-wiring termination and supports a conductor range of #10-4 AWG with a cord diameter of 0.44 to 1.06 inches. It carries a 50 A, 480 V rating and uses a Pro Grip locking mechanism to prevent accidental disconnections in vibration-prone equipment. Ensure conductors are fully seated and torqued to 45 lbf-in during assembly.
The CS8465EX is RoHS compliant and cULus Listed, with California standard alignment. These certifications confirm environmental compliance and electrical safety, supporting regulatory audits and enabling smoother integration with existing plant wiring devices and enclosures.
The locking plug operates from -40 to 105 °C (-40 to 221 °F). It features a glass-filled nylon body and zinc-plated brass contacts, delivering durability, corrosion resistance, and reliable current transfer suitable for demanding industrial environments.
The Pro Grip locking mechanism provides a secure, vibration-resistant connection that minimizes downtime and rework in automation lines and conveyors. With a 50 A, 480 V rating and a non-NEMA two-pole, three-wire configuration, it remains compatible with common industrial cords while enhancing safety and reliability in dynamic manufacturing settings.
To maximize performance and compliance, install with proper torque of 45 lbf-in, use back-wiring for #10-4 AWG conductors, and verify RoHS and cULus listings. Ensure alignment with the California standard footprint, use appropriate strain relief, and pair with matching connectors to maintain electrical integrity and regulatory acceptance plant-wide.
