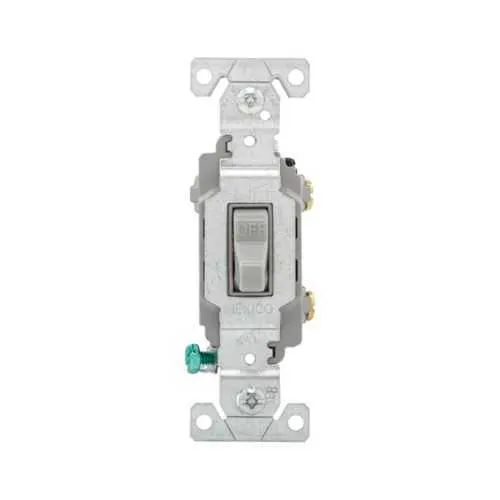

Eaton CSB115GY Toggle Switch - cULus Listed, Commercial
Part Number: CSB115GY
Quick Summary
Eaton CSB115GY toggle switch provides reliable control for lighting and motor loads in commercial environments. In busy facilities, installers often struggle with durability, wiring access, and code compliance; this switch addresses those pain points with sturdy construction and back‑side wiring plus flush mounting for a clean panel. It carries cULus listing and NOM/Federal Specification Classification 6241 05, reinforcing regulatory compliance and safety in critical applications. Designed for commercial electrical protection and motor control, it supports flush mounting and screw terminals for fast, repeatable installations while accommodating a wide load profile.
Product Information
Extended Description
CSB115GY Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Back and side, Screw, Gray, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB115GY
UPC
032664558917
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Back and side
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
Motor Control FLR LED CFL HAL ELV INC Fan MLV
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Gray
The CSB115GY supports 15A at 120/277V, providing reliable switching for typical commercial lighting and small motor circuits, reducing nuisance outages and ensuring consistent performance in high-traffic environments. This single-pole toggle switch employs back and side wiring with screw terminals and a flush mounting style, enabling fast installations and easier field servicing in retrofit projects and new builds. With a PVC body and brass terminal enclosure, it offers durable construction and corrosion resistance in standard commercial environments, while maintaining a compact footprint that fits standard electrical faceplates. Load type compatibility spans Motor Control, LED, CFL, HAL, ELV, INC, Fan, and MLV, delivering broad applicability for offices, retail, and industrial spaces. The gray finish supports unobtrusive integration with existing control panels and color-coded wiring schemes for safer maintenance. The unit is designed for easy replacement and reduced downtime, improving total cost of ownership in ongoing facility management programs.
Get a Quick Quote for a Eaton CSB115GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB115GY?
Enquire Now
FAQs
For proper installation, plan for back and side wiring with #14-10 AWG conductors and screw terminals. Use the flush mounting method to achieve a clean panel appearance, and verify the mounting hole pattern fits standard electrical enclosures. Ensure the panel rating matches the 120/277V, 15A specifications and that wiring color codes align with facility standards.
Key specs are the 15A amperage rating and 120/277V voltage rating, which define the load types the switch can safely control. As a single-pole device with back and side wiring, it is well suited for commercial lighting, fans, and small motor circuits where quick control and reliable operation are required.
Yes. The load type includes Motor Control, LED, CFL, Halogen, ELV, INC, Fan, and MLV, providing broad compatibility across common commercial lighting and small motor applications. This versatility helps standardize switch upgrades across multiple circuits, reducing stocking complexity and installation time.
The CSB115GY is cULus Listed and complies with NOM and Federal Specification Classification 6241 05. These certifications confirm safety, reliability, and regulatory alignment for commercial installations, simplifying approval processes with local inspectors and ensuring adherence to industry standards.
The rugged PVC body and brass terminal design resist wear in busy facilities, decreasing maintenance calls related to switch failures. Its broad load compatibility and easy back/side wiring reduce installation time, while regulatory compliance minimizes risk of non-conformant installations, delivering lower total cost of ownership over the system lifecycle.
