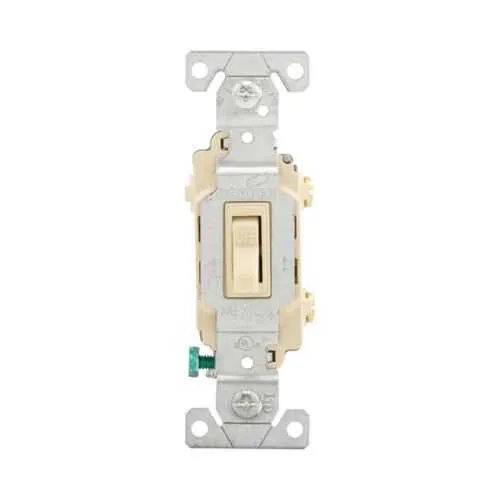

Eaton CSB115STV-SP Toggle Switch - cULus Listed
Part Number: CSB115STV-SP
Quick Summary
Eaton CSB115STV-SP toggle switch provides reliable control for commercial lighting and motor loads. This compact device addresses common panel-mounting and wiring challenges, delivering flush mounting and back-and-side wiring that simplify installation and reduce field errors. The unit is cULus listed with NOM compliance and Federal Specification Classification 6241 05, signaling strong regulatory alignment for safety and performance in modern facilities. Its broad load compatibility and 120/277 V operation support versatile electrical designs, while its compact form helps protect panel density and reduce wiring clutter. Designed for commercial applications, it pairs well with LED, CFL, fan, and motor control circuits, delivering consistent operation and a clear path to energy-efficient control strategies.
Product Information
Extended Description
CSB115STV-SP Eaton: Eaton toggle switch, #14-10 AWG, 15A, Commercial, Flush mount, 120/277V, Back and side, Screw, Ivory, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
Product Name
Eaton toggle switch
Catalog Number
CSB115STV-SP
UPC
032664709920
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.1 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Back and side
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
LED MLV Fan HAL INC Motor Control FLR CFL ELV
Material
PVC
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Ivory
Flush-mount design and a compact footprint save panel space in crowded control cabinets, reducing installation depth and simplifying retrofits. This directly improves wiring efficiency and supports denser electrical layouts in commercial facilities, especially for lighting and motor-control applications. Back and side wiring with screw terminals enables straightforward field connections, minimizes terminal strain, and speeds installation while maintaining secure, vibration-resistant connections. The 15A, 120/277 V single-pole rating covers common commercial circuits, delivering dependable control for lighting, fans, and small motors with predictable performance and reduced energy waste. Load-type compatibility includes LED, MLV, Fan, Halogen, Incandescent, CFL, ELV, and Motor Control, allowing a single switch to support multiple end-use loads and reducing inventory complexity. Brass terminal enclosure and a torque rating of 14 lbf-in provide durable, corrosion-resistant connections suitable for demanding environments. The PVC body and ivory color enhance ingress protection, aesthetics, and ease of identification in commercial panels, improving long-term maintenance and replacement planning. Regulatory compliance with cULus Listed, NOM, and Federal Specification 6241 05 reinforces safety, traceability, and procurement confidence for facility upgrades and new construction. This combination of design and compliance translates to lower lifecycle costs and faster project execution in industrial and building automation scenarios.
Get a Quick Quote for a Eaton CSB115STV-SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB115STV-SP?
Enquire Now
FAQs
Install the CSB115STV-SP as a single-pole switch in a panel with flush mounting. Use back and side wiring for #14-10 AWG conductors and secure with screw terminals. Tighten to 14 lbf-in torque and ensure the unit is oriented for easy accessibility and proper insulation within 120/277 V circuits.
The switch is rated for 15A at 120/277 V and is a single-pole device designed for commercial load control. It uses screw terminals and offers reliable operation within its 14 lbf-in torque specification.
The CSB115STV-SP supports a wide range of loads, including LED, MLV, Fan, Halogen, Incandescent, CFL, ELV, and general Motor Control, enabling a single switch to manage diverse lighting and equipment in commercial environments.
This switch is cULus Listed and NOM certified, with Federal Specification Classification 6241 05, ensuring regulatory compliance for safe use in commercial installations.
Favor flush mounting to maximize panel density, use back and side wiring with #14-10 AWG conductors, and tighten terminals to 14 lbf-in. The brass terminal enclosure and durable PVC body resist corrosion, supporting long service life in demanding environments.
