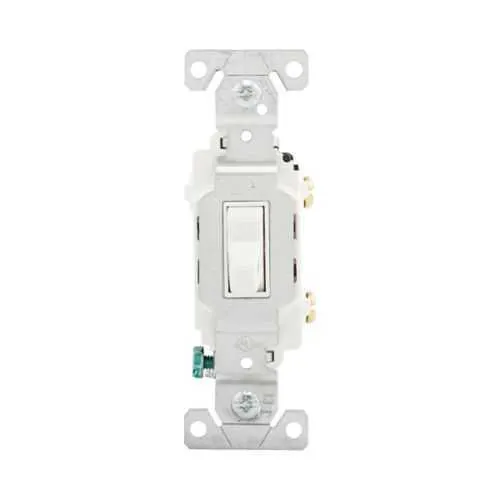

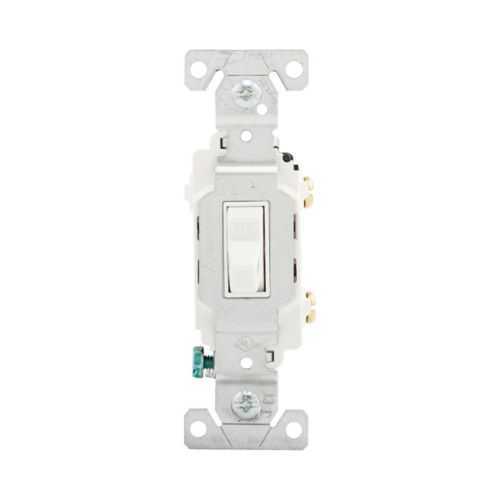

Eaton CSB115W Toggle Switch - cULus Listed 6241 05
Part Number: CSB115W
Quick Summary
Eaton CSB115W commercial-grade toggle switch provides reliable on-off control for commercial panel wiring. This design addresses the common challenge of fitting a robust switch into limited spaces while accommodating diverse loads. The unit is cULus listed with NOM and Federal Specification Classification 6241 05, underscoring safety and compliance in North American installations. Built for durability in commercial environments, it supports 120/277V operation at 15A and offers flush mounting with back and side wiring. For engineers and procurement teams, this translates to reduced field adjustments, faster panel builds, and consistent performance across lighting, motor control, and process loads.
Product Information
Extended Description
CSB115W Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Back and side, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB115W
UPC
032664558900
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Back and side
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
Motor Control INC Fan CFL HAL LED ELV MLV FLR
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Terminals
0.031 in
Color
White
Feature → Business Impact → Application: The CSB115W is rated at 15A and 120/277V, enabling reliable control of common commercial loads such as lighting and small motors, reducing nuisance trips and downtime. This translates to improved system uptime and fewer field service calls in retail, offices, and light industrial environments. Application focus includes single-pole control in flush-mounted panels with back and side wiring for quick, secure installations and compliant wiring practices. Feature → Business Impact → Application: The device uses back and side wiring with screw terminals and accepts #14-10 AWG conductors, delivering a strong, vibration-resistant connection that minimizes wiring faults in busy electrical rooms and on service panels. Application includes motor control, fan, and LED/ELV/MLV loads to simplify panel design and stocking.
Get a Quick Quote for a Eaton CSB115W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB115W?
Enquire Now
FAQs
Yes. The CSB115W is designed for back- and side-wiring with standard screw terminals and accepts #14-10 AWG conductors. Its flush-mount profile and brass terminal enclosure provide a secure, space-efficient installation suitable for commercial panels and control enclosures.
The switch is rated 15A at 120/277V and supports a wide load set including Motor Control, Fan, LED, CFL, Halogen, ELV, MLV, and FLR loads. Its single-pole configuration makes it ideal for general lighting and small motor control applications in commercial spaces.
CSB115W carries cULus Listed and NOM certifications with Federal Specification Classification 6241 05. These listings indicate compliance with safety, performance, and regulatory standards in the US and Canada, reducing compliance risk for installers and integrators in commercial projects.
Install with flush mounting in the intended enclosure, use back- and side-wiring with #14-10 AWG conductors, and secure connections with brass terminals rated for 0.031 inch contact points. The result is a durable, vibration-resistant connection that minimizes field faults in busy electrical rooms.
With commercial-grade construction and reliable 15A, 120/277V performance, the CSB115W reduces replacement frequency and field service, streamlining maintenance. Standardized Eaton components simplify stocking and procurement, improving installation consistency and reducing total cost of ownership in HVAC, lighting, and process-control applications.
