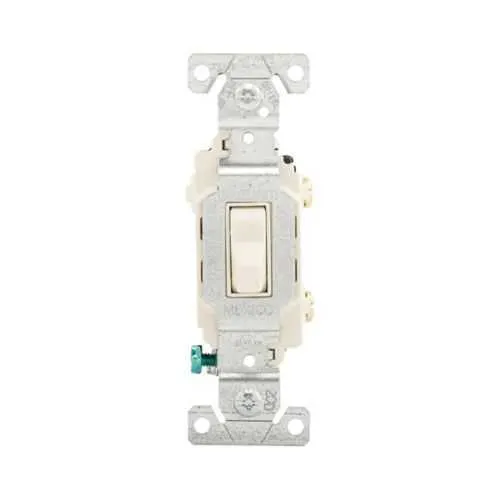

Eaton CSB120LA Toggle Switch - cULus 20A 120/277V
Part Number: CSB120LA
Quick Summary
Eaton CSB120LA toggle switch provides reliable actuation for commercial lighting and motor control circuits. In busy electrical panels, compatibility and fast installation can become bottlenecks, delaying projects. This device carries cULus Listed, NOM, and Federal Specification Classification 6241 05 certifications, ensuring safety and regulatory compliance in North American deployments. Engineered for flush mounting with back and side wiring, it supports #14-10 AWG conductors and a 120/277 V rating. The 20 A, single-pole design delivers predictable control for lighting, fans, and small motors, reducing wiring errors and service calls. With a compact footprint and durable brass terminals, this switch offers reliable performance in commercial applications while streamlining procurement and maintenance across facilities.
Product Information
Extended Description
CSB120LA Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Flush, 120/277V, Back and side, Screw, Light almond, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB120LA
UPC
032664719042
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Back and side
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
INC CFL Motor Control FLR Fan HAL MLV ELV LED
Material
PVC
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Light almond
Feature: 20 A, 120/277 V rating provides ample headroom for common commercial loads. Benefit: Improves reliability and reduces the risk of nuisance trips during peak demand. Application: Suitable for lighting circuits, small motors, and fan control in offices and retail spaces. Feature: Back and side wiring accepts #14-10 AWG conductors. Benefit: Eases field connections and speeds retrofit or new installations, minimizing labor costs. Application: Ideal for retrofit projects and new commercial builds where wiring flexibility matters. Feature: Flush mounting with a single-pole design. Benefit: Clean, low-profile appearance and straightforward wiring for dense enclosures, saving panel space. Application: Wall panels, control boxes, and distribution enclosures in commercial facilities. Feature: Brass terminal enclosure and 0.031 in terminals secured with screws. Benefit: Robust contact integrity and long service life under vibration and thermal cycling. Application: Environments with routine starting/stopping of lights and small loads. Feature: Load type compatibility includes INC, CFL, LED, Motor Control, ELV, MLV, Fan, Halogen. Benefit: Broad compatibility reduces parts diversity and procurement complexity. Application: Industrial and commercial lighting, HVAC fans, and auxiliary equipment. Feature: 14 lbf-inch torque rating. Benefit: Consistent actuation force, reducing wear and extending switch life. Application: Frequent switching scenarios in service corridors and mechanical rooms.
Get a Quick Quote for a Eaton CSB120LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB120LA?
Enquire Now
FAQs
The CSB120LA supports #14-10 AWG conductors with back and side wiring and a 14 lbf-in torque specification for the terminals. Start by de-energizing the panel, then prepare the conductors, secure them under the brass terminals with the screw connectors, and tighten to the recommended torque. Mount flush in the enclosure, verify the pole configuration is single-pole, and test with a low-voltage test sequence before full load energization.
Yes. The CSB120LA is rated 20A and 120/277V with a single-pole design and a broad load type support that includes incandescent, CFL, LED, as well as motor control and fan applications. This makes it well-suited for commercial lighting circuits and small motor loads in offices, retail, and similar settings, reducing the need for multiple switch types.
The CSB120LA carries cULus Listed and NOM certifications, along with Federal Specification Classification 6241 05. These marks validate safety performance, reliability, and regulatory compliance for commercial electrical installations in North American environments.
The switch features a flush-mount design with dimensions approximately 1.3 in depth, 4.2 in height, and 0.902 in width. It is color-matched light almond and uses brass terminals with screw connectors for secure wiring. Mounting is designed for flush installation in standard electrical boxes or panels, optimizing space in crowded enclosures.
Choosing the CSB120LA offers reliability and regulatory confidence with cULus and NOM certifications, reducing downtime and compliance risk. Its 20A rating, broad load compatibility, and back/side wiring streamline installation, lowering labor costs. The durable construction and compact footprint support long service life, fewer replacements, and standardized components across facilities, improving maintenance efficiency and procurement simplicity.
