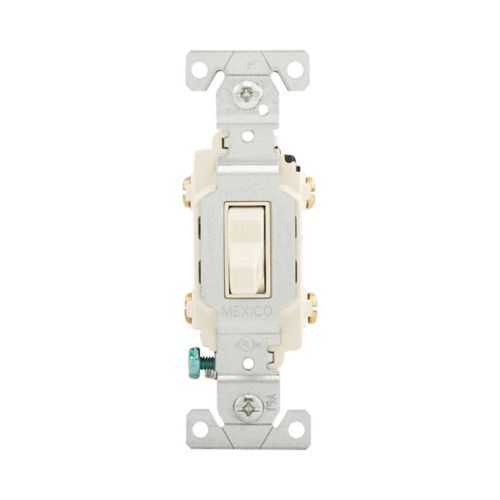

Eaton CSB215LA Toggle Switch - cULus Listed 120/277V
Part Number: CSB215LA
Quick Summary
Eaton CSB215LA Toggle Switch is a commercial-grade control device designed for panel-mounted applications such as lighting, fans, and motor loads. It delivers reliable switching performance while minimizing maintenance downtime in busy facilities. The switch carries cULus Listed, NOM, and Federal Specification Classification 6241 05 certifications, underscoring safety and regulatory compliance in electrical panels. With back-and-side wiring, flush mounting, and screw terminals, it simplifies installation and inventory management. This combination supports robust, long-term operation across HVAC, lighting, and automation control environments, delivering value through reliability and ease of service.
Product Information
Extended Description
CSB215LA Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Back and side, Screw, Light almond, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole,Dual-pole,Brass,PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB215LA
UPC
032664719066
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.16 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Two-pole
Application
Commercial
Wiring method
Back and side
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Load type
HAL MLV LED Fan ELV FLR INC Motor Control CFL
Material
PVC
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Light almond
Feature: Two-pole design and 15A rating support commercial-grade control for multi-load circuits. Business Impact: Enables safe switching of lighting, motors, and auxiliary loads with reduced contact wear and longer service life. Application: Ideal for commercial panels, motor-control centers, and HVAC control zones where consistent performance matters. Feature: Back and side wiring with screw terminals simplifies field wiring. Business Impact: Reduces wiring errors, speeds up installation, and lowers labor costs during panel upgrades. Application: Suitable for retrofit projects and new builds in manufacturing and facilities management. Feature: Flush mounting and compact footprint (1.3 in depth x 4.2 in height x 0.902 in width) save panel space. Business Impact: Better fit in dense enclosures, easier wiring routing, and improved aesthetics. Application: Control panels with tight packaging or modular layouts. Feature: Broad load type compatibility (HAL, MLV, LED, Fan, ELV, CFL, Incandescent, Motor Control). Business Impact: Reduces the need for stocking multiple switch types, improving procurement efficiency and spare-part resilience. Application: Lighting and equipment controls across commercial and industrial settings. Feature: Brass terminal enclosure and PVC body with #14–10 AWG wiring compatibility. Business Impact: Durable, corrosion-resistant construction supports long service life in challenging environments. Application: Industrial facilities, commercial buildings, and retrofit projects requiring reliable terminations. Feature: Certifications including cULus Listed, NOM, and Federal Specification 6241 05. Business Impact: Ensures compliance with key safety and federal standards, streamlining qualification for regulated installations. Application: Regulated electrical installations across facilities with strict compliance requirements.
Get a Quick Quote for a Eaton CSB215LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB215LA?
Enquire Now
FAQs
Yes. The CSB215LA supports back-and-side wiring with screw terminals, enabling secure terminations for #14–10 AWG conductors. This configuration simplifies field wiring in dense panels and reduces termination errors. The 15A rating at 120/277V makes it suitable for a wide range of commercial and light-industrial applications, including motor-control and lighting circuits.
The CSB215LA is a two-pole toggle switch rated for 15A at 120/277V. It supports various load types, including HAL, MLV, LED, Fan, ELV, CFL, Incandescent, and Motor Control. This broad compatibility makes it ideal for commercial lighting, HVAC equipment, and general-purpose motor control within panelboards and control cabinets.
The CSB215LA carries cULus Listed, NOM, and Federal Specification Classification 6241 05 certifications. These endorsements confirm compliance with recognized safety and performance standards, facilitating code-compliant installations in North American commercial and industrial environments and easing procurement for regulated projects.
The switch is designed for flush mounting with a compact footprint: 1.3 inches in depth, 4.2 inches in height, and 0.902 inches in width. It uses screw terminals and Brass terminal enclosure material, with load-conducting paths suitable for #14–10 AWG conductors, and comes in a light almond color to blend with standard panel aesthetics.
Official Eaton specification sheets for CSB215LA are available on Eaton’s website. You can access the standard Commercial Grade Switches spec sheet and the detailed CSB215LA datasheet via the provided Eaton PDF links, which cover electrical characteristics, wiring, installation guidelines, and compliance information.
