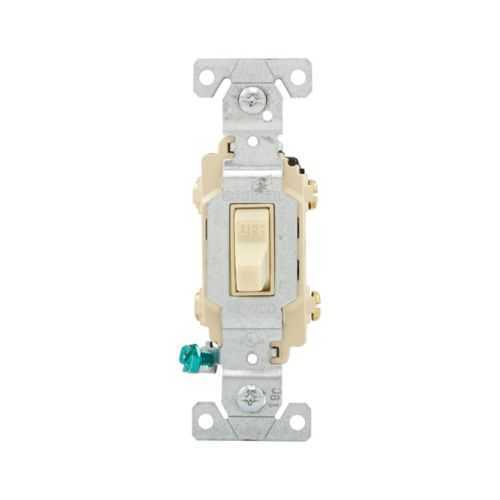

Eaton CSB220V Toggle Switch - cULus Listed NOM
Part Number: CSB220V
Quick Summary
Eaton CSB220V toggle switch is a commercial-grade control device designed for reliable two-pole switching in industrial and light-commercial circuits. Facilities engineers often wrestle with wiring flexibility, mounting fit, and durability under daily on/off cycling. This device carries cULus Listed and NOM certifications, with a 120/277 V rating, 20 A capacity, and back-and-side wiring for easy installations. By aligning with commercial-grade standards, it reduces installation time and maintenance cost, while compatible with a wide range of loads including motor control, LED, and CFL lighting.
Product Information
Extended Description
CSB220V Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Flush, 120/277V, Back and side, Screw, Ivory, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Double-Pole, Dual-pole, Brass, PVC
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB220V
UPC
032664559099
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.168 lb
Certifications
cULus Listed NOM
Type
Toggle switch
Amperage Rating
20A
Voltage rating
120/277 V
Number Of Poles
Two-pole
Application
Commercial
Wiring method
Back and side
Switch type
Two-pole
Mounting method
Flush
Connector type
Screw
Load type
MLV CFL HAL ELV INC Fan LED Motor Control FLR
Material
PVC
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Ivory
Feature: 20 A, 120/277 V, two-pole design; Business Impact: supports a wide range of loads while keeping panel requirements lean, reducing the number of breakers and simplifying feeder design; Application: ideal for commercial lighting, fan circuits, and motor-control applications in offices and light-industrial environments. Feature: Back and side wiring with screw terminals; Business Impact: easier field termination and flexible routing, lowering install time and error rates; Application: retrofit and new-construction where space and wiring access vary. Feature: Flush mounting and ivory color with brass terminals; Business Impact: clean, professional installation with corrosion-resistant materials that endure daily cycling; Application: wall and device-box installations in manufacturing facilities and facilities management. Feature: Load-type compatibility across MLV, CFL, HAL, ELV, INC, LED, Motor Control; Business Impact: single switch supports diverse loads, reducing part counts and inventory; Application: multi-load control in commercial lighting and small-motor circuits. Feature: Certifications cULus Listed and NOM; Business Impact: regulatory alignment minimizes compliance risk and streamlines procurement; Application: project scopes requiring recognized electrical safety standards.
Get a Quick Quote for a Eaton CSB220V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB220V?
Enquire Now
FAQs
Yes. The CSB220V is designed for back- and side wiring with screw terminals and flush mounting, enabling straightforward installation in standard electrical boxes found in commercial and light-industrial spaces. This flexibility helps electricians accommodate legacy wiring while maintaining a clean, professional appearance and reliable electrical connections.
The switch supports a wide range of loads including motor control, fans, LED, CFL, HAL, ELV, and INC lighting. With a 20 A rating at 120/277 V and two poles, it manages diverse circuits from lighting to small motors, reducing the need for multiple controllers and simplifying panel design.
CSB220V carries cULus Listed and NOM certifications. These approvals indicate compliance with recognized safety and performance standards, helping buyers meet regulatory requirements in North America and Mexico. This reduces risk during audits and supports procurement against formal project specifications.
Installers should plan for flush mounting in compatible enclosures and use brass terminals with the specified torque of 14 in-lbf. The device’s back- and side-wiring capability facilitates neat terminations, while the ivory finish provides clear visibility in switch panels, aiding future maintenance and replacement.
Using a durable, commercial-grade toggle switch like CSB220V reduces frequent part replacements and maintenance visits due to its robust construction and broad load compatibility. This can translate to lower lifecycle costs, faster commissioning, and predictable performance across lighting and small motor circuits in campuses, offices, and factories.
