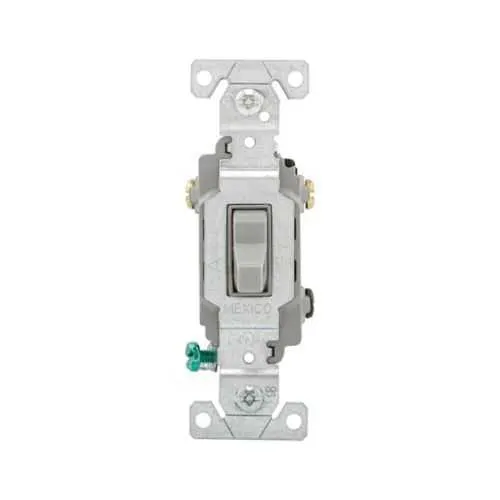

Eaton CSB315GY Toggle Switch - cULus Listed
Part Number: CSB315GY
Quick Summary
The Eaton CSB315GY toggle switch is a commercial-grade control device designed for wall-mounted circuits in commercial facilities. Engineers often grapple with wiring compatibility and reliability when upgrading office, retail, or industrial spaces, but this model offers robust terminals and versatile wiring. It carries cULus listing along with NOM and Federal Specification Classification 6241 05, reinforcing regulatory compliance across markets. With a 15A, 120/277V rating and three-way capability, it delivers dependable control while simplifying installation and ongoing maintenance. Designed for back and side wiring on #14-10 AWG conductors, it aligns with standard commercial schematics and reduces retrofit costs through straightforward mounting and durable brass terminals.
Product Information
Extended Description
CSB315GY Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Wall, 120/277V, Back and side, Screw, Gray, Three-Way, Brass, Terminals: 0.031 in
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB315GY
UPC
032664558993
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Back and side
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Material
PVC
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Gray
Feature: 15A at 120/277V with three-way capability → Business Impact: Supports common commercial loads and versatile control configurations, reducing the number of different switch types required in a facility → Application: Office, retail, and facility electrical distributions. Feature: Back and side wiring with screw terminals, 0.031 in terminals, Brass terminal enclosure → Business Impact: Secure, quick wiring and durable connections that resist loosening over time → Application: Wall-mounted installations with frequent cycling and maintenance access. Feature: PVC body with Gray finish, 1.3 in depth, 4.2 in height, 0.902 in width, weight 0.22 lb → Business Impact: Lightweight, compact form factor that fits standard wall cuts and minimizes retrofit downtime → Application: Commercial office and store environments where space is at a premium. Feature: Three-way switch, Single-pole capable design, Backed by cULus NOM and Federal Specification 6241 05 → Business Impact: Regulatory compliance supports audit readiness and reduces project risk → Application: Any commercial installation requiring compliant, versatile switching. Feature: Material and terminals (Brass; #14-10 AWG) → Business Impact: High-current handling with reliable conductor termination to improve long-term performance and maintenance cycles → Application: Industrial light circuits, HVAC controls, and general purpose branch circuits.
Get a Quick Quote for a Eaton CSB315GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB315GY?
Enquire Now
FAQs
The CSB315GY supports back and side wiring with screw terminals designed for #14-10 AWG conductors. It is a wall-mounted, three-way switch, suitable for single-pole configurations as well. This wiring versatility accelerates installation, accommodates common commercial cable footprints, and minimizes the need for additional adapters in retrofit projects.
This model is rated for 15A at 120/277V and supports three-way operation. It uses back and side wiring with brass terminals and a 0.031 inch terminal size, enabling secure connections for standard commercial wiring methods while maintaining regulatory compliance.
Best suited for commercial environments such as offices, retail spaces, and facilities where reliable wall-mounted control is needed. The 120/277V rating, three-way capability, and commercial-grade construction support frequent switching, easy maintenance, and regulatory compliance across North American installations.
The CSB315GY is cULus listed and also references NOM and Federal Specification Classification 6241 05. These certifications indicate adherence to stringent safety and performance standards, simplifying code compliance, reducing risk during audits, and facilitating acceptance in regulated commercial projects.
Key considerations include its wall-mount design, back and side wiring compatibility, and straightforward screw-terminal connections for #14-10 AWG conductors. The compact 1.3 in depth and Brass terminal enclosure support quick fitment into standard wall boxes, lowering labor time and lifecycle costs for new installations or upgrades.
