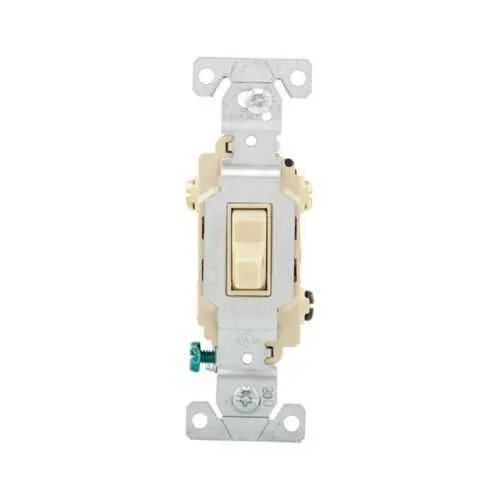

Eaton CSB315V Toggle Switch - cULus Listed
Part Number: CSB315V
Quick Summary
The Eaton CSB315V toggle switch is a commercial-grade control for lighting and circuit management in commercial environments. It helps address wiring compatibility and durability challenges common in wall-mounted installations. Certified for cULus Listing with NOM and Federal Specification Classification 6241 05, this switch meets stringent safety and performance standards. Its 15 A, 120/277 V rating and three-way capability unlock reliable commercial lighting control while simplifying installation. In addition to robust performance, the switch supports back-and-side wiring and wall mounting for flexible, code-compliant deployment. With ivory coloration and brass terminals, it blends with architectural aesthetics while delivering dependable connections. Designed for commercial electricians and specifiers, it reduces rework by offering standardized dimensions and clear terminal sizing.
Product Information
Extended Description
CSB315V Eaton: Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Wall, 120/277V, Back and side, Screw, Ivory, Three-Way, Brass, Terminals: 0.031 in
Product Name
Eaton commercial grade toggle switch
Catalog Number
CSB315V
UPC
032664558979
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
0.902 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification 6241 05
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120/277 V
Number Of Poles
Single-pole
Application
Commercial
Wiring method
Back and side
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Material
PVC
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Brass
Terminals
0.031 in
Color
Ivory
High electrical rating and voltage flexibility drive reliable load control in commercial lighting circuits, reducing nuisance trips and enabling universal compatibility with standard industrial equipment. The CSB315V supports 15 A at 120/277 V, which means fewer devices in parallel and simpler panel planning in offices, retail, and warehouses. Back and side wiring with screw terminals reduces field wiring errors and speeds installation, translating to shorter project timelines and lower labor costs. The three-way toggle capability adds flexible control across multiple locations, improving user convenience and reducing wiring complexity in multi-branch lighting circuits. Compact dimensions and wall mounting enable space-efficient installations and standard fitting across panels, minimizing customization needs. Durable PVC construction with brass terminals enhances corrosion resistance and long-term reliability in commercial environments, lowering maintenance intervals. Certifications, including cULus Listed and NOM, support fast regulatory approvals and safer field deployments in regulated spaces.
Get a Quick Quote for a Eaton CSB315V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CSB315V?
Enquire Now
FAQs
The CSB315V supports back- and side-wiring with screw terminals, allowing both wire-entry methods on a single device. This provides installation flexibility for commercial lighting circuits and reduces field termination errors. The 15A, 120/277V rating ensures broad compatibility with standard branch circuits, making it suitable for retrofit and new-construction projects in offices and retail spaces.
Yes, the CSB315V is a three-way toggle switch designed for multi-location control in commercial circuits. This capability simplifies wiring in stairwells, hallways, and large rooms by reducing the number of separate devices required. It supports consistent operation across locations while maintaining standard mounting and termination practices to minimize installation time.
The CSB315V is cULus Listed with NOM and Federal Specification Classification 6241 05. These certifications indicate compliance with recognized safety and performance standards, easing regulatory approvals and facilitating code-compliant installations in commercial facilities. Buyers can rely on standardized testing and documented performance for risk management and project approvals.
The CSB315V is designed for wall mounting with compact overall dimensions: approximately 1.3 in in depth, 4.2 in in height, and 0.902 in in width, with a lightweight 0.2 lb body. Its ivory color and brass terminals provide a practical aesthetic and durable electrical connections in constrained wall cavities and standard switch plates.
The CSB315V delivers ROI through reliable, long-term performance with durable PVC construction and brass terminals that resist wear and corrosion. The back- and side-wiring options speed installation and future troubleshooting, while its standardized dimensions reduce rework and spare-part requirements. Overall, facilities benefit from reduced downtime, faster commissioning, and predictable lifecycle costs.
