Eaton CT-SP-200R-150-5 Current Sensor - UL Recognized
Part Number: CT-SP-200R-150-5
Quick Summary
The Eaton CT-SP-200R-150-5 current sensor provides precise 5 A output for panel metering and circuit monitoring. Engineers often wrestle with obtaining accurate load data and selecting a current transformer that fits retrofits without taking lines offline. UL Recognized and CSA Certified ensures safety and regulatory compliance in industrial panels. This model supports easy integration with Eaton metering and energy-management solutions, delivering reliable data for protective relays, energy dashboards, and demand-based controls. Its split-core design minimizes field disruption while enabling scalable deployments across facilities.
Product Information
Extended Description

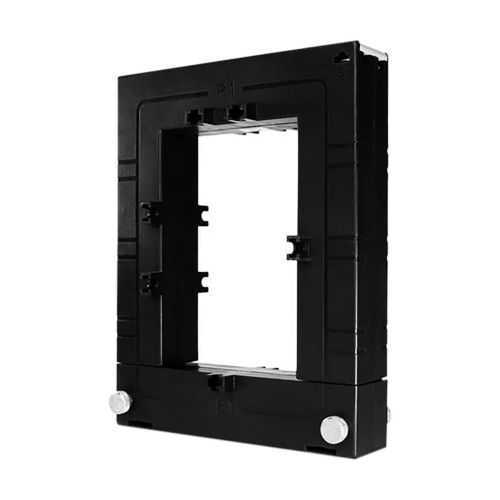

CT-SP-200R-150-5 Eaton: Split Core CT 150A, 2"X2" window
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-200R-150-5
UPC
786689884710
Product Length/Depth
4.4 in
Product Height
1.25 in
Product Width
4.4 in
Product Weight
1.5 lb
Certifications
UL Recognized CSA Certified
Amperage Rating
150A
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
150A
Output Current (Secondary)
5A
Power Systems Experience Center Tour – Metering Focus
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
Amperage rating of 150A primary with a 5A secondary output provides accurate, standard current data for metering and protection. This directly improves energy accounting accuracy and compatibility with standard meters, enabling engineers to rely on a consistent signal for protection relays and energy dashboards. Application-ready for panel metering and distribution monitoring, it reduces measurement uncertainty and supports reliable fault detection. Split-core construction allows technicians to install or upgrade without opening live circuits, shortening project timelines and reducing labor costs. The 2"x2" window accommodates common busbar configurations, enabling quick retrofits in crowded panels with minimal wiring changes. Certifications of UL Recognized and CSA Certified provide compliance confidence for industrial installations and OEM assemblies. With a compact 4.4 in by 4.4 in footprint and a light 1.5 lb weight, mounting is straightforward in tight panel spaces. The 150A primary / 5A secondary spec is widely compatible with Eaton meters and protective relays, ensuring seamless integration into existing energy-management ecosystems.
Get a Quick Quote for a Eaton CT-SP-200R-150-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CT-SP-200R-150-5?
Enquire Now
FAQs
The CT-SP-200R-150-5 uses a split-core design that permits opening the CT around an existing busbar without de-energizing the circuit. Ensure the panel is de-energized per site safety procedures, then place the CT around the conductor, close the core, and route the 5A secondary wiring to your metering or control device. Verify polarity and alignment with the meter's input range for accurate readings.
Yes. The CT-SP-200R-150-5 provides a standard 5A secondary output compatible with Eaton metering modules and most protection relays designed for 5A CT inputs. Its 150A primary rating matches common distribution loads, enabling direct integration into energy management dashboards, SCADA, and relay configurations without custom signal conditioning.
The CT-SP-200R-150-5 is UL Recognized and CSA Certified, signaling adherence to core safety and performance standards for electrical energy measurement devices. These certifications reduce compliance risk in industrial environments, facilitate procurement in regulated projects, and support validation during audits and quality assurance processes.
The transformer has a footprint of 4.4 in length, 4.4 in width, and 1.25 in height, with a weight of 1.5 lb. The 2"x2" window accommodates common busbar configurations, making it suitable for crowded panels. When mounting, ensure clearance for the secondary leads and room for routing to meters or relays, while avoiding close proximity to heat-generating components.
Benefits include faster retrofit times due to the split-core design, reducing labor costs and downtime. The standard 150A/5A specification provides consistent metering signals that improve energy accounting accuracy, lowering misreadings and enabling tighter energy-management controls. Certifications and robust construction also minimize compliance risk and maintenance rework over the device’s lifecycle.
