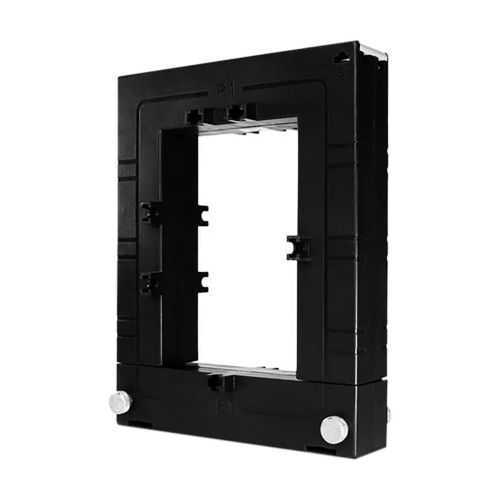

Eaton CT-SP-3147-800-5 Current Sensor - UL Recognized
Part Number: CT-SP-3147-800-5
Quick Summary
The Eaton CT-SP-3147-800-5 current sensor delivers precise 5A output for high-current metering in industrial power systems. When retrofitting or expanding panels, the split-core design minimizes downtime by letting you clamp around existing conductors. The device carries UL Recognized and CSA Certified ratings, helping you meet electrical-code requirements and reliability standards. Its 800A primary and 5A secondary output align with modern energy meters, enabling accurate data for energy management and billing. In addition, compact dimensions and a .6% accuracy ensure dependable performance in demanding manufacturing environments. Engineers will appreciate clear labeling, a 7.28 inch length along with 5.67 inch width and 1.97 inch height for planning enclosures. The combination of UL CSA certifications and Eaton's metering focus supports scalable deployment across facilities.
Product Information
Extended Description
CT-SP-3147-800-5 Eaton: Split Core CT 800A, .6% ACCY, 3.15 x 4.72 inch window
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-3147-800-5
UPC
786689884994
Product Length/Depth
7.28 in
Product Height
1.97 in
Product Width
5.67 in
Product Weight
1.5 lb
Certifications
UL Recognized CSA Certified
Amperage Rating
800A
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
800A
Output Current (Secondary)
5A
Power Systems Experience Center Tour – Metering Focus
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
Split-core design allows tool-free installation around existing conductors, eliminating the need to unwind cables and shut down feeders. This reduces commissioning time and on-site labor costs during retrofit or expansion projects. It is particularly valuable in control panels and meter enclosures where uptime matters. The 800A primary and the 5A secondary output provide compatibility with standard metering electronics while minimizing secondary wiring complexity. This pairing delivers direct signal compatibility with most energy meters and protection relays, enabling rapid integration into new or existing electrical systems. With .6% accuracy, the CT-SP-3147-800-5 delivers reliable measurement data even under transient loads. This improves energy accounting, power quality analysis, and billing accuracy for industrial facilities. The generous 3.15 x 4.72 inch window accommodates standard bus bars and conductor configurations, simplifying retrofits in tight spaces. UL Recognized and CSA Certified ratings streamline compliance for panel builders and integrators. These certifications support qualified procurement and reduce risk during audits. With a compact footprint—7.28 inches long, 5.67 inches wide, 1.97 inches tall—and a light 1.5 lb weight, the sensor fits into crowded enclosures without thermal concerns. The robust construction supports reliable operation in harsh industrial environments.
Get a Quick Quote for a Eaton CT-SP-3147-800-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CT-SP-3147-800-5?
Enquire Now
FAQs
The CT-SP-3147-800-5 uses a split-core design that clamps around live conductors, avoiding the need to disconnect circuits. Begin by verifying the enclosure clearance and window size of 3.15 x 4.72 inches to ensure a proper fit. Mount the unit, secure the CT, and connect the secondary to the metering or protection input. After installation, re-energize and validate the 5A secondary output against the primary load for accurate readings.
Key specs include an 800A primary rating with a 5A secondary output, and a stated accuracy of 0.6% (ACCY). The device is a split-core current transformer, with a window of 3.15 x 4.72 inches. It’s UL Recognized and CSA Certified, ensuring compliance. These figures guide integration with energy meters, relays, and control devices in low-voltage distributions.
Yes. The 800A primary and 5A secondary output are compatible with common metering electronics used in manufacturing, enabling precise energy accounting and submetering. The .6% accuracy supports reliable power quality analysis and billing accuracy, while the split-core design reduces downtime during plant retrofits. Its compact dimensions aid in installations where space is limited.
The sensor is UL Recognized and CSA Certified, which simplifies supplier qualification and regulatory compliance for panel builders and integrators. These certifications reduce audit risk and help meet electrical-code requirements in many regions. For modules in building automation or energy distribution, certifications streamline procurement and increase confidence in long-term reliability.
The CT-SP-3147-800-5 has no moving parts, offering low maintenance in demanding environments. Plan for periodic verification of wiring integrity, mounting torque, and enclosure ventilation to manage heat in dense installations. Its robust build and 1.5 lb weight support durable operation, while the 7.28 in L x 5.67 in W x 1.97 in H form factor simplifies replacement and future scalability.
