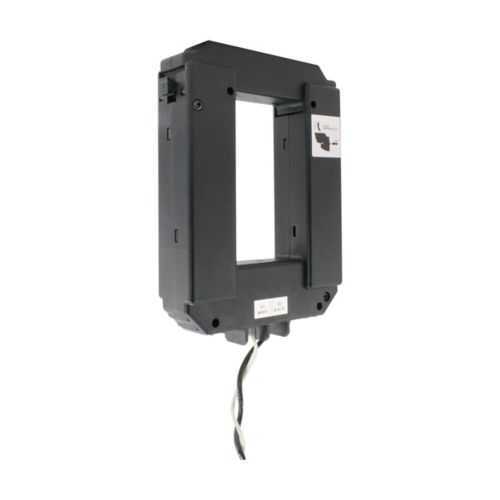

Eaton CT-SP-5-1000-5A Split Core Transformer - ANSI/IEEE C12.20
Part Number: CT-SP-5-1000-5A
Quick Summary
Eaton CT-SP-5-1000-5A split-core current transformer provides a precise 5 A secondary for high-current monitoring. Retrofits can be bulky, with wiring complexity and meter drift complicating maintenance. This device carries ANSI/IEEE C12.20 certification and RoHS compliance, ensuring reliability in industrial environments. It also supports wide power management strategies in panels and metering projects, delivering accurate data and streamlined procurement for engineers and procurement teams. Its rugged design stands up to harsh industrial environments and reduces commissioning time in new builds or retrofits. With a 600 V input rating, it easily integrates into standard electrical systems while maintaining measurement integrity across a wide temperature range.
Product Information
Extended Description
CT-SP-5-1000-5A Eaton: Split-core Current Transformer 1000/5A, 0.5% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-5 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-5-1000-5A
UPC
786685873503
Product Length/Depth
4.37 in
Product Height
5.83 in
Product Width
1.24 in
Product Weight
1.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
4.50 Burden VA ±0.5%
Special features
4.50 Burden VA ±0.5%
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
1000A
Window size
3.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
0.50%
Input voltage
600 V
Number of wires
2
Series
CT-SP-5
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - CT-SP-5-1000-5A
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
Selling Policy 25-000 - Distribution and Control Products and Services
Split-core construction lets technicians clamp the sensor around an existing conductor without disconnecting power, cutting commissioning time and minimizing shutdown windows. This design reduces field wiring errors and improves installation safety. In practice, it speeds meter retrofits in switchgear and distribution panels, letting energy teams capture real-time current data with minimal system interruption. Primary rating of 1000A paired with a 5A secondary output delivers a robust measurement signal for metering and protection relays. The 0.50% accuracy specification reduces drift over time, supporting accurate billing and energy analytics across quarterly audits. In industrial facilities with high load variability, this precision translates to meaningful cost visibility and better demand management. Burden specification of 4.50 VA ±0.5% ensures the CT does not overly load downstream meters and controllers. This makes it compatible with common metering inputs and minimizes readout errors. For engineers, the predictable burden improves calibration confidence during commissioning and ongoing maintenance in power management systems. Operating range of -10°C to 60°C and RoHS / ANSI/IEEE C12.20 compliance provide reliability in harsh environments. The compact footprint (4.37 in x 1.24 in x 5.83 in) and 1.7 lb weight simplify enclosure planning and mounting in tight spaces. This is particularly valuable for retrofit projects where space is at a premium and regulatory adherence matters. Warranty and support from Eaton add long-term value. A one-year limited warranty from installation (or 18 months from shipment) reduces risk, while the included documentation and datasheets streamline troubleshooting and spare-parts planning.
Get a Quick Quote for a Eaton CT-SP-5-1000-5A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CT-SP-5-1000-5A?
Enquire Now
FAQs
To install the CT-SP-5-1000-5A, open the split core, place it around the target conductor, and snap the core shut. Verify the conductors are clean and within the 600 V rating, then align the window and secure the unit in a suitable panel location. Its compact 4.37 in length and 1.24 in width fit narrow enclosures.
Key performance specs include a 1000 A primary rating with a 5 A secondary output and 0.50% accuracy. The 4.50 burden VA ±0.5% specification ensures readings stay stable under typical meter loads. This CT is designed for systems up to 600 V, enabling precise metering and energy management.
Yes, the CT-SP-5-1000-5A is well suited for energy metering in motor control centers and distribution panels. Its split-core design supports non-disruptive retrofits, and the 5 A secondary is compatible with common metering inputs. With RoHS compliance and ANSI/IEEE C12.20 certification, it delivers reliable measurements in industrial environments from -10°C to 60°C.
The CT-SP-5-1000-5A carries ANSI/IEEE Std C12.20 certification and RoHS compliance, meeting metering and environmental standards for global installations. These certifications reduce compliance risk during audits and simplify procurement for regulated industries. The device operates from -10°C to 60°C and handles up to 600 V, ensuring dependable performance in industrial panels. Premium insulation and Eaton warranty reinforce uptime.
The product includes Eaton’s one-year limited warranty from installation or 18 months from shipment. The split-core design minimizes service time during retrofits, lowering labor costs, while reliable 0.50% accuracy reduces meter drift, improving billing accuracy and energy analytics. Long-term ROI comes from faster commissioning and fewer outages in critical power paths.
