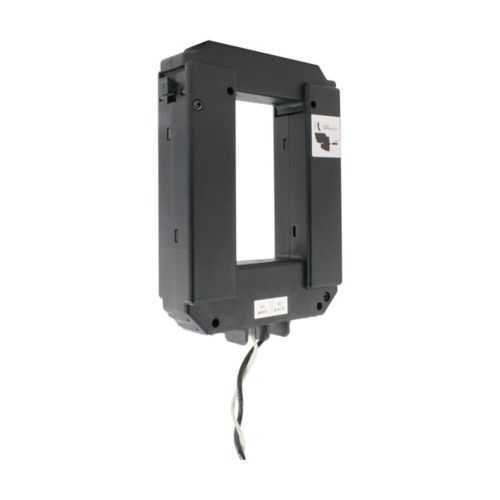

Eaton CT-SP-5-600-5A Split Core Current Sensor - ANSI/IEEE Std C12.20
Part Number: CT-SP-5-600-5A
Quick Summary
Split-core current sensor, the Eaton CT-SP-5-600-5A, measures high-current loads for panel metering and protective relays. When field installations require minimizing service interruptions, the split-core design and quick mounting reduce downtime and wiring complexity. This device carries RoHS compliance and ANSI/IEEE Std C12.20 certification, underscoring reliability and metering accuracy in demanding electrical environments. With 600 V input and a 5 A secondary, it supports precise energy monitoring and protection, helping engineers optimize power management while lowering operating costs. Designed for industrial power distribution, it delivers a balance of accuracy, practicality, and compliance across a range of metering and control applications.
Product Information
Extended Description
CT-SP-5-600-5A Eaton: Eaton CT-SP-5 series split-core current transformer ,600/5A, 0.5% accuracy, Input: 600V, 2, Operating: -10°C to 60°C, 5A, CT-SP-5 series
Product Name
Eaton 5A split core current sensor
Catalog Number
CT-SP-5-600-5A
UPC
786685873480
Product Length/Depth
4.37 in
Product Height
5.83 in
Product Width
1.24 in
Product Weight
1.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
RoHS Compliant
Certifications
ANSI/IEEE Std C12.20
Catalog Notes
2.75 Burden VA ±0.5%
Special features
2.75 Burden VA ±0.5%
Operating Temperature
-10° to 60°C
Quantity
1
Current transformer type
Split Core
Application current (primary rating)
600A
Window size
3.50" x 2.00"
Output Current (Secondary)
5A
Output
5 A
Accuracy
0.50%
Input voltage
600 V
Number of wires
2
Series
CT-SP-5
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - CT-SP-5-600-5A
5A split (M0) and solid (S0) core current transformers technical data
5A split (M0) and solid (S0) core current transformers technical data
Feature: Split-core design enables tool-free installation without disconnecting the primary conductor. Business impact: minimizes commissioning time and service outages, boosting project throughput in panel retrofits and retrofit metering. Application: suitable for busbars and crowded electrical cabinets where quick insertion is critical. Feature: 600 V input with 5 A secondary provides compatibility with common power meters and control modules. Business impact: reduces adapter needs and integration risk, enabling straightforward metering and monitoring at scale. Application: distribution panels and energy management systems in industrial facilities. Feature: 0.50% accuracy and 2.75 VA burden support precise measurements with manageable load on the metering circuit. Business impact: improves billable energy accuracy, supports regulatory reporting, and lowers measurement error. Application: revenue-grade metering and power quality monitoring. Feature: window size of 3.50 x 2.00 inches fits typical panel cutouts and feeder layouts. Business impact: simplifies installation in restricted spaces and supports compact panel designs. Application: panel builders and retrofit projects. Feature: RoHS compliant and ANSI/IEEE Std C12.20 certified deliver regulatory alignment and supplier reliability. Business impact: eases multi-region deployments and warranty claims while maintaining safety standards. Application: global rollouts and OEM sourcing. Feature: one-year warranty under Eaton policy provides post-sale support. Business impact: reduces procurement risk and supports long-term maintenance planning. Application: asset management and procurement workflows.
Get a Quick Quote for a Eaton CT-SP-5-600-5A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CT-SP-5-600-5A?
Enquire Now
FAQs
CT-SP-5-600-5A uses a split-core design that supports installation around existing conductors without disconnecting power. It fits standard panel and enclosure footprints with a 3.50" x 2.00" window, reducing modification time and enabling quick retrofits in service panels and distribution boards.
The sensor delivers 0.50% accuracy with a burden of 2.75 VA. It provides a 5 A secondary and a 600 V input, making it suitable for precise energy measurement and reliable monitoring in metering applications and power management systems.
Yes. With a 600 V input rating and a 5 A secondary, CT-SP-5-600-5A is designed for metering and protection in low-voltage distribution networks. Its compliance and window size support integration into comprehensive energy-management schemes.
The CT-SP-5-600-5A is RoHS compliant and carries ANSI/IEEE Std C12.20 certification, ensuring measurement reliability and regulatory readiness for industrial metering and protection applications.
Eaton offers a one-year warranty from installation or eighteen months from shipment, whichever occurs first. This reduces ownership risk, supports maintenance budgeting, and provides assurance for long-term asset performance in demanding environments.
